Xerox WorkCentre 5225 Service Manual

February, 2008
5-41
WorkCentre 5225, 5230
PL 11.5
Parts List
Launch Version

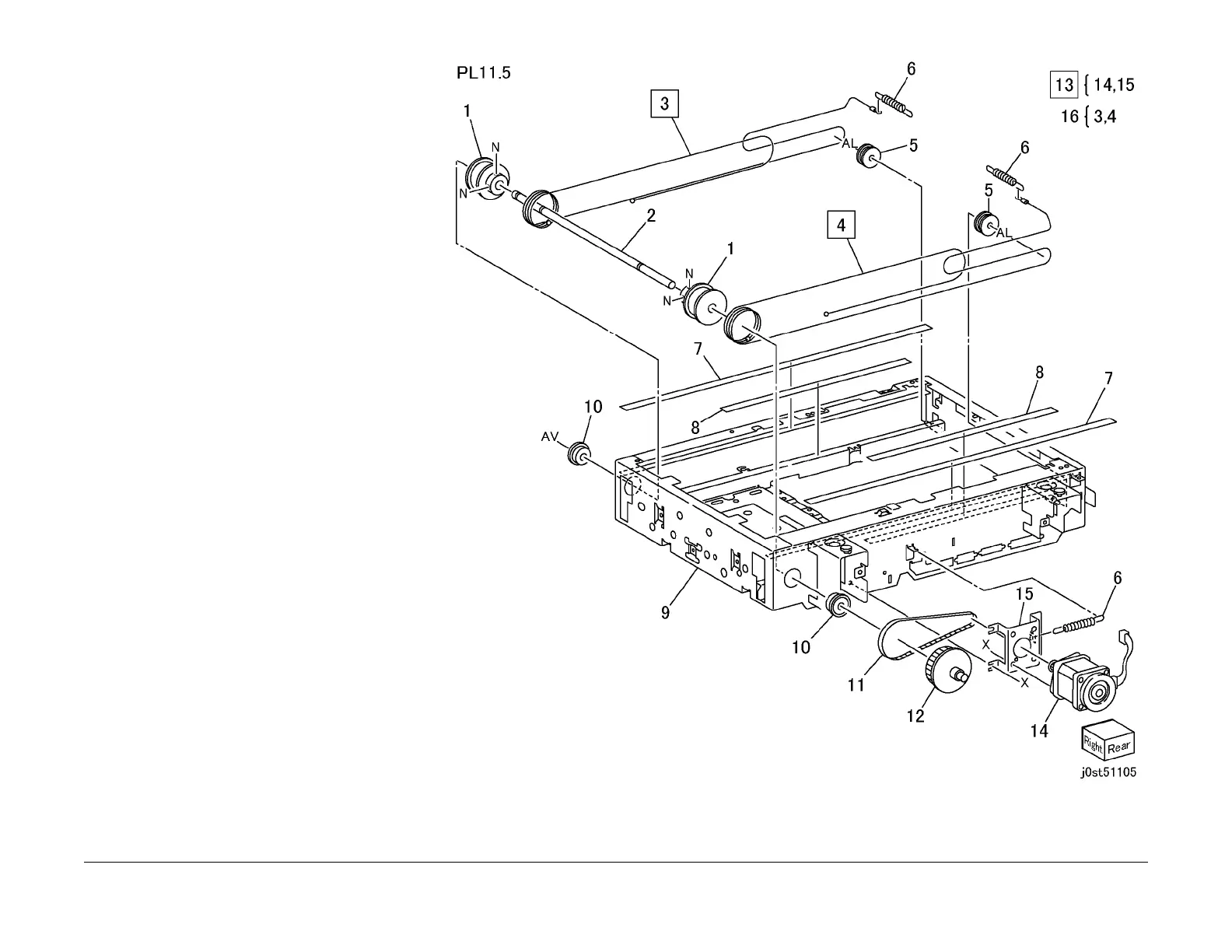

PL 11.5 Carriage Cable/Motor
Item Part Description
1 – Capstan Pulley (P/O PL 11.1 Item
10)
2 – Capstan Shaft (P/O PL 11.1 Item
10)
3 – Front Carriage Cable (P/O PL 11.5
Item 16) (REP 11.5.1)
4 – Rear Carriage Cable (P/O PL 11.5
Item 16) (REP 11.5.1)
5 020E37030 Pulley
6 604K20440 Spring Kit
7 – Tape (P/O PL 11.1 Item 10)
8 – Tape (P/O PL 11.1 Item 10)
9 – Frame (P/O PL 11.1 Item 10)
10 – Bearing (P/O PL 11.1 Item 10)
11 023E21210 Belt
12 – Timing Pulley (P/O PL 11.1 Item 10)
13 127K52340 Carriage Motor Assembly (REP
11.5.2)
14 – Carriage Motor (P/O PL 11.5 Item
13)
15 – Bracket (P/O PL 11.5 Item 13)
16 604K20510 Cable Kit
