WorkCentre 5225, 5230
REP 7.1.1
Repairs and Adjustments
Launch Version
REP 7.1.1 MPT Assembly
Parts List on PL 7.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
To prevent data loss when the power is turned off, please note the following.
[FAX Models]
Check that the “Stored Documents” lamp is not on, and press the Job Status] button to ensure
that there are no jobs in progress.
[Printer Models]
Check that “Ready to Print/Send” is displayed on the Control Panel display.
1. Remove the MPT Rear Cover. (Figure 1)
1.Remove the screw.
2.Remove the MPT Rear Cover.

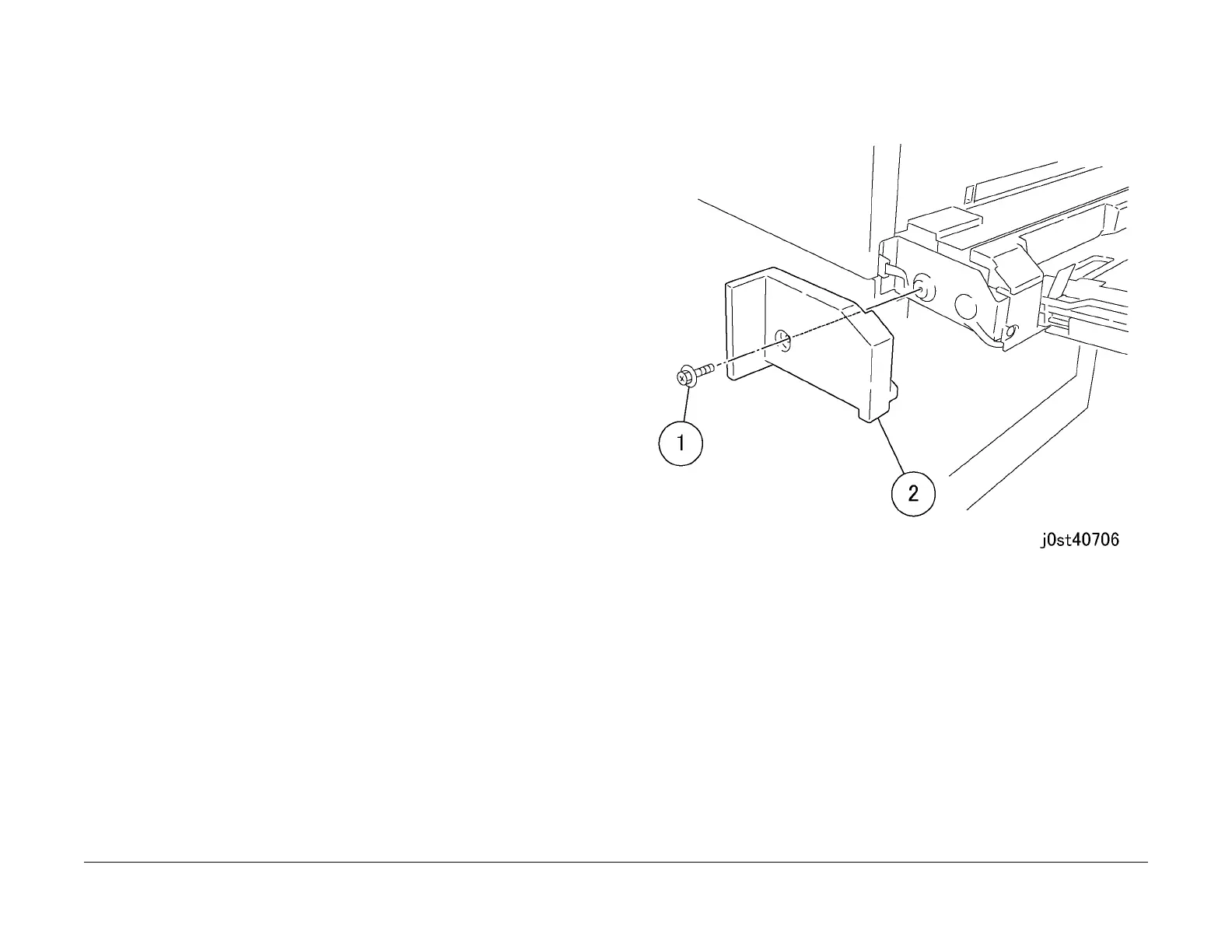

Figure 1 Removing the MPT Rear Cover (j0st40706)
2. Disconnect the connector. (Figure 2)
1.Release the Wire Harness from the clamp.
2.Disconnect connector.
