Xerox WorkCentre 5225 Service Manual

February, 2008
4-132
WorkCentre 5225, 5230
REP 16.1.3, REP 16.1.4
Launch Version
Repairs and Adjustments
REP 16.1.3 H-Transport Belt
Parts List on PL 23.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the H-Transport Assembly (REP 16.1.1)
2. Remove the screws (2) on the H-transport Rear Cover and remove the Cover.
3. Loosen the screws (2) on the Tension Bracket. (Figure 1)
4. Remove the Belt.

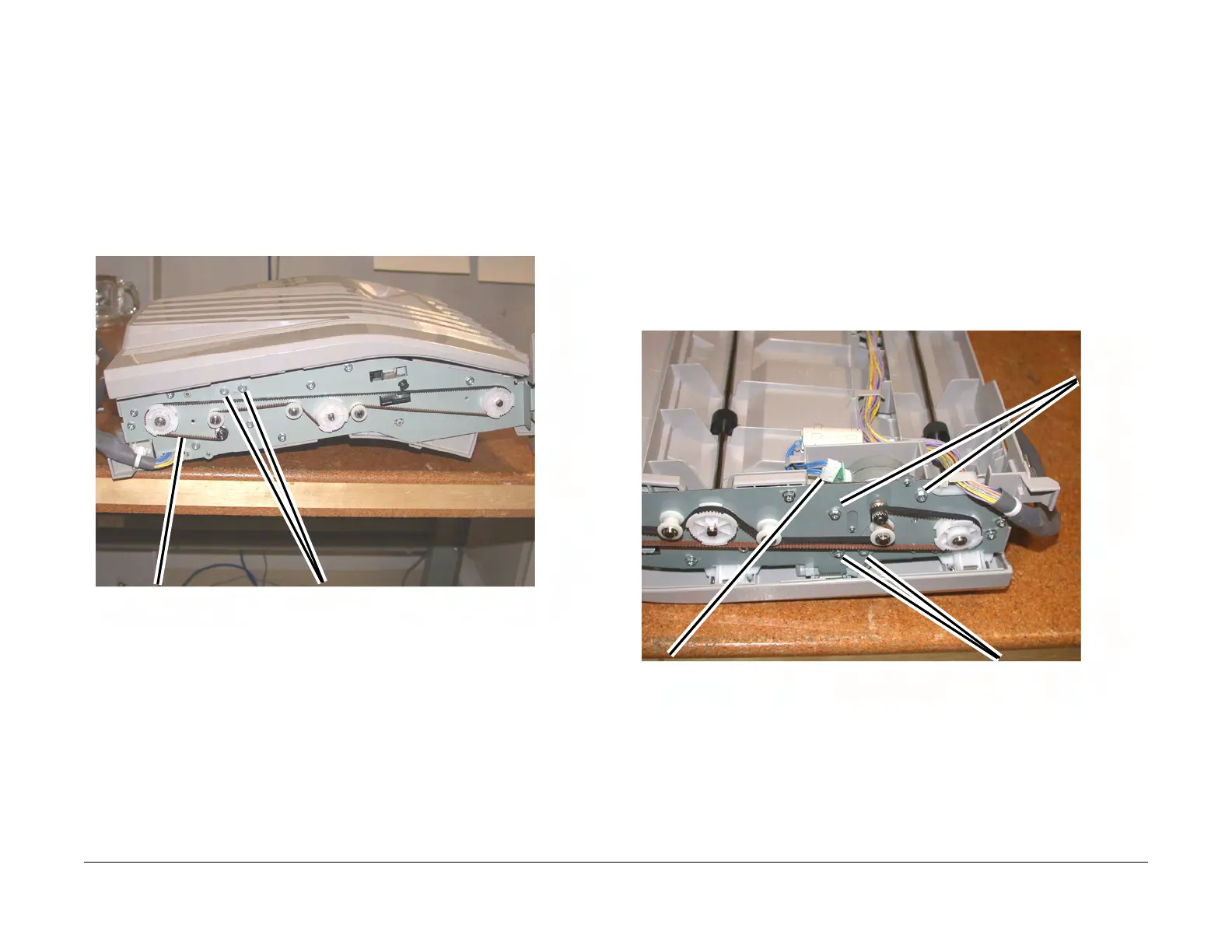

Figure 1 Removing the H-Transport Belt (j0st41664.jpg)
Replacement
Install the H-Transport Belt in reverse order of removal.
REP 16.1.4 H-Transport Motor
Parts List on PL 23.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the H-Transport Assembly. (REP 16.1.1)
2. Remove the H-Transport Rear Cover.
3. Place the H-Transport top down on a work surface.
4. Remove the H-Transport motor. (Figure 1)
a. Loosen the H-Transport Belt Idler Bracket. (REP 16.1.3)
b. Disconnect the Connector.
c. Remove the screws (2).
d. Remove the H-Transport Motor.
Figure 1 Removing the H-Transport Drive Motor (j0st41665.jpg)
Replacement
Replace in reverse order of removal.
1
Loosen the screws (2)
2
Remove the Belt
1
Loosen the screws (2)
2
Disconnect the connector
3
Remove
the
screws
(2) and
remove
the
motor
