Xerox WorkCentre 5225 Service Manual

February, 2008
5-70
WorkCentre 5225, 5230
PL 18.1
Launch Version
Parts List

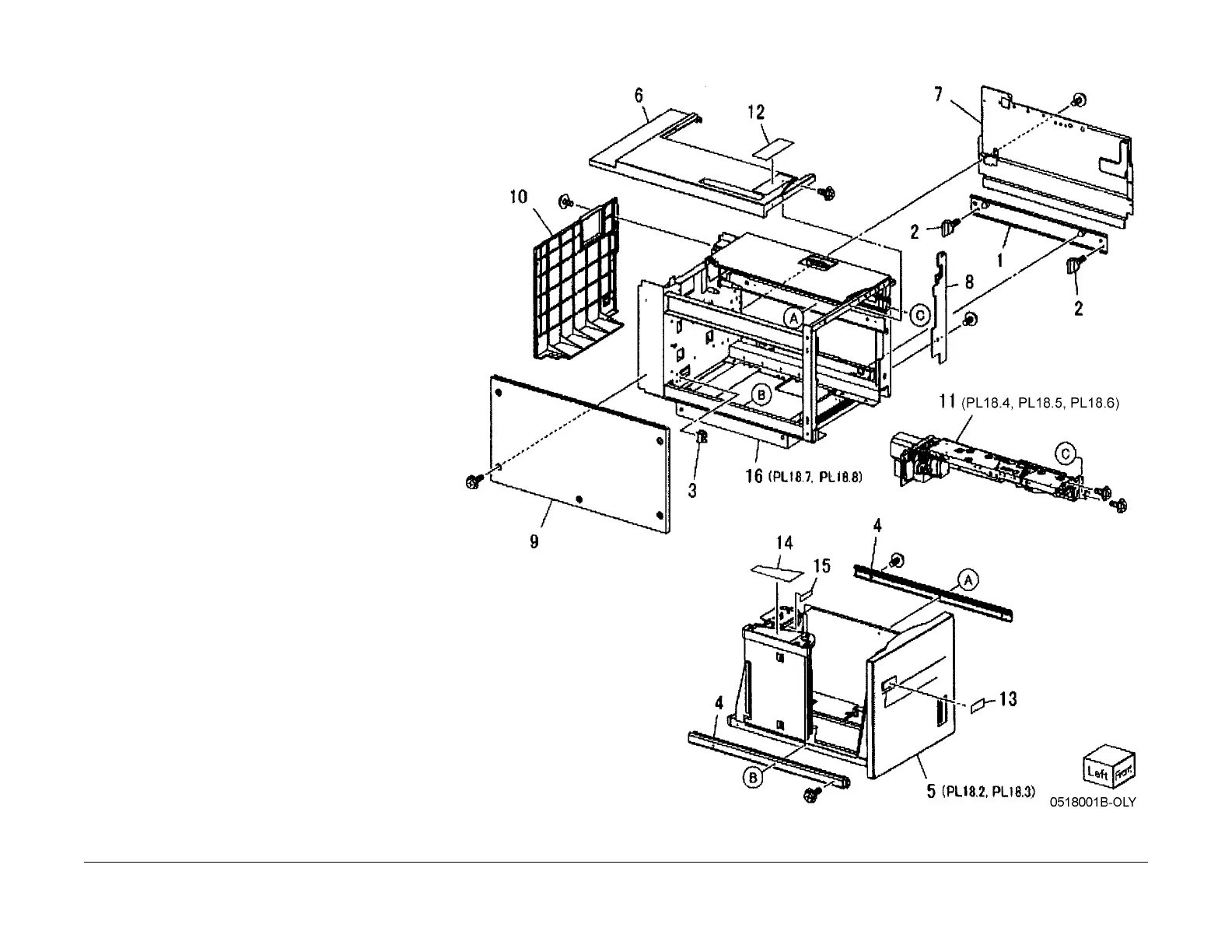

PL 18.1 HCF Unit
Item Part Description
1 – Joint Plate (Not Spared)
2 003K91881 Knob
3 130K55590 HCF Tray Set Sensor
4 801K15700 Tray Rail
5 – HCF Tray 6 (Not Spared) (REP
7.3.1)
6 – Left Top Cover (Not Spared)
7 – Right Cover (Not Spared)
8 – Front Right Cover (Not Spared)
9 – Left Cover (Not Spared)
10 – Rear Cover (Not Spared)
11 – HCF Feeder (Not Spared) (REP
7.3.2)
12 – Label (Top) (Not Spared)
13 – Label (Tray Number) (Not Spared)
14 – Label (Size) (Not Spared)
15 – Label (End) (Not Spared)
16 – Frame Assembly (Not Spared)
