Xerox WorkCentre 5225 Service Manual

February, 2008
5-28
WorkCentre 5225, 5230
PL 7.3
Launch Version
Parts List

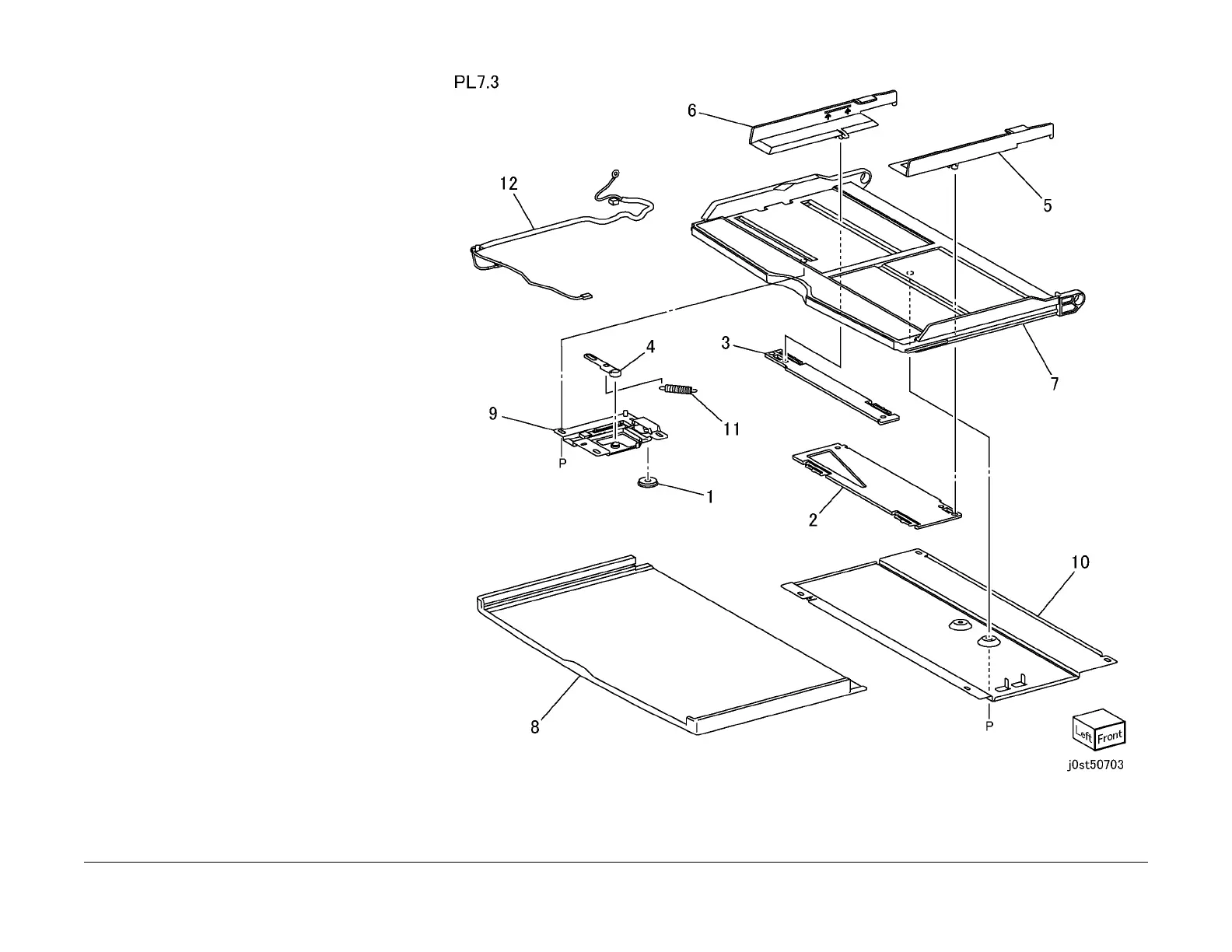

PL 7.3 MSI Tray Assembly
Item Part Description
1 – Pinion Gear (P/O PL 7.1 Item 5)
2 – Front Rack (P/O PL 7.1 Item 5)
3 – Rear Rack (P/O PL 7.1 Item 5)
4 – Link (P/O PL 7.1 Item 5)
5 – Side Guide (P/O PL 7.1 Item 5)
6 – Side Guide (P/O PL 7.1 Item 5)
7 – Tray MPT (P/O PL 7.1 Item 5)
8 – Tray Exit (P/O PL 7.1 Item 5)
9 – MPT Paper Size Sensor (P/O PL
7.1 Item 5)
10 – Cover Tray (P/O PL 7.1 Item 5)
11 – Spring (P/O PL 7.1 Item 5)
12 – Wire Harness (P/O PL 7.1 Item 5)
