February, 2008
4-179
WorkCentre 5225, 5230
REP 22.3.2, REP 22.4.1
Repairs and Adjustments
Launch Version
Replacement
1. Reverse the removal procedure for replacement.
2. Install the Sub Paddle Assembly as shown in the figure. (Figure 5)

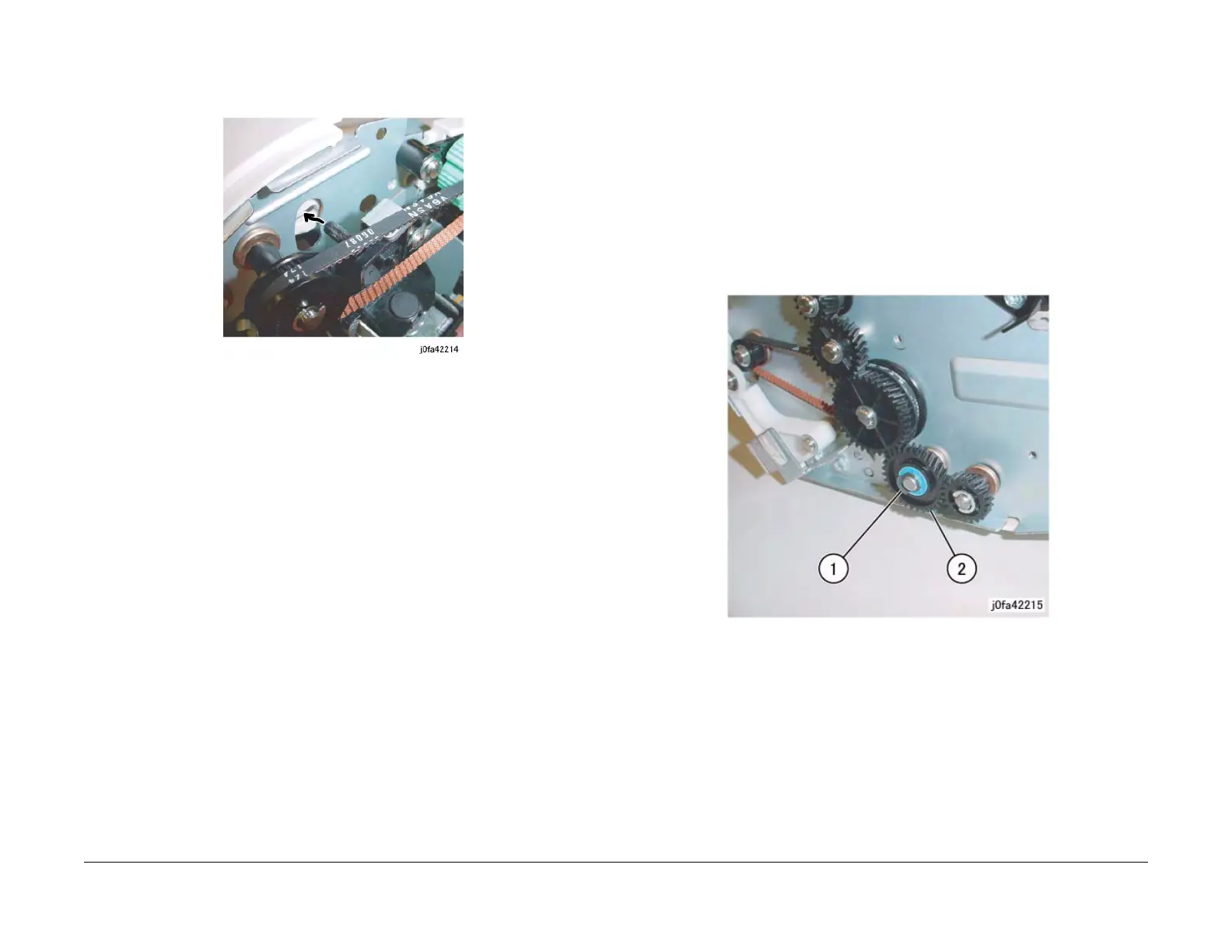

Figure 5 Installing the Sub Paddle Assembly (j0fa42214)
REP 22.4.1 Exit Roll Assembly
Parts List on PL 22.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Compile Assembly. (REP 22.9.1)
3. Remove the Pinch Roll. (REP 22.5.1)
4. Remove the Gear. (Figure 1)
(1)Remove KL-Clip.
(2)Remove Gear.
Figure 1 Removing the Gear (j0fa42215)
To Next Page
