February, 2008
4-9
WorkCentre 5225, 5230
REP 2.1.2
Repairs and Adjustments
Launch Version
REP 2.1.2 Feeder 2 Assembly
Parts List on PL 2.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power
applied to the machine.
1. Disconnect the HCF (Paper Tray 6) and move it aside.
2. Remove the MPT Assembly. (REP 7.1.1)
3. Remove Tray 2.
4. Remove the L/H Upper Cover. (REP 2.6.2)
5. Open the Left Hand Lower Cover.
6. Remove the Gear Assembly. (Figure 1)
1. Remove the screws (2).
2. Remove the wire harness and remove the Gear Assembly.
3. Disconnect the connector.

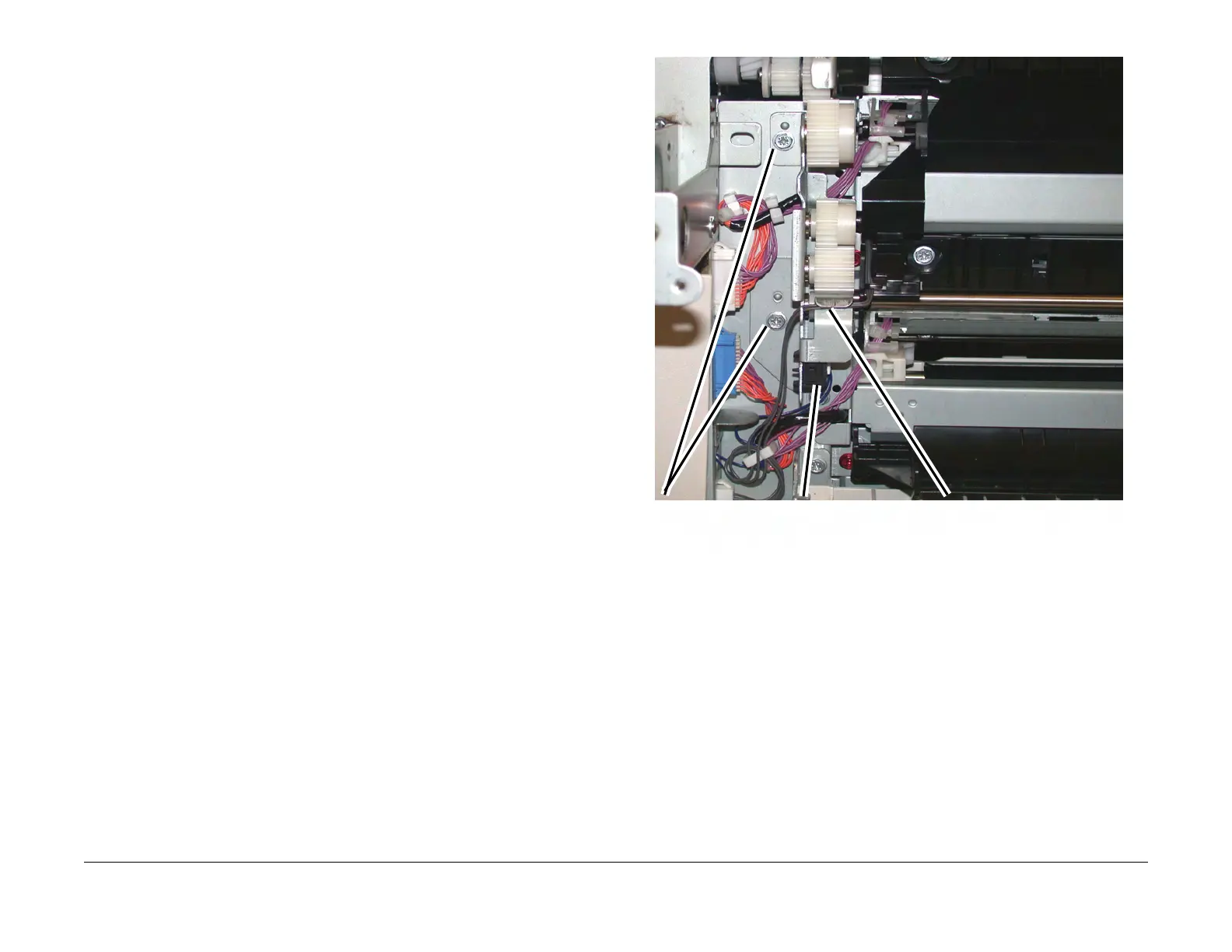

Figure 1 Removing the Gear Assembly
7. Remove the Feeder 2 Assembly. (Figure 2)
1. Disconnect the connector.
2. Release the Wire Harness from the clamp.
3. Remove the screws (x2).
4. Move the white guide to rear, then remove the Feeder 2 Assembly.
1
Remove the screws
(2)
3
Disconnect the connec-
tor
2
Remove the wire harness and
remove the Gear Assembly
To Next Page
