Xerox WorkCentre 5225 Service Manual

February, 2008
5-21
WorkCentre 5225, 5230
PL 6.1
Parts List
Launch Version

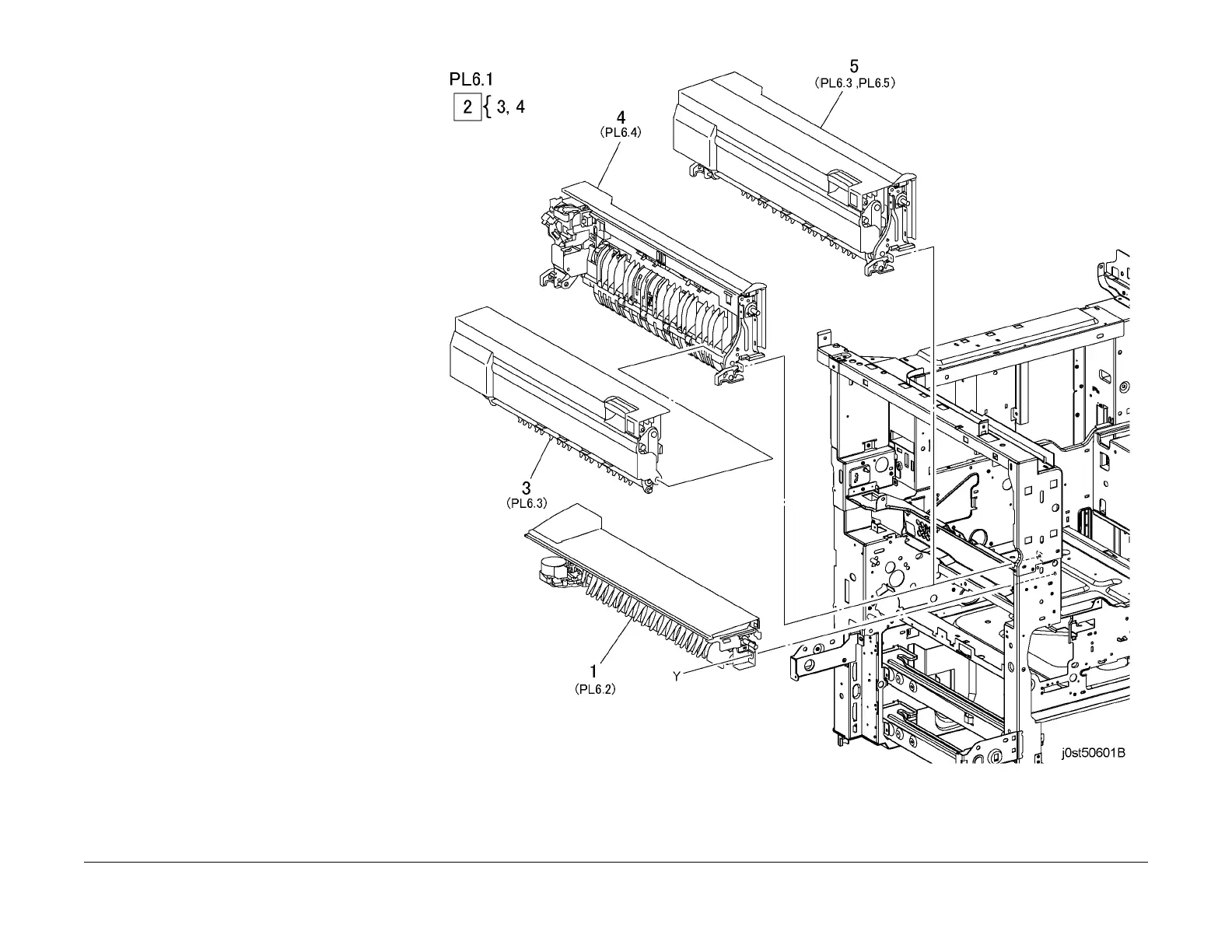

PL 6.1 Exit
Item Part Description
1 – Exit 1 (REF: PL 6.2 Item 3)
2 059K55870 Exit 2 And OCT2 (REP 6.1.1)
3 – L/H Upper Chute Assembly (P/O
PL 6.1 Item 2)
4 – Tray Guide Assembly (P/O PL 6.1
Item 2)
5 059K55880 Exit 2 And Inverter
