Xerox WorkCentre 5225 Service Manual

February, 2008
4-124
WorkCentre 5225, 5230
REP 15.6.1
Launch Version
Repairs and Adjustments

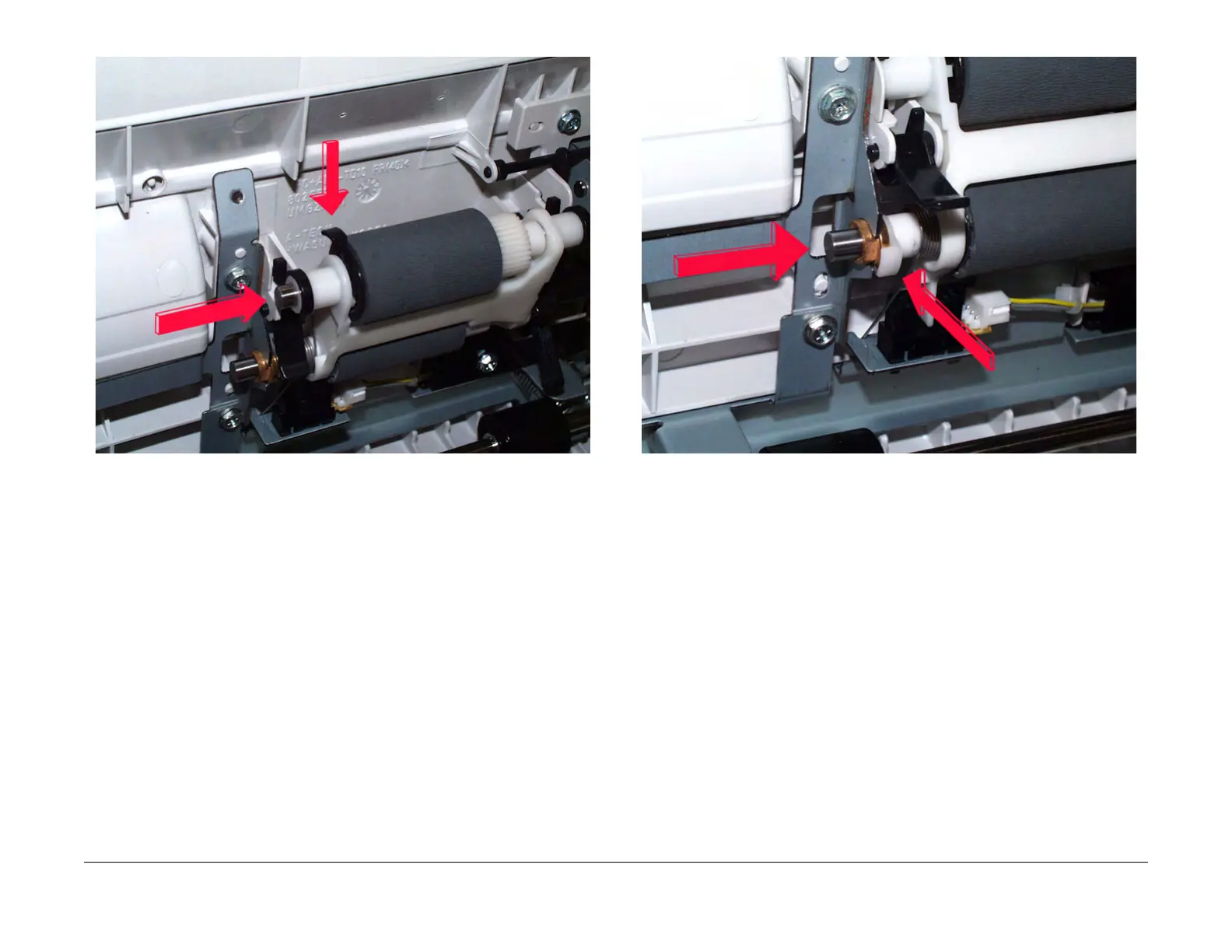

Figure 7 Installing the Nudger Roll, Nudger Roll shaft and locking clip
3. Retract the Nudger Roll by rotating the Torque Limiter inboard gear.
4. Install the Feed Roll and Feed Roll shaft. The shaft is spring loaded so push in the shaft
and hold it and install the locking clip. (Figure 8)
Figure 8 Installing the Feed Roll and Feed Roll shaft.
5. Observe following while installing Upper Feed Chute. (Figure 9)
• Insert the Boss into the U-groove (A).
• Insert the Tab into the Tab Slot (B).
• Install the screw (1)
