Xerox WorkCentre 5225 Service Manual

February, 2008
5-56
WorkCentre 5225, 5230
PL 13.7
Launch Version
Parts List

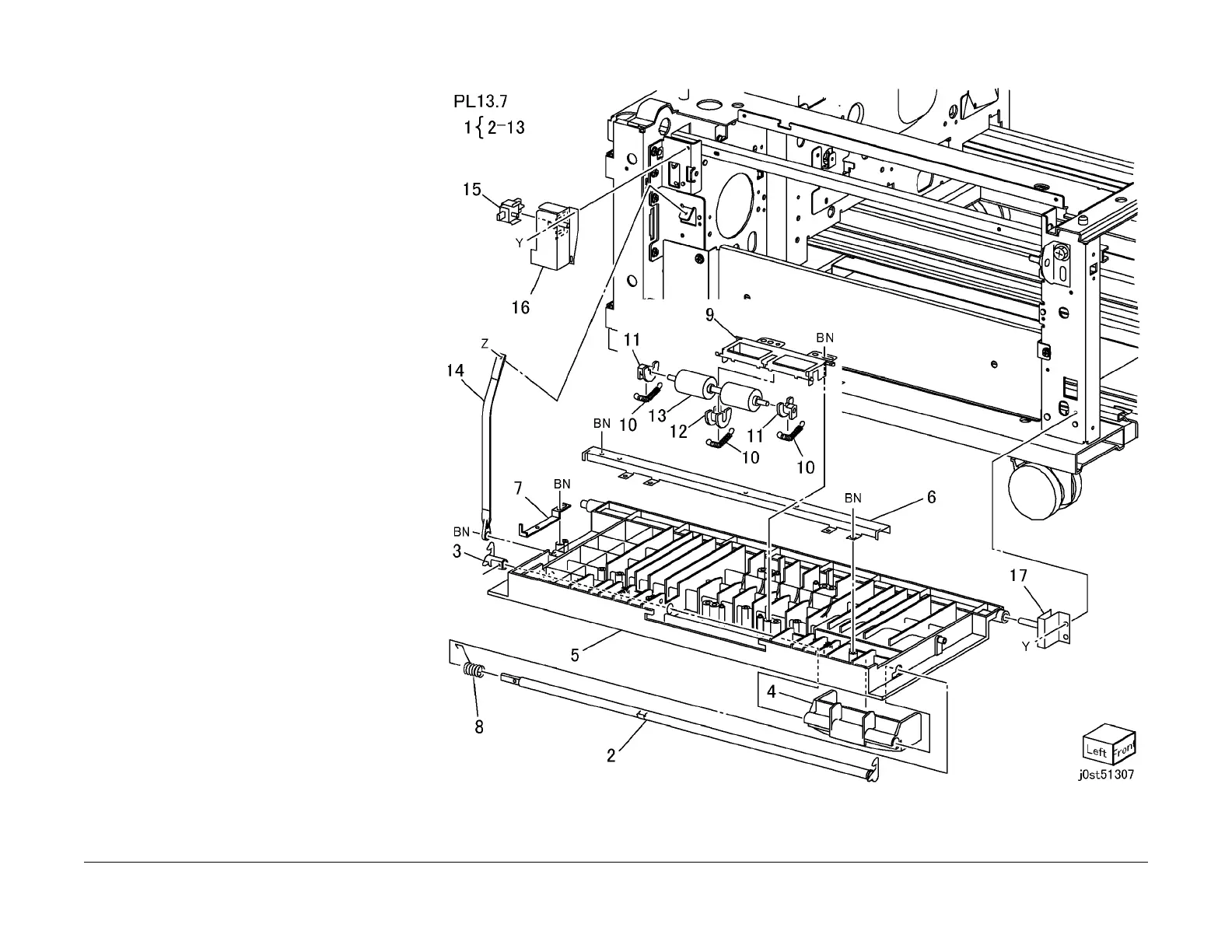

PL 13.7 Left Cover Assembly-Tandem
Item Part Description
1 848K20560 Left Cover Assembly
2 – Latch (P/O PL 13.7 Item 1)
3 – Hook (P/O PL 13.7 Item 1)
4 – Handle (P/O PL 13.7 Item 1)
5 – Left Cover (P/O PL 13.7 Item 1)
6 – Chute (P/O PL 13.7 Item 1)
7 – Actuator (P/O PL 13.7 Item 1)
8 – Spring (P/O PL 13.7 Item 1)
9 – Bracket (P/O PL 13.7 Item 1)
10 – Spring (P/O PL 13.7 Item 1)
11 – Bearing (P/O PL 13.7 Item 1)
12 – Bearing (P/O PL 13.7 Item 1)
13 – Pinch Roll (P/O PL 13.7 Item 1)
14 830E45710 Support
15 110E12220 Tray Module Left Cover Interlock
Switch
16 – Bracket (Not Spared)
17 – Bracket (Not Spared)
