February, 2008
4-216
WorkCentre 5225, 5230
REP 22.10.2
Launch Version
Repairs and Adjustments
REP 22.10.2 Front Tamper Home Sensor
Parts List on PL 22.10
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Inner Front Cover. (PL 22.1)
3. Remove the Rear Cover. (PL 22.1)
4. Turn over the A-Finisher.
5. Remove the Bottom Cover. (PL 22.2)
6. Remove the Connector Bracket. (Figure 1)
(1)Release Clamps (3) and remove the wires.
(2)Disconnect Connectors (5).
(3)Remove Screws (2).
(4)Remove Connector Bracket.

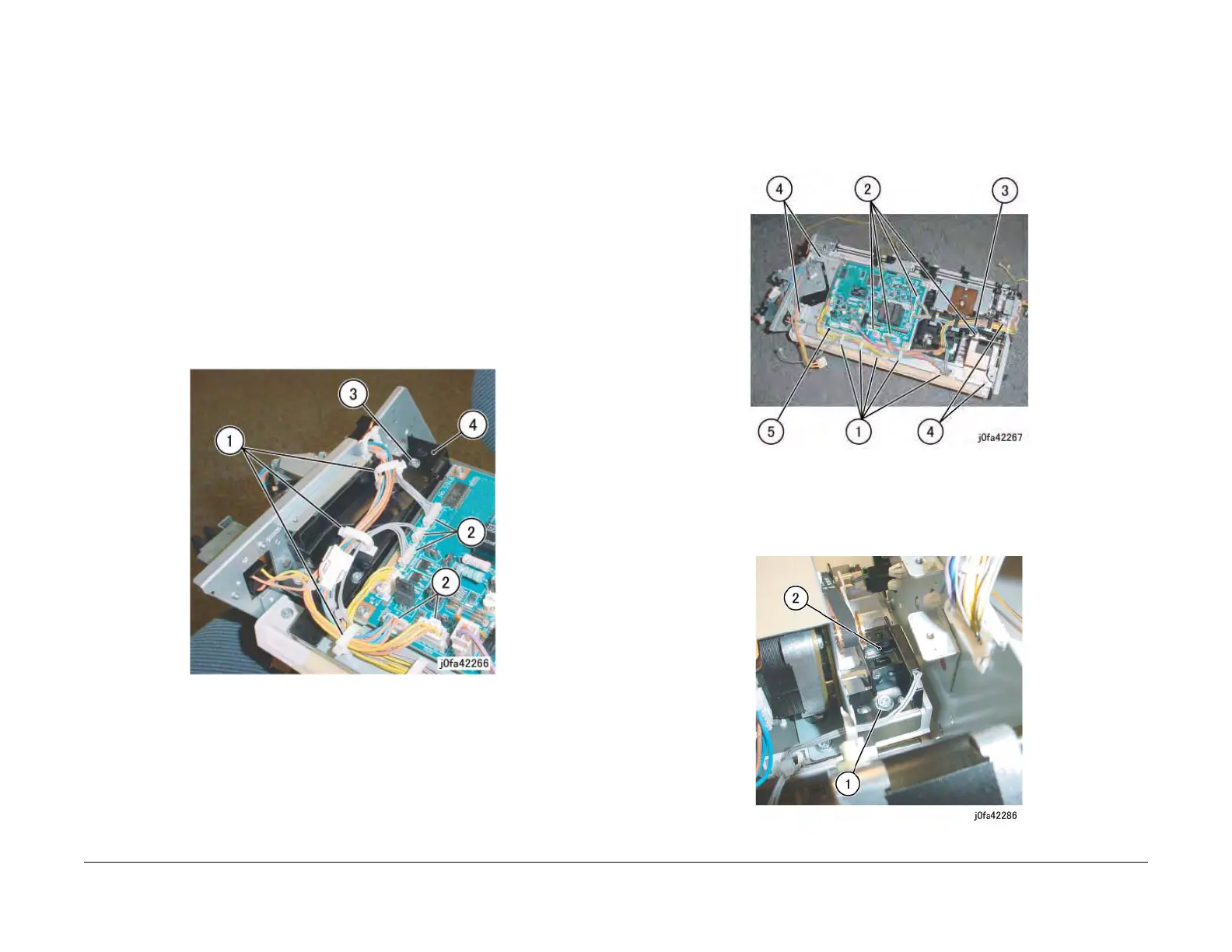

Figure 1 Removing the Connector Bracket (j0fa42266)
7. Remove the Bottom Plate. (Figure 2)
(1)Release Clamps (5) and remove the wires.
(2)Disconnect Connectors (8).
(3)Remove wires from Hooks (4).
(4)Remove Screws (4).
(5)Remove Bottom Plate.
Figure 2 Removing the Bottom Plate (j0fa42267)
8. Remove the Front Tamper Home Sensor Assembly. (Figure 3)
(1)Remove Screw.
(2)Remove Front Tamper Home Sensor Assembly.
Figure 3 Removing the Front Tamper Home Sensor Assembly (j0fa42286)
To Next Page
