Xerox WorkCentre 5225 Service Manual

February, 2008
5-108
WorkCentre 5225, 5230
PL 23.21
Launch Version
Parts List

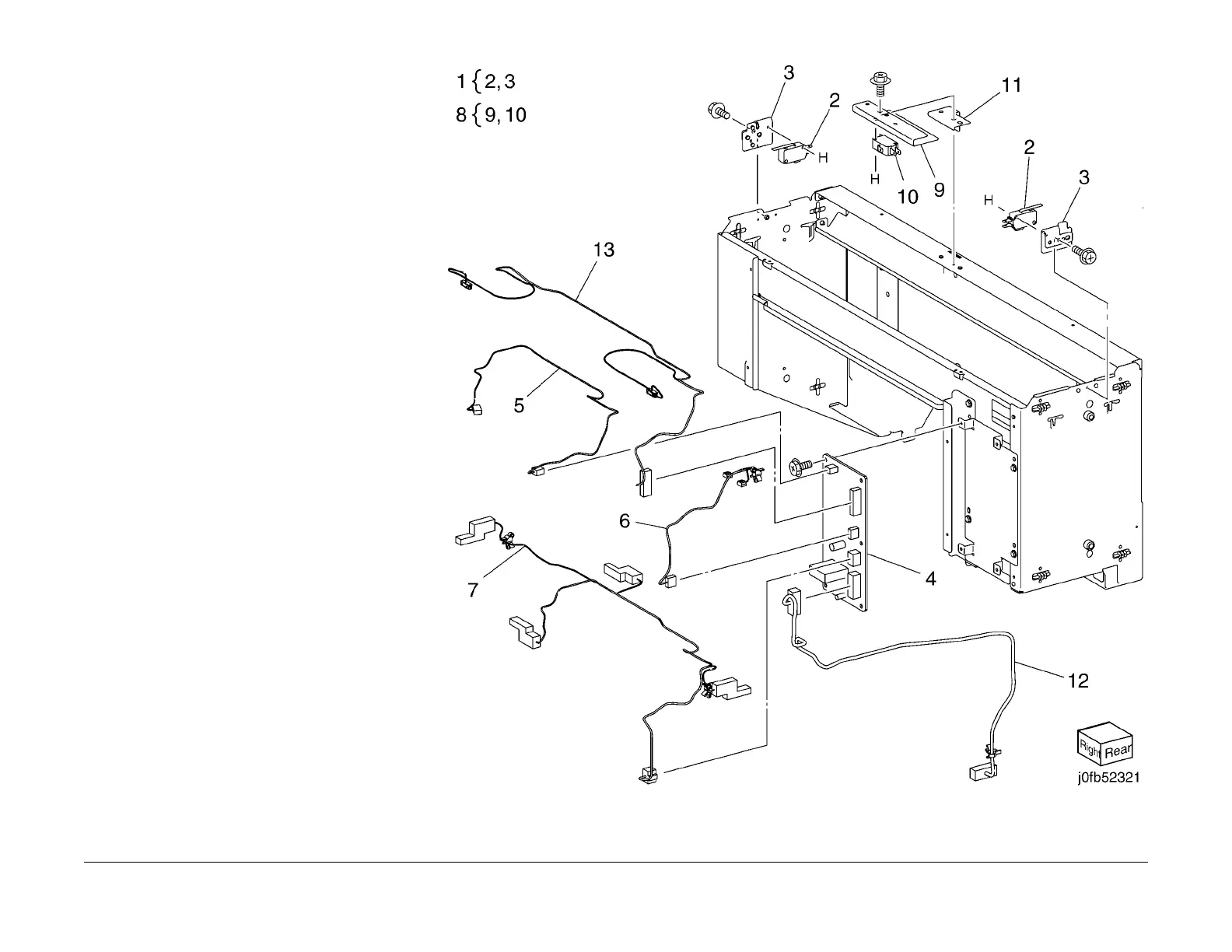

PL 23.21 Booklet Electrical
Item Part Description
1 068K58350 Booklet Stapler Safety Switch
Assembly
2 110E12970 Booklet Stapler Safety Switch
3 – Bracket (P/O PL 23.21 Item 1)
4 960K32541 Booklet PWB (REP 16.3.1)
5 – Wire Harness (Not Spared)
6 – Wire Harness (Not Spared)
7 – Wire Harness (Not Spared)
8 – Booklet Stapler Cover Switch
Assembly (Not Spared)
9 – Bracket (P/O PL 23.21 Item 8)
10 – Booklet Stapler Cover Switch (P/O
PL 23.21 Item 8)
11 – Plate (Not Spared)
12 962K60531 Wire Harness
13 962K60540 Wire Harness
