Xerox WorkCentre 5225 Service Manual

February, 2008
4-83
WorkCentre 5225, 5230
REP 12.1
Repairs and Adjustments
Launch Version

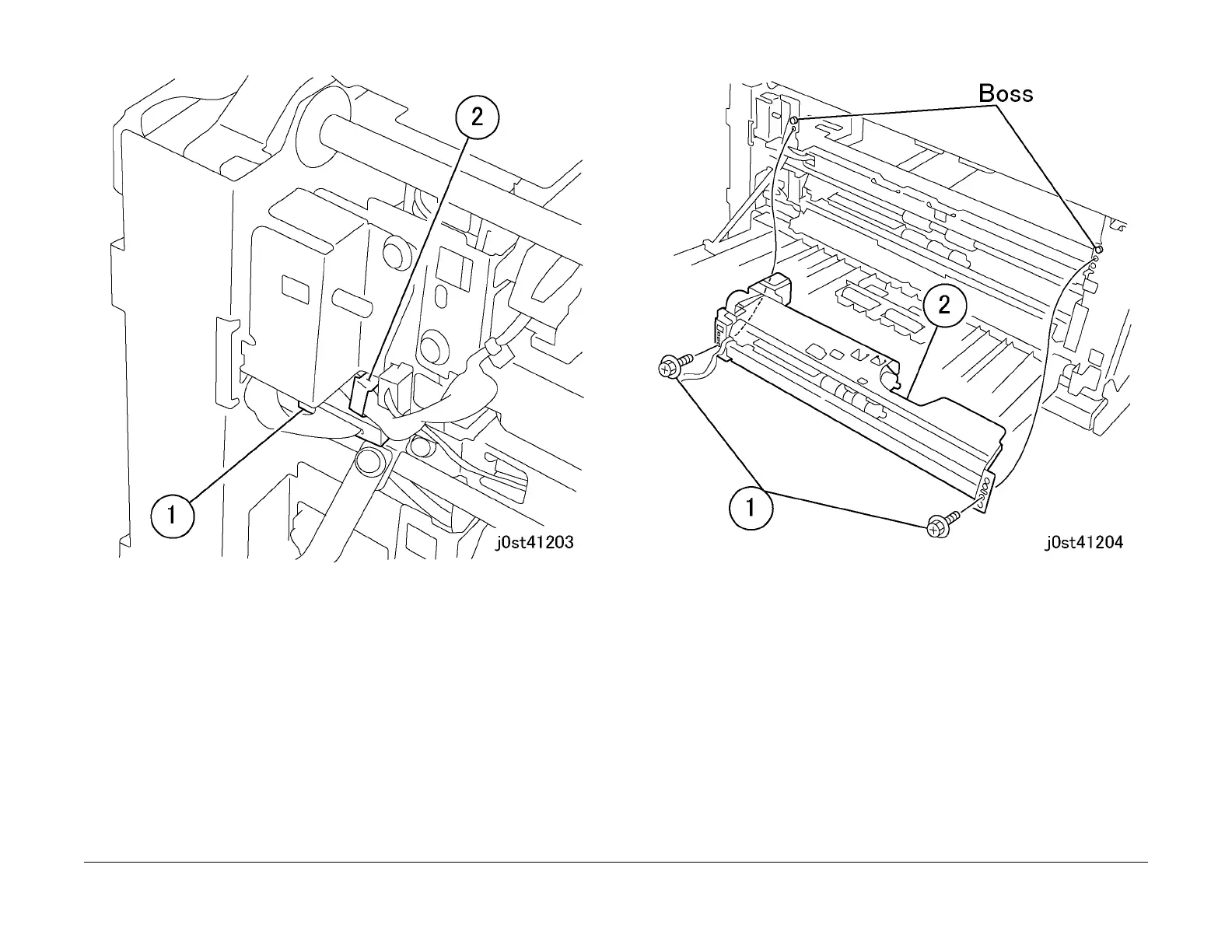

Figure 5 Disconnecting the connector (j0st41203)
8. Remove the Tray 3 Feeder. (Figure 6)
1. Remove the screws (x2).
2. Remove the Tray 3 Feeder.
Figure 6 Removing the Tray 3 Feeder (j0st41204)
Replacement
1. To install, carry out the removal steps in reverse order.
2. When replacing, enter Diagnostic. mode. Clear the counter.
Tray 3 “Chain Link:954-802 Tray Feed Counter Tray3-1”
