Xerox WorkCentre 5225 Service Manual

February, 2008
3-12
WorkCentre 5225, 5230
Launch Version
Image Quality

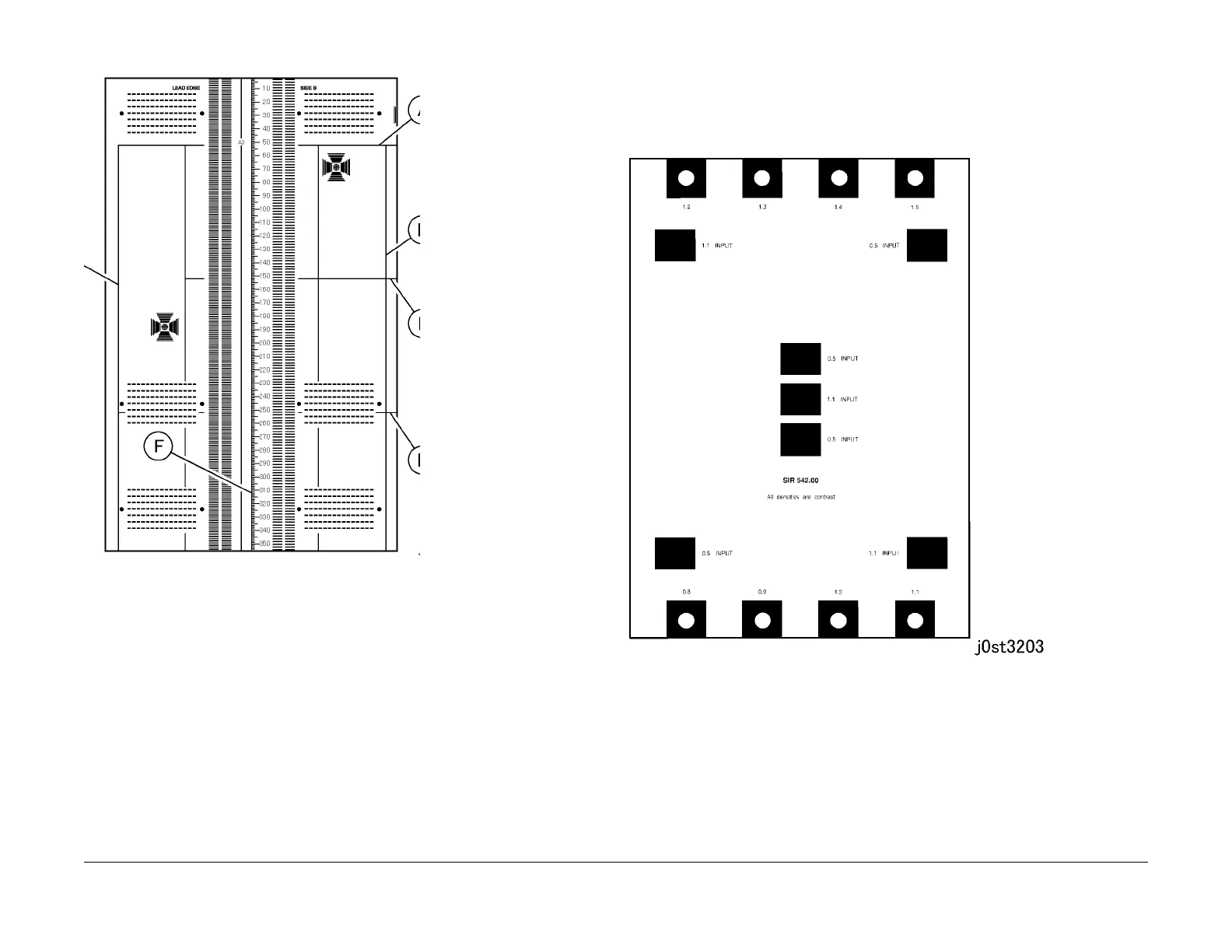

Figure 2 Standard Test Pattern (Side B)(j0st3202)
Output Reference Guide, SIR542.00
Procedure
This test document serves as a reference guide for measuring the solid area density of the Side A copies of the test pattern,
82P524 and 82P521 (Figure 3).
Figure 3 Output Reference Guide, SIR542.00 (j0st3203)
