Xerox WorkCentre 5225 Service Manual

February, 2008
4-171
WorkCentre 5225, 5230
REP 16.3.9
Repairs and Adjustments
Launch Version
3. Remove the Booklet Stapler Move Motor. (Figure 2)
a. Open the Clip and release the wires.
b. Disconnect the Connector.
c. Remove the Screws (3).
d. Remove the Booklet Stapler Move Motor.

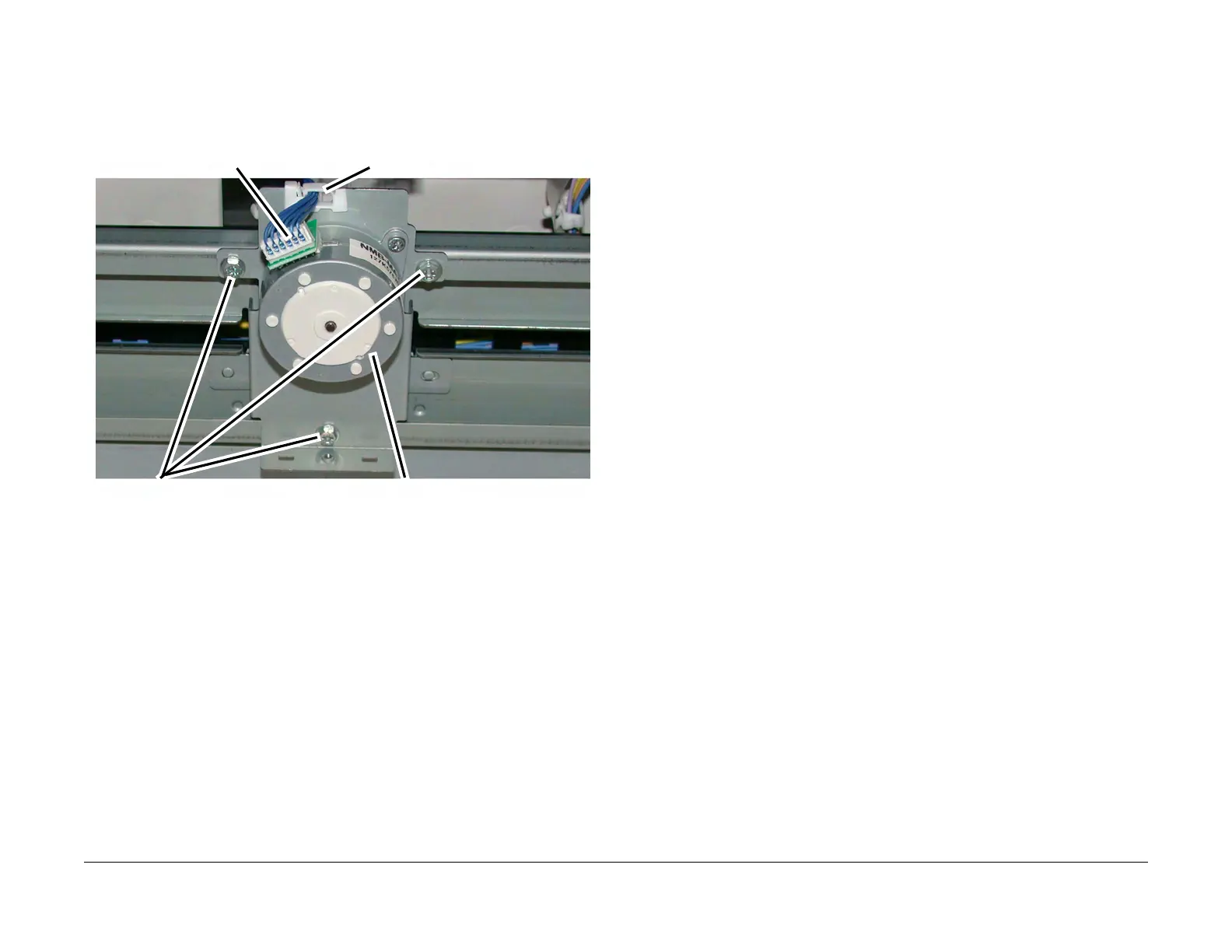

Figure 2 Removing the Booklet Stapler Move Motor (j0st41672)
Replacement
1. Reverse the removal procedure for replacement.
ClipConnector
Screws Booklet Stapler Move Motor
