February, 2008
4-47
WorkCentre 5225, 5230
REP 7.3.7
Repairs and Adjustments
Launch Version
REP 7.3.7 HCF Retard Lever Spring
Parts List on PL 18.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the HCF Feeder. (REP 7.3.2)
2. Place the Feeder on a flat surface and release the green Lever to open the Upper Feeder
Assembly.
3. Remove the Lower Chute.
• Remove the (2) securing screws.
4. Remove the plastic Cover by removing (4) screws.
5. Remove the Retard Roll.
6. Remove the E-Rings on the Lever and Spring.
7. Remove the Lever.
8. Remove the Spring. (Figure 1)

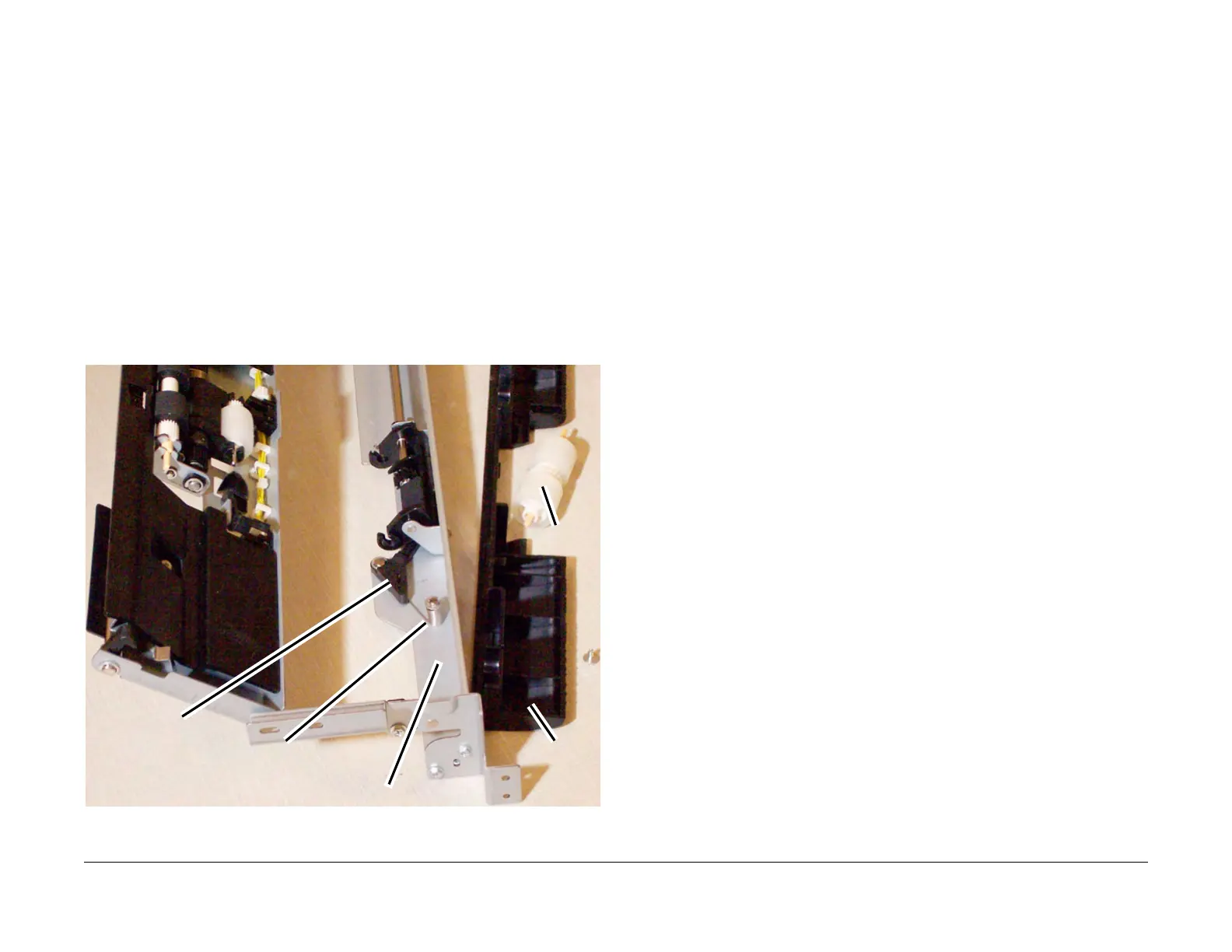

Figure 1 Removing the Retard Lever Spring
Replacement
NOTE: Make sure the plastic pads on the Lower Chute fit in the track before pushing it in.
1. To install, carry out the removal steps in reverse order.
Spring. Note how exten-
sion fits into Lever.
Lever
Retard
Roll
Cover
Lower Chute
