February, 2008
4-112
WorkCentre 5225, 5230
REP 15.3.3
Launch Version
Repairs and Adjustments
REP 15.3.3 Right Counter Balance
Parts List on PL 15.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
NOTE: Left/Right Counter Balance is identified by Compression Spring pressure.
Left Counter Balance: Compression Spring pressure strong
Right Counter Balance: Compression Spring pressure weak
1. Remove the DADF. (REP 15.1.1)
2. Remove the DADF Rear Cover. (PL 15.2).
3. Remove the screw that secure the Right Counter Balance. (Figure 1)
1. Check the calibration.
2. Remove the screw (1).
3. Disconnect the Ground Wire.
4. Remove the Tapping Screws (4).

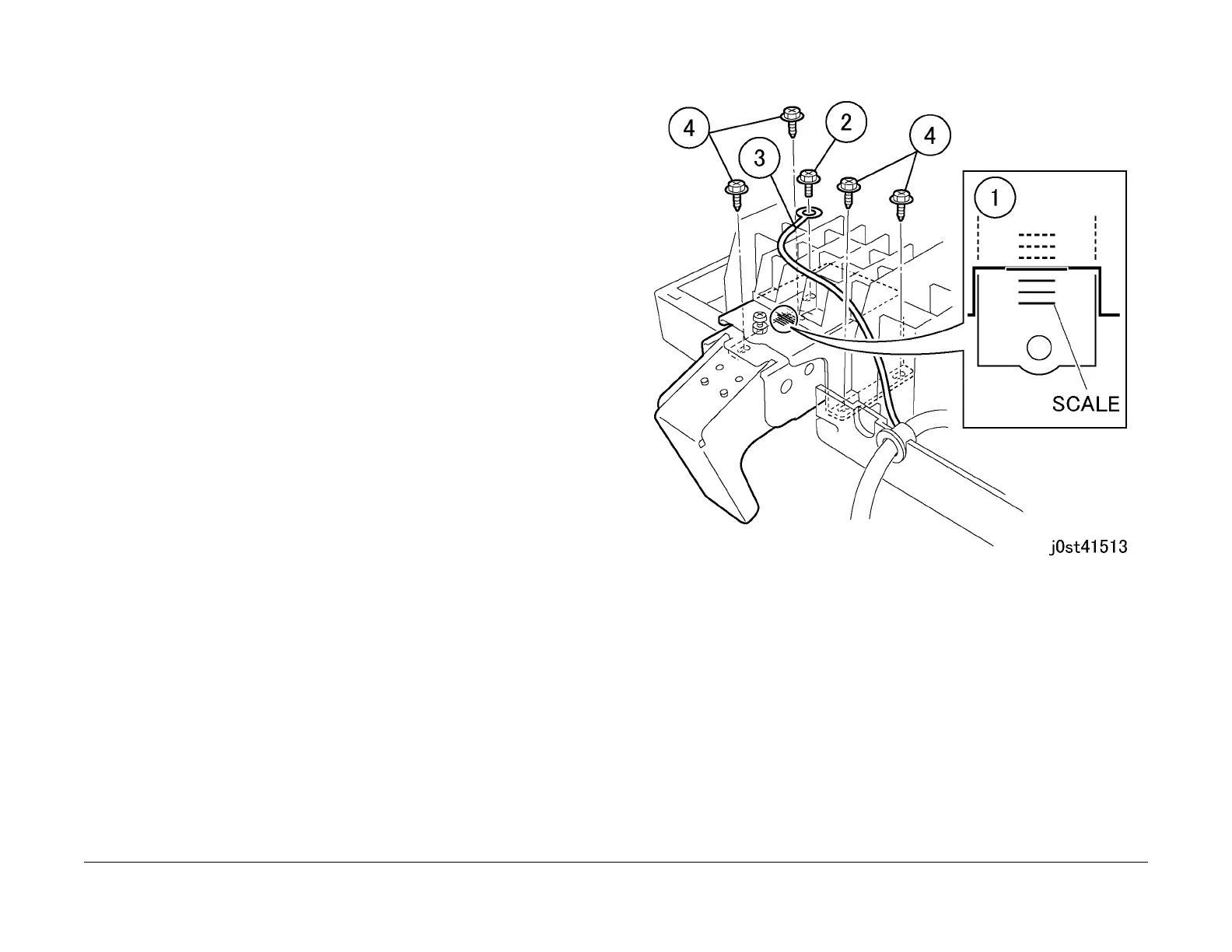

Figure 1 Unfastening the Right Counter Balance
4. Remove the Right Counter Balance. (Figure 2)
1. To remove, slide the Right Counter Balance in the direction of the arrow.
2. Precautions during installation:
A.Slot
B.Boss
C.Cutout
To Next Page
