REP 22.6.1
Repairs and Adjustments
Launch Version
NOTE: The screws do not thread into the Upper Chute. They are used like pins to secure
the Upper Chute in place.
6. Remove the Upper Chute Assembly. (Figure 2)
(1)Remove Screws (2).
(2)Remove Screw.
(3)Carefully Remove the Upper Chute Assembly.

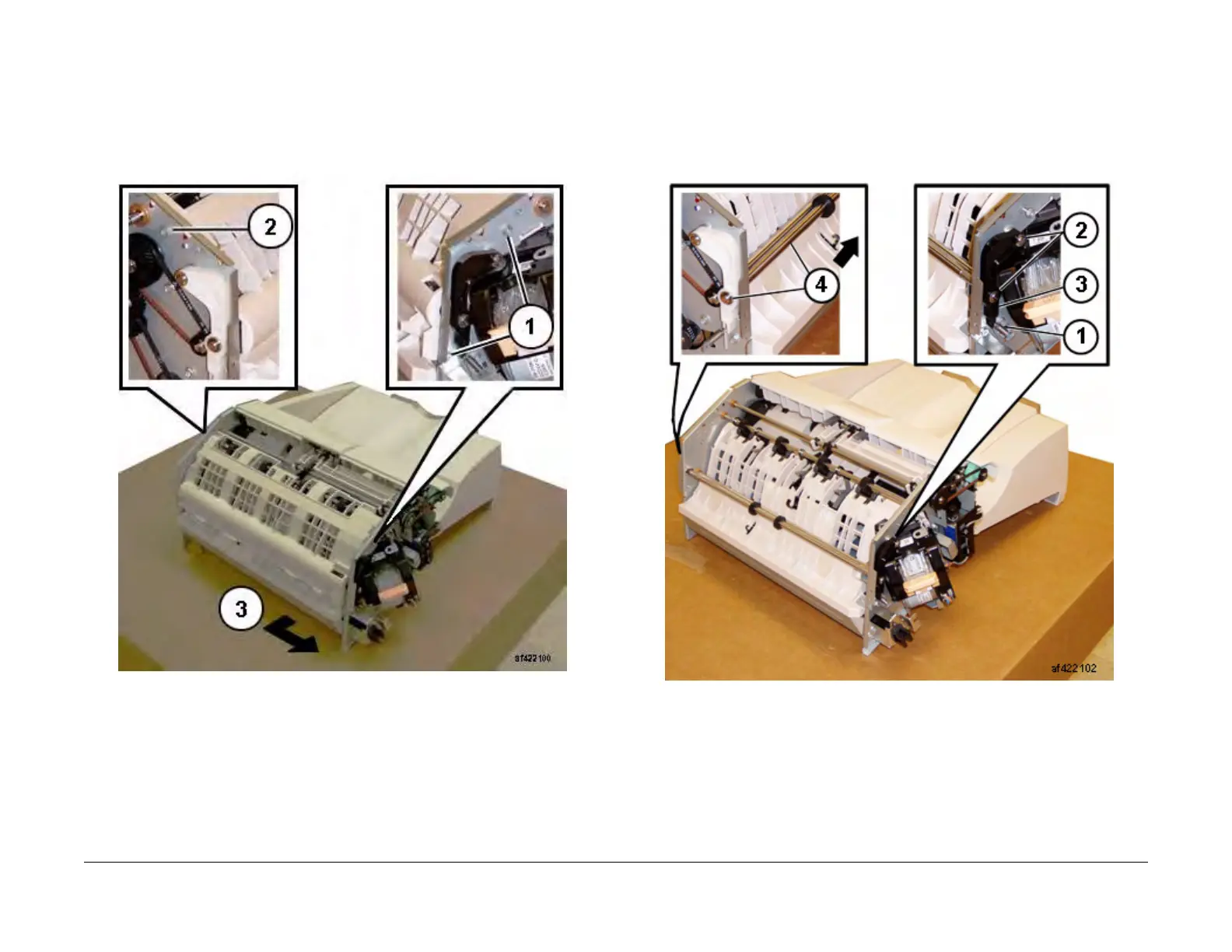

Figure 2 Removing the Upper Chute Assembly (af422100)
7. Remove the ENT Roll Assembly. (Figure 3)
(1)Disconnect Spring.
(2)Remove E-Rings (2).
NOTE: Capture the Bearing.
(3)Remove Arm.
(4)Slide Shaft out of the Bearing in the Arm.
Figure 3 Removing the Gear (af422102)
Replacement
1. Reverse the removal procedure for replacement.
NOTE: Ensure that the Paper Guides on the Upper Chute (PL 22.6) are not folded back
on top of the Exit Roll Assembly (PL 22.5).
