Xerox WorkCentre 5225 Service Manual

February, 2008
5-55
WorkCentre 5225, 5230
PL 13.6
Parts List
Launch Version

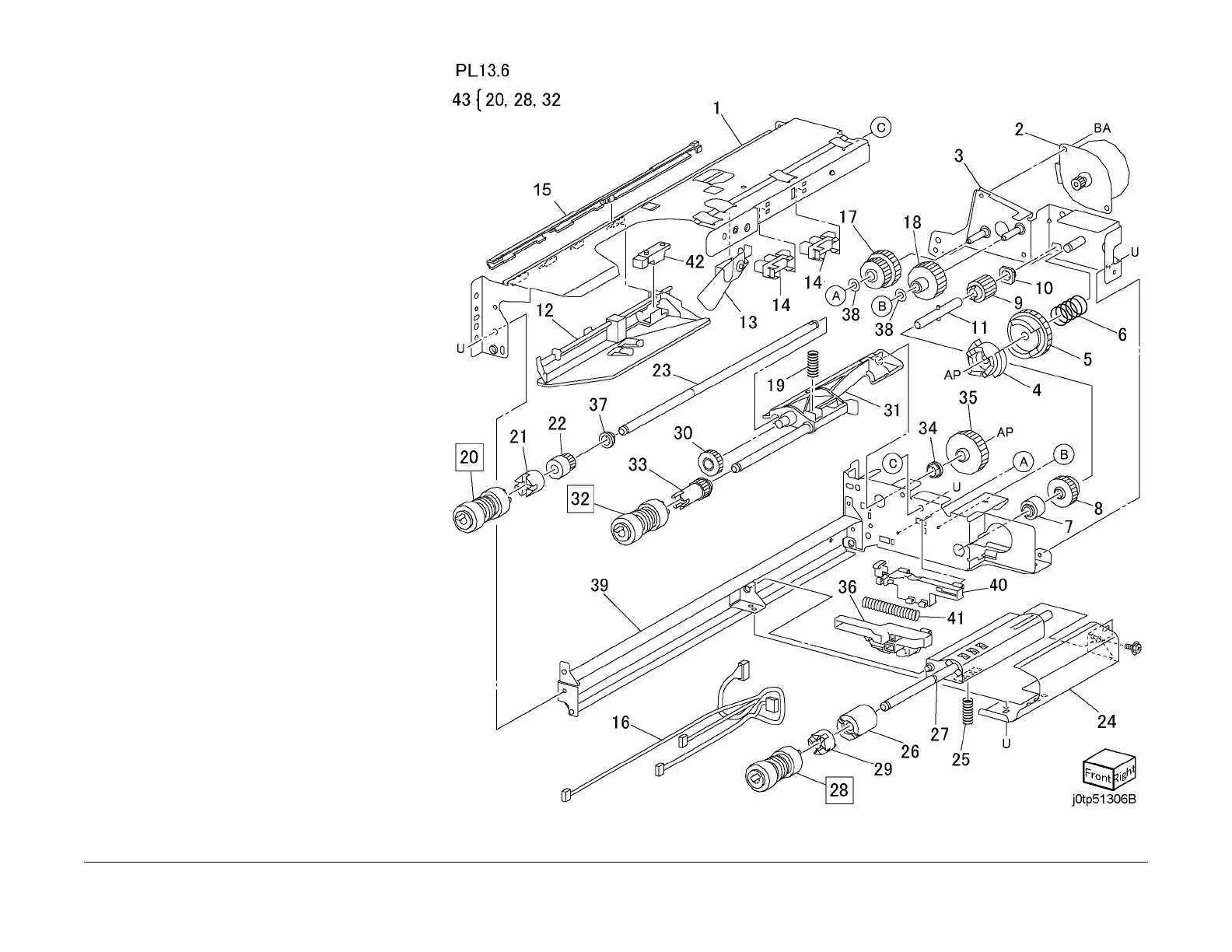

PL 13.6 Tray 3/4 Feeder-Tandem Tray
Item Part Description
1 – Upper Frame (P/O PL 13.5 Item 1)
2 127K38171 Tray 3/4 Feed/Lift Up Motor
3 – Bracket (P/O PL 13.5 Item 1)
4 014E44770 Spacer
5 – Gear (31T) (P/O PL 13.5 Item 1)
6 – Spring (P/O PL 13.5 Item 1)
7 – Oneway Clutch (P/O PL 13.5 Item
1)
8 – Oneway Gear (P/O PL 13.5 Item 1)
9 – Gear (33T) (P/O PL 13.5 Item 1)
10 – Bearing (P/O PL 13.5 Item 1)
11 – Shaft (P/O PL 13.5 Item 1)
12 – Front Chute (P/O PL 13.5 Item 1)
13 120E22481 Actuator
14 930W00113 Tray 3/4 Level Sensor, Tray 3/4 No
Paper Sensor
15 – Harness Holder (CTR) (P/O PL
13.5 Item 1)
16 962K18912 Wire Harness
17 – Gear (28T/21T) (P/O PL 13.5 Item
1)
18 – Gear (29T) (P/O PL 13.5 Item 1)
19 – Spring (P/O PL 13.5 Item 1)
20 – Feed Roll (P/O PL 13.6 Item 43)
(REP 12.3)
21 005K05890 Oneway Clutch
22 005K06760 Oneway Gear (22T)
23 – Shaft (P/O PL 13.5 Item 1)
24 054E23170 Chute
25 – Spring (P/O PL 13.5 Item 1)
26 005K81880 Friction Clutch
27 – Support (P/O PL 13.5 Item 1)
28 – Retard Roll (P/O PL 13.6 Item 43)
(REP 12.3)
29 – Spacer (P/O PL 13.5 Item 1)
30 – Gear (13T) (P/O PL 13.5 Item 1)
31 – Support (P/O PL 13.5 Item 1)
32 – Nudger Roll (P/O PL 13.6 Item 43)
(REP 12.3)
33 – Gear (25T) (P/O PL 13.5 Item 1)
34 – Bearing (P/O PL 13.5 Item 1)
35 – Gear (34T) (P/O PL 13.5 Item 1)
36 – Lever (P/O PL 13.5 Item 1)
37 – Bearing (P/O PL 13.5 Item 1)
38 – Washer (P/O PL 13.5 Item 1)
39 – Lower Frame (P/O PL 13.5 Item 1)
40 – Holder (P/O PL 13.5 Item 1)
41 – Spring (P/O PL 13.5 Item 1)
42 930W00211 Tray 3/4 Per Feed Sensor
43 604K20360 Feeder Roll Kit
(Feeder/Nudger/Retard)
