TIRES/WHEELS
TABLE OF CONTENTS
page page
TIRES/WHEELS
DIAGNOSIS AND TESTING - TIRE AND
WHEEL RUNOUT ......................1
STANDARD PROCEDURE
STANDARD PROCEDURE - MATCH
MOUNTING ...........................2
STANDARD PROCEDURE - TIRE AND
WHEEL BALANCE ......................3
STANDARD PROCEDURE - TIRE ROTATION . 5
SPECIFICATIONS
TORQUE CHART ......................5
TIRES
DESCRIPTION
DESCRIPTION - TIRES ..................6
DESCRIPTION - RADIAL – PLY TIRES ......6
DESCRIPTION - TIRE PRESSURE FOR
HIGH SPEEDS.........................6
DESCRIPTION - REPLACEMENT TIRES .....7
DESCRIPTION - TIRE INFLATION
PRESSURES ..........................7
DIAGNOSIS AND TESTING
DIAGNOSIS AND TESTING - PRESSURE
GAUGES .............................8
DIAGNOSIS AND TESTING - TIRE NOISE
OR VIBRATION ........................8
DIAGNOSIS AND TESTING - TREAD WEAR
INDICATORS ..........................8
DIAGNOSIS AND TESTING - TIRE WEAR
PATTERNS ...........................8
DIAGNOSIS AND TESTING - TIRE/VEHICLE
LEAD ................................8
STANDARD PROCEDURE - REPAIRING
LEAKS ..............................10
CLEANING ............................10
SPECIFICATIONS
TIRES ..............................10
SPARE TIRE CARRIER
REMOVAL .............................10
INSTALLATION .........................10
WHEELS
DESCRIPTION .........................11
OPERATION ...........................11
DIAGNOSIS AND TESTING
WHEEL INSPECTION ..................11
STANDARD PROCEDURE
STANDARD PROCEDURE - WHEEL
REPLACEMENT .......................11
STANDARD PROCEDURE - DUAL REAR
WHEEL INSTALLATION .................12
REMOVAL .............................13
INSTALLATION .........................13
TIRES/WHEELS
DIAGNOSIS AND TESTING - TIRE AND WHEEL
RUNOUT
Radial runout is the difference between the high
and low points on the tire or wheel (Fig. 1).
Lateral runout is the wobble of the tire or wheel.
Radial runout of more than 1.5 mm (.060 inch)
measured at the center line of the tread may cause
the vehicle to shake.
Lateral runout of more than 2.0 mm (.080 inch)
measured near the shoulder of the tire may cause the
vehicle to shake.
Sometimes radial runout can be reduced. Relocate
the wheel and tire assembly on the mounting studs
(See Method 1). If this does not reduce runout to an
acceptable level, the tire can be rotated on the wheel.
(See Method 2).

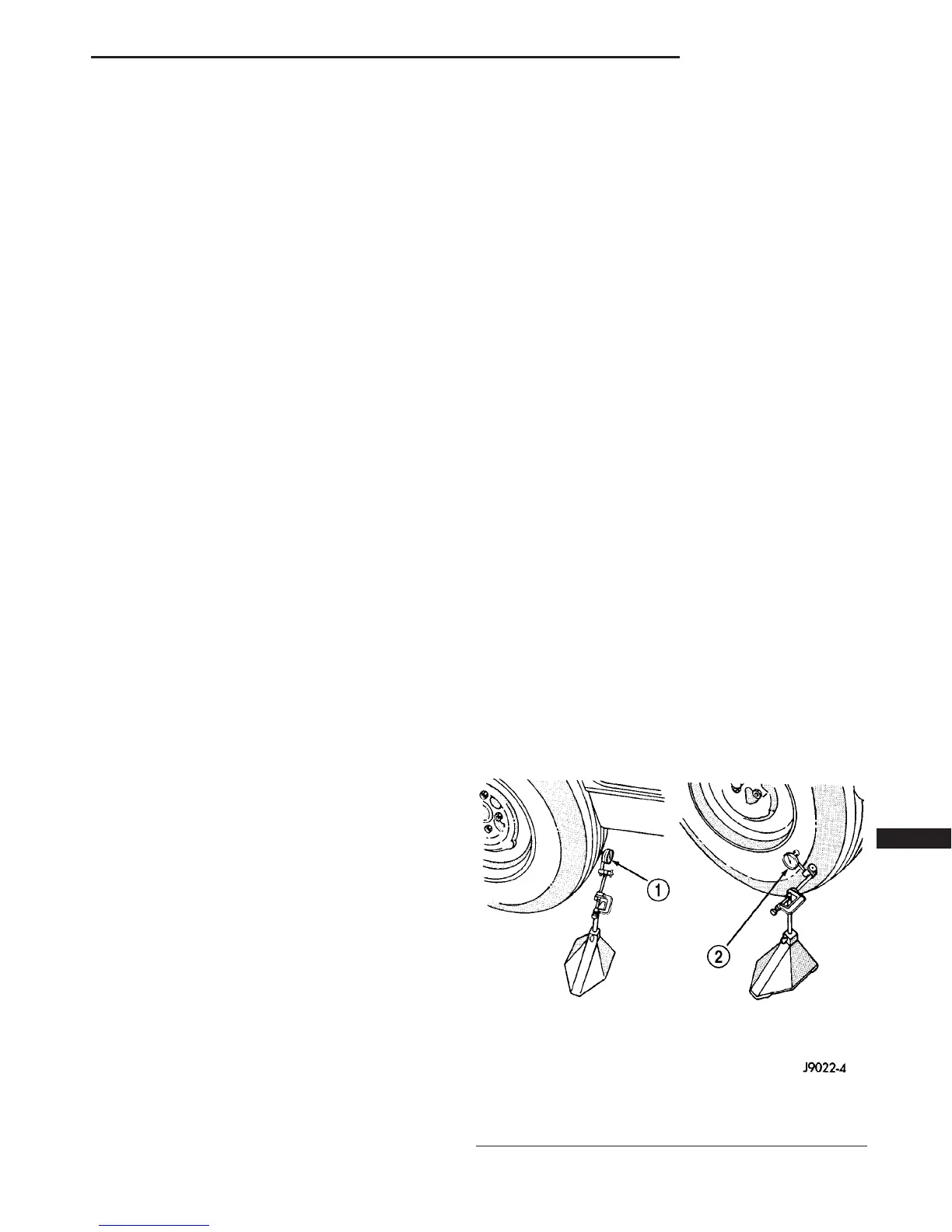

Fig. 1 Checking Tire/Wheel/Hub Runout
1 - RADIAL RUNOUT
2 - LATERAL RUNOUT
VA TIRES/WHEELS 22 - 1
