DISASSEMBLY
(1) Remove door.(Refer to 23 - BODY/DOORS -
SLIDING/REAR LATCH STRIKER - REMOVAL)
(2) Remove inside door handle actuator (7). (Refer
to 23 - BODY/DOORS - SLIDING/INSIDE HANDLE
ACTUATOR - REMOVAL)
(3) Remove center roller arm cover (23). (Fig. 16)
(4) Remove trim panel (24). (Refer to 23 - BODY/
DOORS - SLIDING/TRIM PANEL - REMOVAL)
(5) Remove lock knob (27).
(6) Disconnect lock rod (25) and remove.
(7) Remove rear latch (22). (Refer to 23 - BODY/
DOORS - SLIDING/REAR LATCH - REMOVAL)
(8) Remove latch/lock control (14). (Refer to 23 -
BODY/DOORS - SLIDING/LATCH / LOCK CON-
TROL - REMOVAL)
(9) Remove exterior handle (10). (Refer to 23 -
BODY/DOORS - SLIDING/EXTERIOR HANDLE -
REMOVAL)
(10) Remove center roller arm (20). (Refer to 23 -
BODY/DOORS - SLIDING/LOWER ROLLER ARM -
REMOVAL)
(11) Remove stabilizer wedges (6). (Refer to 23 -
BODY/DOORS - SLIDING/STABILIZER -
REMOVAL)
(12) Remove upper roller arm (2). (Refer to 23 -
BODY/DOORS - SLIDING/UPPER ROLLER -
REMOVAL)
(13) Remove bolts (28) and remove crash reinforce-
ment (29).

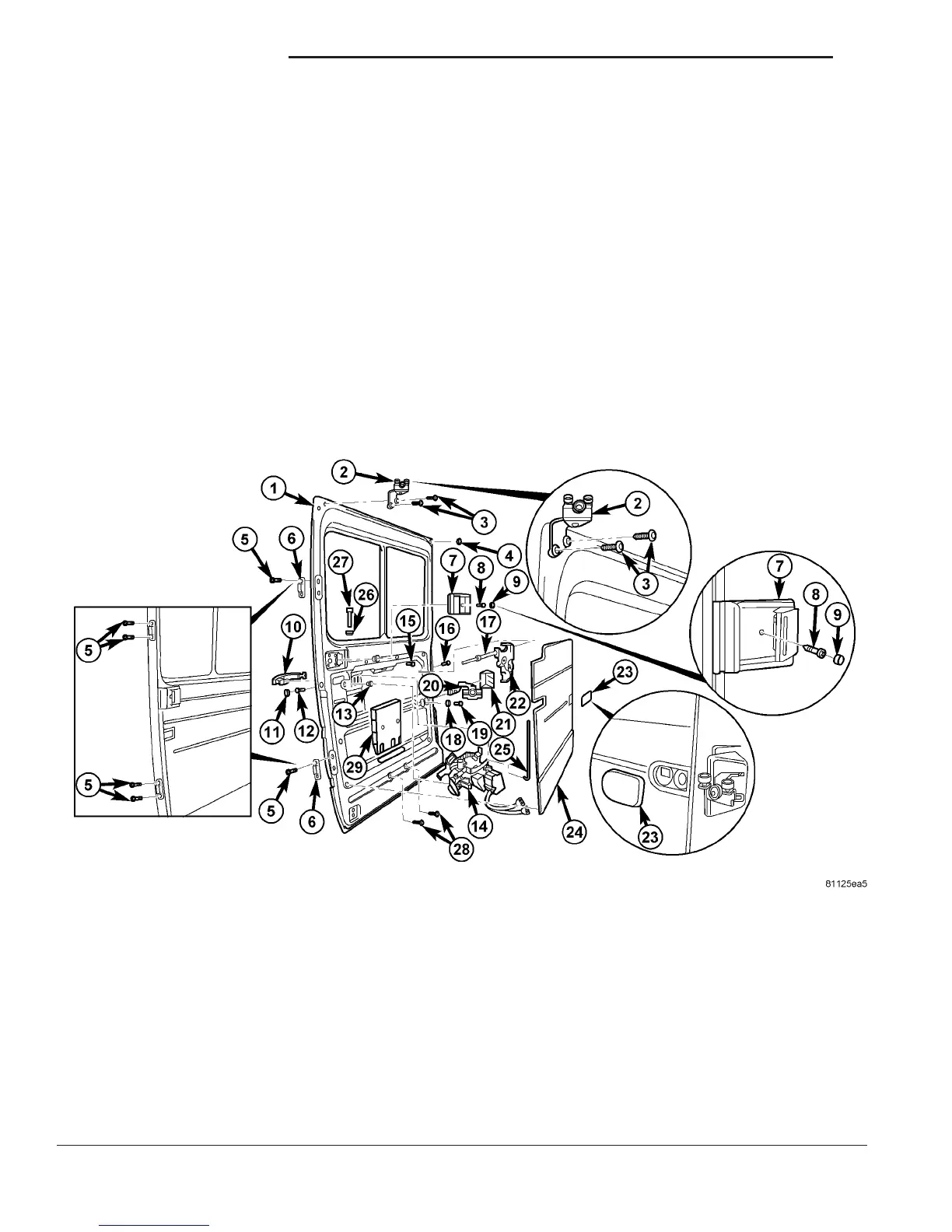

Fig. 16 SLIDING DOOR ASSEMBLY
1 - SLIDING DOOR 16 - BOLT
2 - UPPER ROLLER ARM 17 - RELEASE CABLE
3 - BOLTS (2) 18 - WASHER
4 - TRIM PLUG 19 - BOLT
5 - BOLTS (2) 20 - CENTER ROLLER ARM
6 - STABILIZER PIN 21 - RUBBER COVER
7 - INSIDE HANDLE ACTUATOR 22 - REAR LATCH
8 - SCREWS 23 - COVER
9 - TRIM PLUG 24 - TRIM PANEL
10 - EXTERIOR HANDLE 25 - CONNECTOR ROD
11 - TRIM PLUG 26 - GROMMET
12 - BOLT (1) 27 - LOCK KNOB
13 - NUT 28 - SCREWS
14 - LATCH/LOCK CONTROL 29 - CRASH REINFORCEMENT
15 - BOLT
23 - 42 DOORS - SLIDING VA
SLIDING DOOR (Continued)
