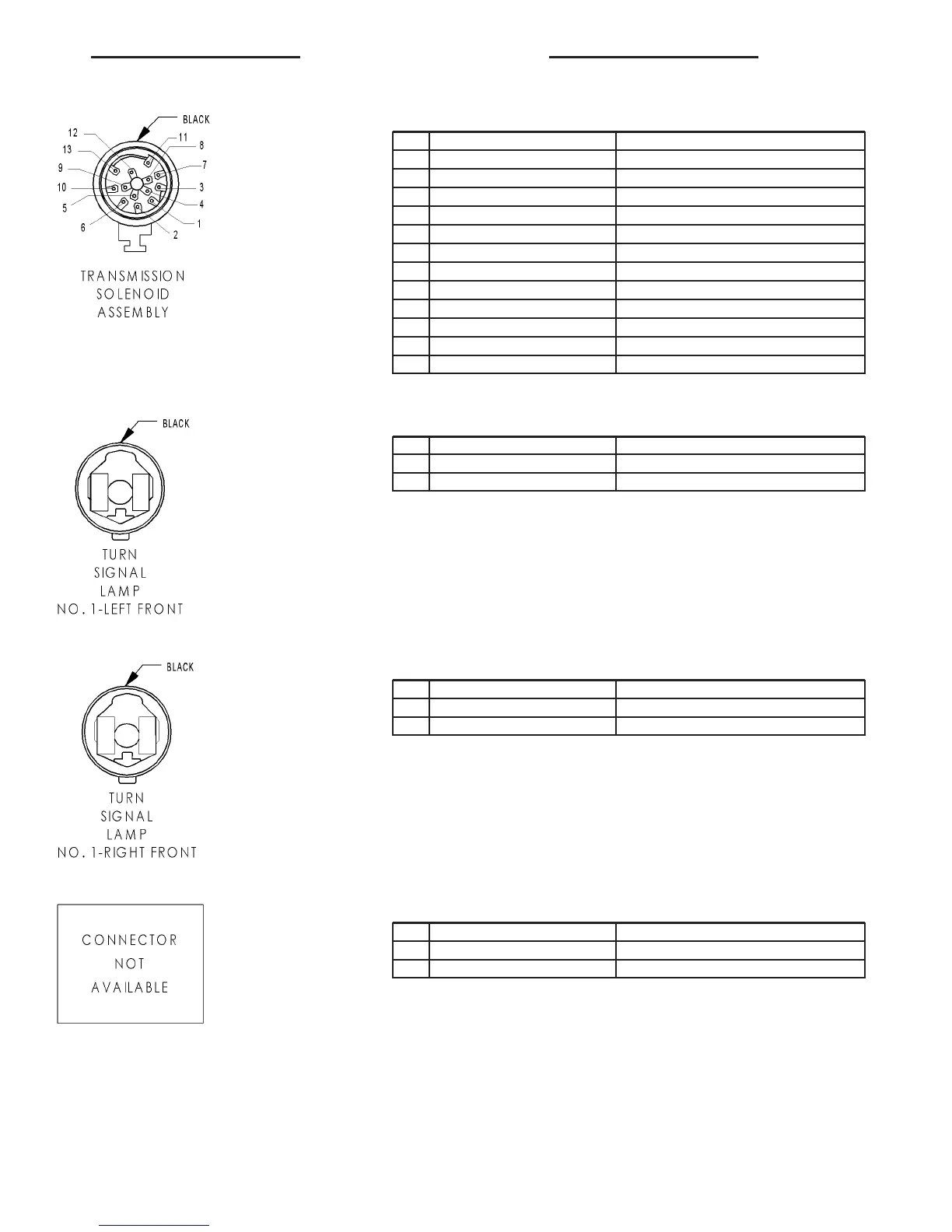

TRANSMISSION SOLENOID ASSEMBLY - BLACK
CAV CIRCUIT FUNCTION
1 20BL/DG N3 INPUT SPEED SENSOR
2 16BR/GY MODULATION PRESSURE SOLENOID CONTROL
3 20BL/GY N2 INPUT SPEED SENSOR
4 20GY/BL TEMP SENSOR-P/N SWITCH
6 16BK SOLENOID SUPPLY VOLTAGE
7 20BK/BL SENSOR SUPPLY VOLTAGE
8 16WT/BL 2-3 SOLENOID CONTROL
9 16YL 3-4 SOLENOID CONTROL
10 16BK/RD SHIFT PRESSURE SOLENOID CONTROL
11 16YL/BL TCC SOLENOID CONTROL
12 20PK SENSOR GROUND
13 16WT 1-2/4-5 SOLENOID CONTROL
TURN SIGNAL NO. 1-LEFT FRONT - BLACK
CAV CIRCUIT FUNCTION
1 16BK/WT LEFT TURN SIGNAL
2 16BR GROUND
TURN SIGNAL NO. 1-RIGHT FRONT - BLACK
CAV CIRCUIT FUNCTION
1 16BK/DG RIGHT TURN SIGNAL
2 16BR GROUND
TURN SIGNAL NO. 2-LEFT FRONT
CAV CIRCUIT FUNCTION
1 16BK/WT LEFT TURN SIGNAL
2 16BR GROUND
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 63
