(2) Disconnect and isolate the battery negative
cable. Wait two minutes for the system capacitor to
discharge before further service.
(3) If the vehicle is so equipped, unsnap and
remove the plastic cover from the screw that secures
the front seat belt lower anchor to the outboard side
of the seat frame (Fig. 22).
(4) Remove the screw that secures the front seat
belt lower anchor to the outboard side of the seat
frame.
(5) Remove the front seat belt lower anchor from
the outboard side of the seat frame.
(6) Remove the trim panel from the inside of the
B-pillar. (Refer to 23 - BODY/INTERIOR/B-PILLAR
TRIM - REMOVAL).
(7) Pull the height adjuster trim away from the
upper B-pillar to disengage the driver from the lug of
the height adjuster (Fig. 23).
(8) Pull the front seat belt and lower anchor
through the back of the height adjuster trim.
(9) Remove the nut that secures the front seat belt
turning loop to the height adjuster (Fig. 24).
(10) Remove the front seat belt turning loop from
the height adjuster.
CAUTION: Do not pull on the wires to disengage
the connector from the seat belt tensioner initiator
connector receptacle. Improper removal of the con-
nector insulator can result in damage to the seat
belt tensioner circuits or the connector insulator.

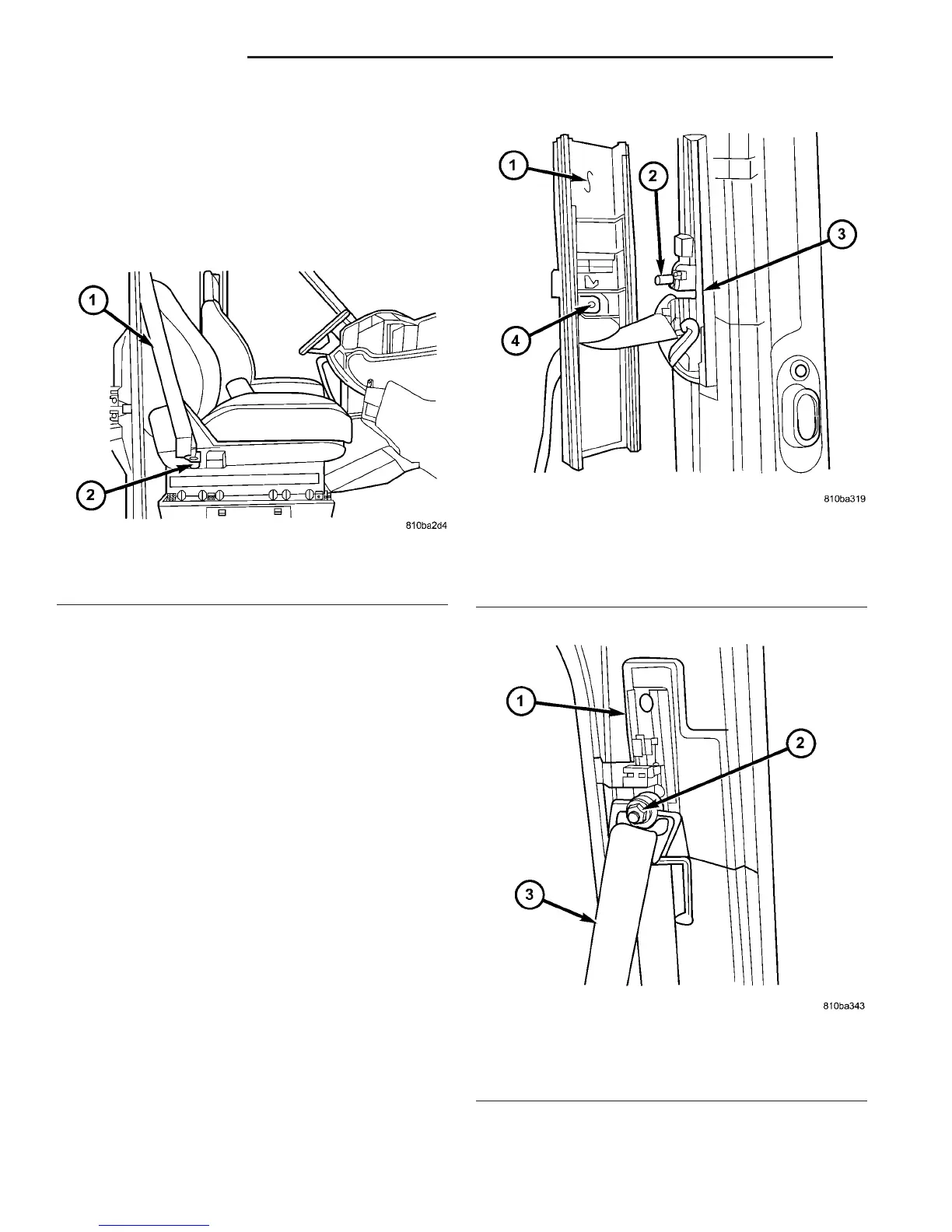

Fig. 22 Front Seat Belt Lower Anchor
1 - FRONT SEAT BELT
2 - COVER AND/OR SCREW
Fig. 23 Turning Loop Height Adjuster
1 - HEIGHT ADJUSTER TRIM
2 - LUG
3 - HEIGHT ADJUSTER
4 - DRIVER
Fig. 24 Front Seat Belt Turning Loop
1 - HEIGHT ADJUSTER
2 - NUT
3 - FRONT SEAT BELT
8O - 20 RESTRAINTS VA
FRONT SEAT BELT & RETRACTOR (Continued)
