CABLES
REMOVAL
REMOVAL - FRONT
(1) Raise and support the vehicle.
(2) Disconnect the front park brake cable from the
pulley unit.
(3) Remove the front park brake cable from the
hand brake lever (Fig. 29).
(4) Unclip the guides at the frame cross members
for the front cable at the vehicle (Fig. 30).
(5) Pull off the locking clips at the floor opening
and pull the front brake cable down and out (Fig.
30).
(6) Press together the locking ring and pull out the
front brake cable to the front (Fig. 30).
(7) Remove the front park brake cable at the vehi-
cle using special tool 9289.
REMOVAL - REAR
(1) Raise and support the vehicle.
(2) Remove the rear tires.
(3) Remove the park brake shoes.
(4) Remove the park brake cables from the shoe
(Fig. 31).
(5) Remove all the connections on the hand brake
cable (Fig. 31).
(6) Remove the park brake cable lock (Fig. 31).
Observe the installed position of the brake
cable lock for reference on installation.
(7) Remove the hand brake cable from the anchor
plate (Fig. 31).
(8) Remove the park brake cable from the vehicle.
Compress the locking ring on the pulley unit.
INSTALLATION
INSTALLATION - FRONT
(1) Install the front park brake cable to the vehi-
cle.
(2) Clip the cable guides at the frame cross mem-
bers (Fig. 32).
(3) Install the front park brake cable to the hand
brake lever (Fig. 29).
(4) Reconnect the front park brake cable to the
pulley unit (Fig. 32).

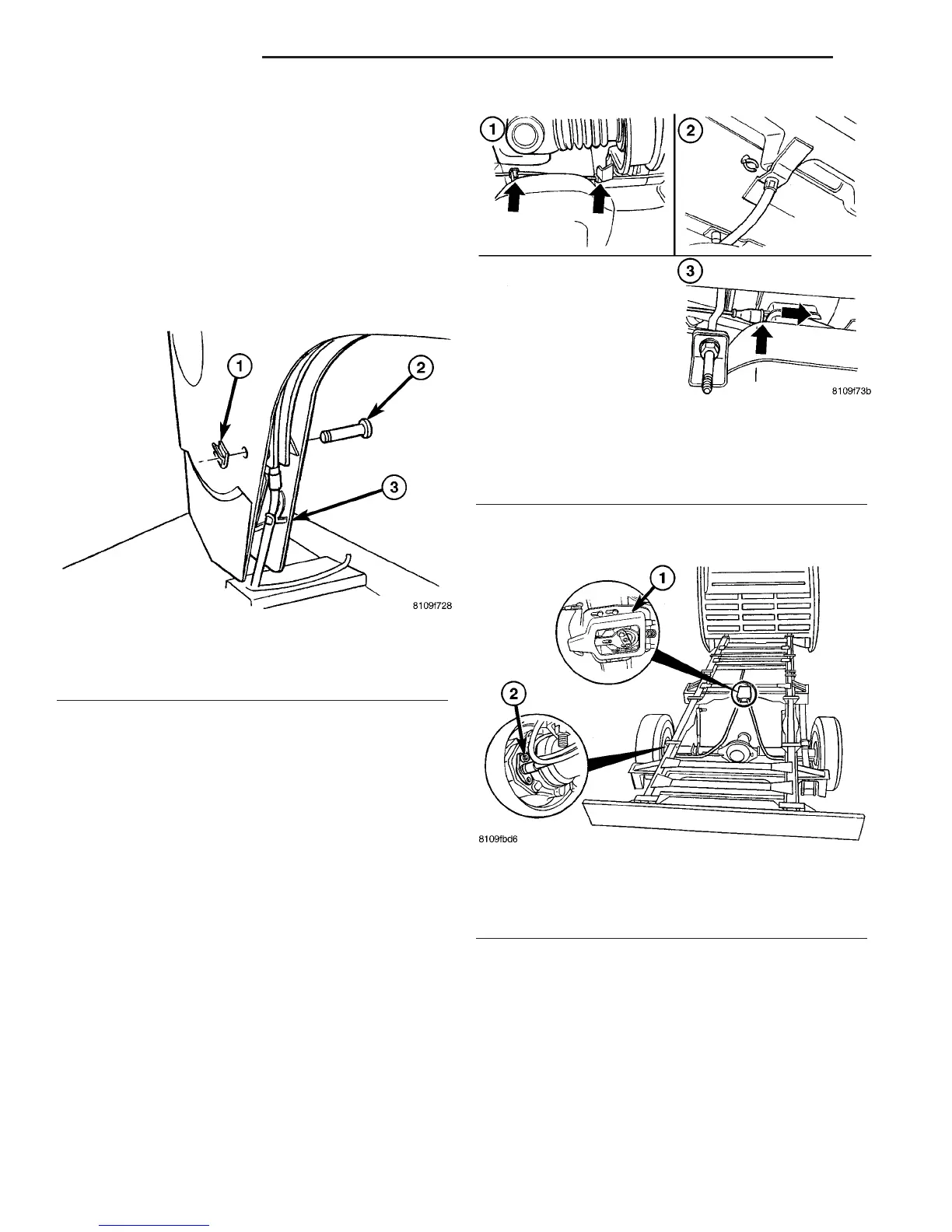

Fig. 29 FRONT PARK BRAKE CABLE AT LEVER
1 - LOCKING CLIP
2 - LOCKING PIN
3 - CABLE STRAP
Fig. 30 REMOVING FRONT PARK BRAKE CABLE AT
THE VEHICLE
1 - UNCLIP CABLE GUIDES
2 - LOCKING CLIP
3 - LOCKING RING PRESSED TOGETHER
Fig. 31 REAR PARK BRAKE CABLE REMOVE /
INSTALL
1 - PARK BRAKE ADJUSTER
2 - PARK BRAKE CABLE MOUNTING
5 - 24 BRAKES - BASE VA
