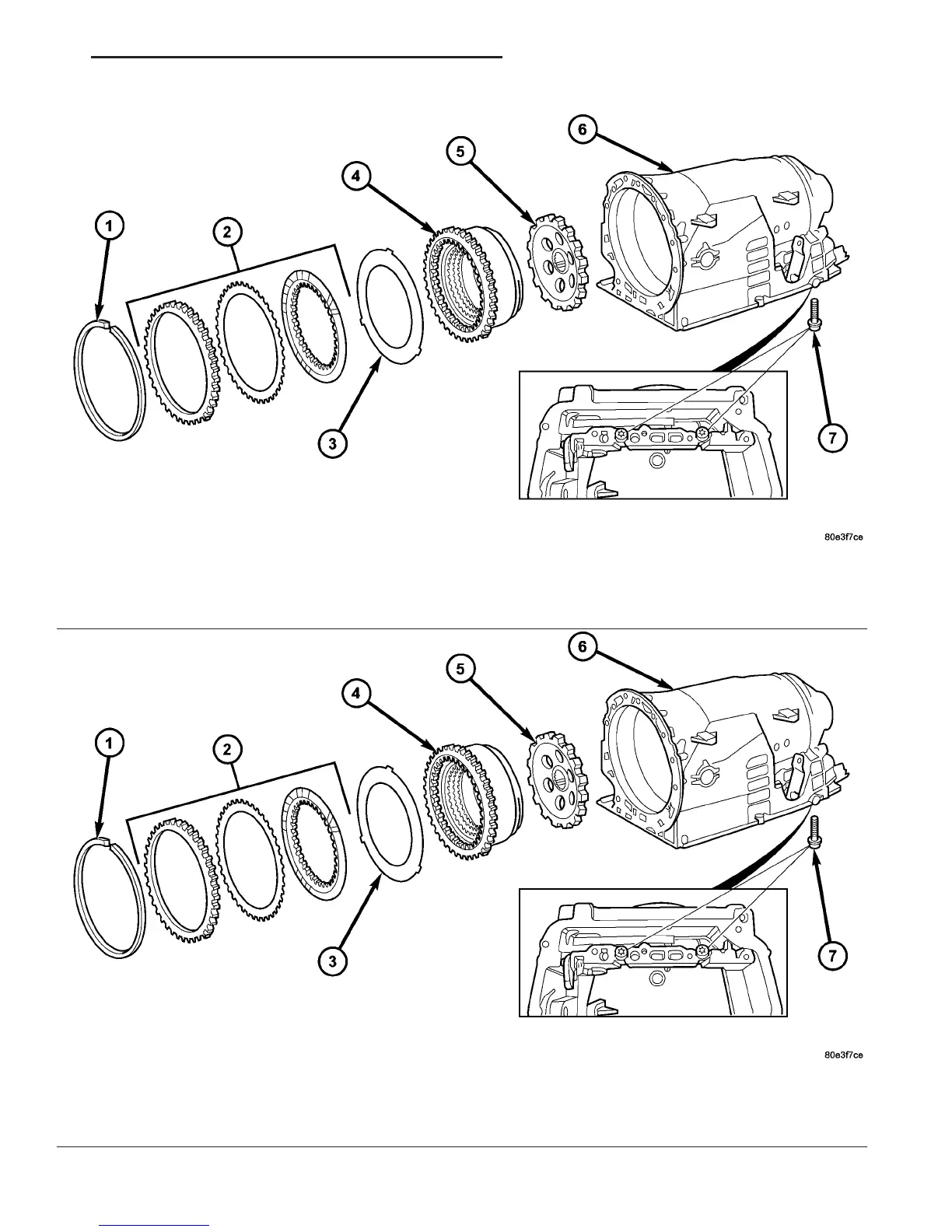

Fig. 41 Remove B2, B3, and Parking Gear

1 - SNAP-RING 5 - PARK GEAR

2 - HOLDING CLUTCH B3 DISCS 6 - TRANSMISSION HOUSING

3 - SPRING WASHER 7 - BOLTS - M8X60

4 - HOLDING CLUTCH B2

Fig. 42 Install B2, B3, and Parking Gear

1 - SNAP-RING 5 - PARK GEAR

2 - HOLDING CLUTCH B3 DISCS 6 - TRANSMISSION HOUSING

3 - SPRING WASHER 7 - BOLTS - M8X60

4 - HOLDING CLUTCH B2

VA AUTOMATIC TRANSMISSION - NAG1 21 - 35
