INSTALLATION
(1) Press center bearing on propeller shaft with
protective caps and washer with Installer 9275 (Fig.
14).
(2) Install snap-ring.
(3) Coat propeller shaft spline with universal
grease.
(4) Push rubber boot onto propeller shaft.
(5) Push together propeller shaft. Pay attention to
alignment markings for installation position.
(6) Ensure rubber seal is correctly installed and
attach new collar clamps.
(7) Install propeller shaft.

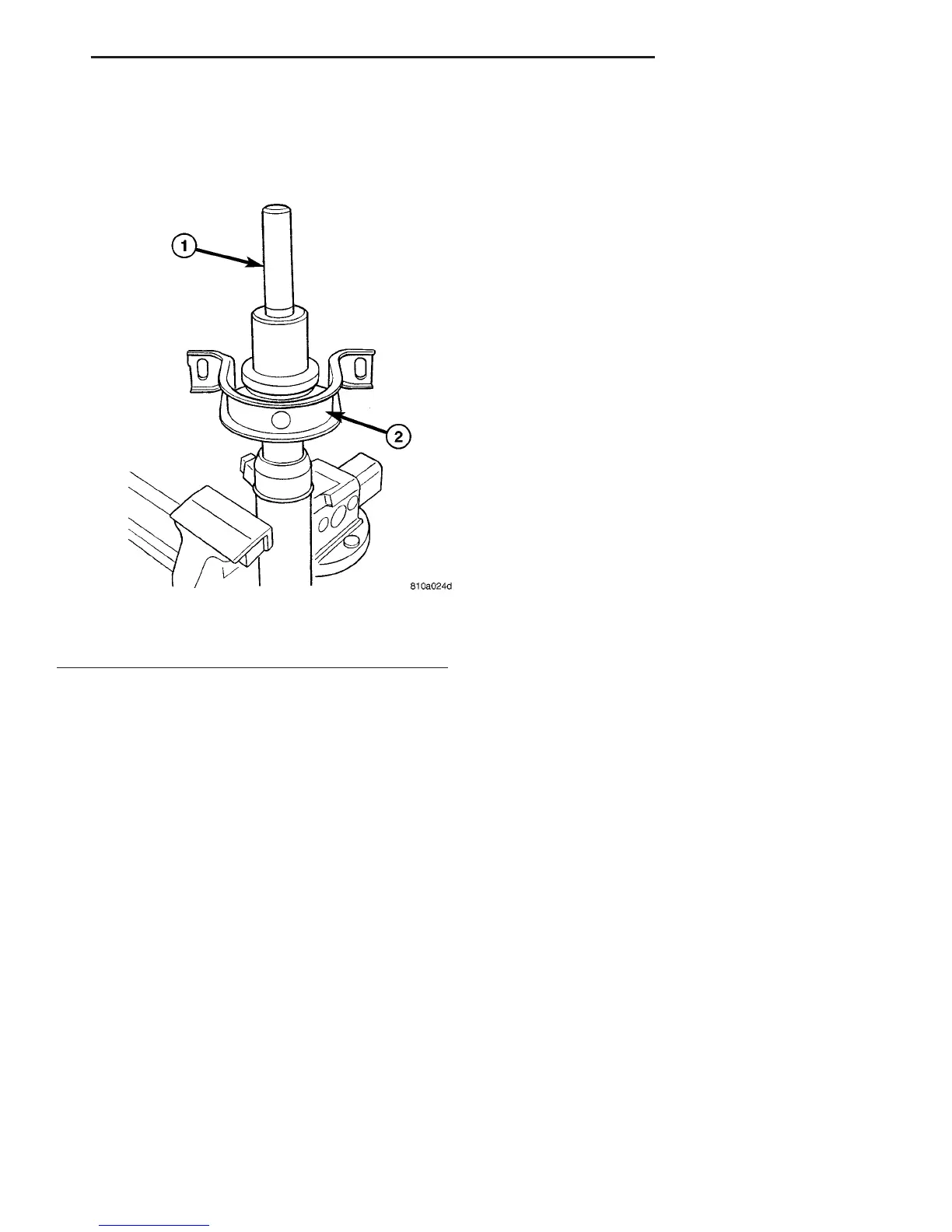

Fig. 14 CENTER BEARING INSTALLATION
1 - INSTALLER
2 - CENTER BEARING
VA PROPELLER SHAFT 3 - 9
CENTER BEARING (Continued)
