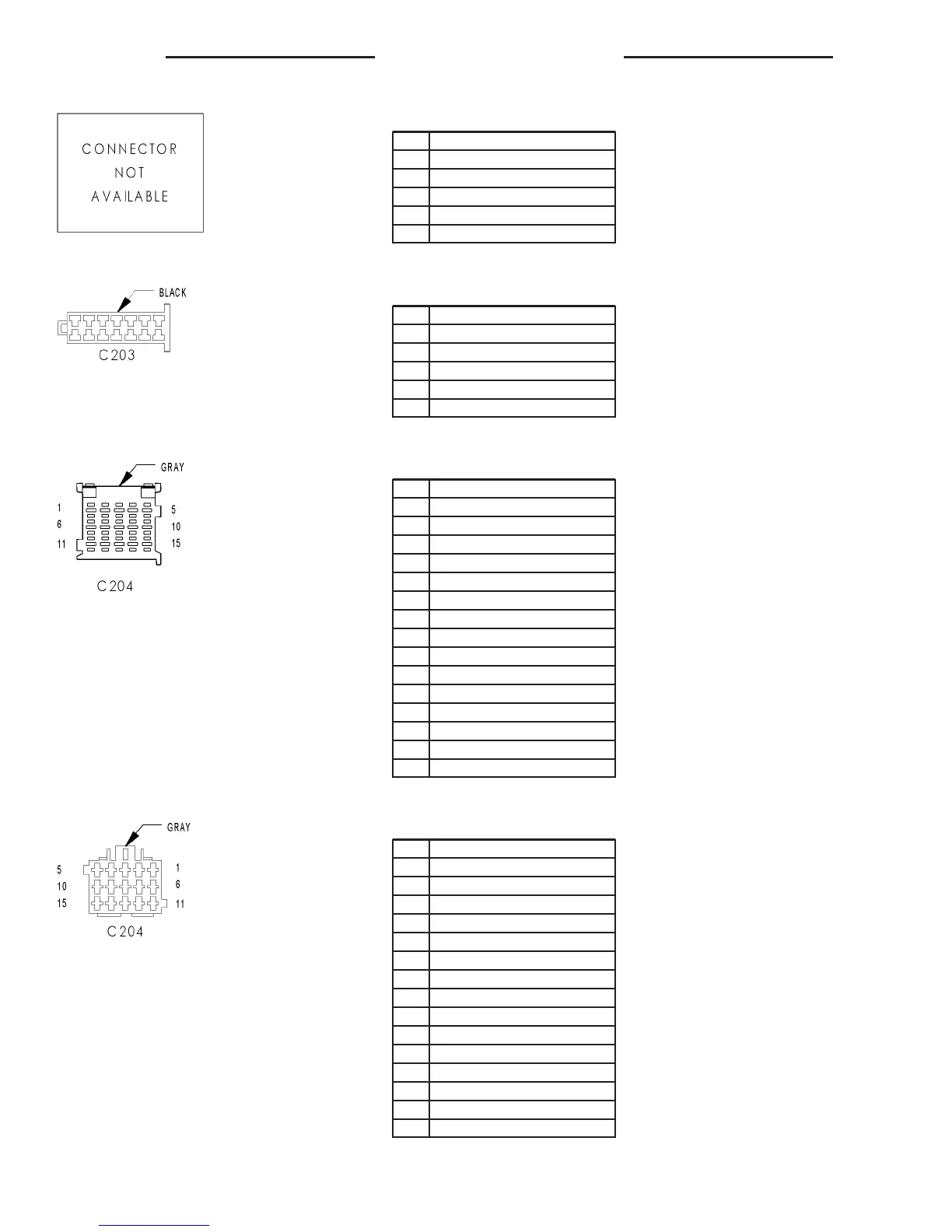

C203 - (DASH SIDE)

CAV CIRCUIT

1 18GY/YL

2 18GY/BR

3 18GY/WT

10 18VT/DG

11 16RD

C203 - BLACK (MAIN BODY SIDE)

CAV CIRCUIT

1 18GY/YL

2 18GY/BR

3 18GY/WT

10 18VT/DG

11 16RD

C204 - GRAY (DASH SIDE)

CAV CIRCUIT

1 18BK/RD

2 18BK/YL

3 20DG/WT

4 20DG

5 18DG/RD

6 18BR/VT

7 16BL

8 16BL/YL

9 16BL/DG

10 18BR/BL

11 20BR/RD

12 20RD/BL

13 16RD/BK

14 14BK/VT

15 16RD

C204 - GRAY (MAIN BODY SIDE)

CAV CIRCUIT

1 18BK/RD

2 18BK/YL

3 20DG/WT

4 20DG

5 18DG/RD

6 18BR/VT

7 16BL

8 16BL/YL

9 16BL/DG

10 18BR/BL

11 20BR/RD

12 20RD/BL

13 16RD/BK

14 4BK/VT

15 16RD

8W - 80 - 16 8W-80 CONNECTOR PIN-OUTS VA
