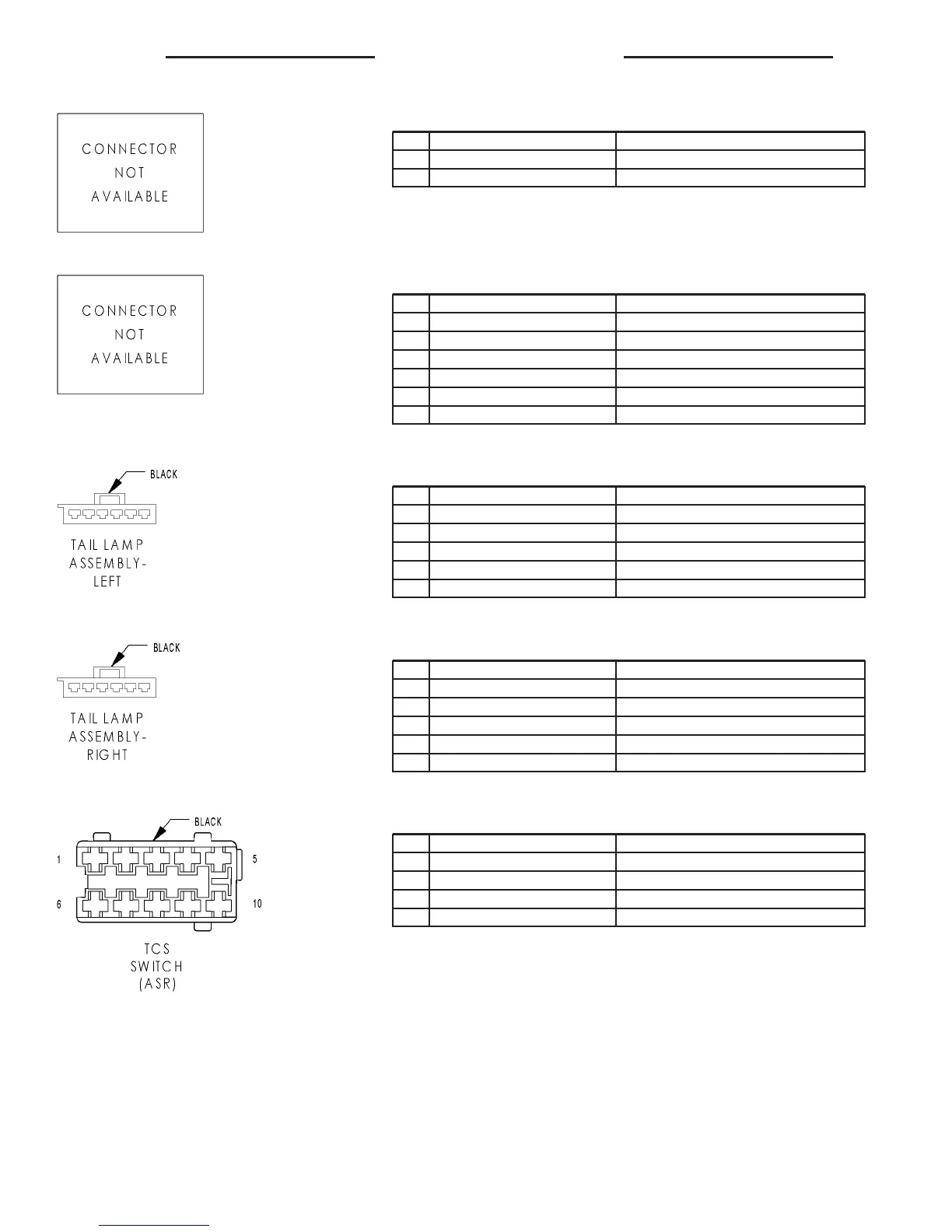

SPEAKER-RIGHT REAR
CAV CIRCUIT FUNCTION
1 16BR/GY SPEAKER-RIGHT REAR (+)
2 16WT/GY SPEAKER-RIGHT REAR (-)
SPEED CONTROL SWITCH
CAV CIRCUIT FUNCTION
1 18GY OFF SIGNAL
2 18BK VERIFICATION SIGNAL
3 18BL RESUME SIGNAL
4 18YL ACCEL/SET SIGNAL
5 18DG DECEL/SET SIGNAL
6 18RD S/C SWITCH 12 VOLT SUPPLY
TAIL LAMP ASSEMBLY-LEFT - BLACK
CAV CIRCUIT FUNCTION
2 16GY/BK LEFT LAMP RELAY OUTPUT
3 16BK/RD BRAKE LAMP SWITCH OUTPUT
4 16WT/RD BACK-UP LAMP
5 16BK/WT LEFT TURN SIGNAL
6 16BR GROUND
TAIL LAMP ASSEMBLY-RIGHT - BLACK
CAV CIRCUIT FUNCTION
2 16GY/RD RIGHT LAMP RELAY OUTPUT
3 16BK/RD BRAKE LAMP SWITCH OUTPUT
4 16WT/RD BACK-UP LAMP
5 16BK/DG RIGHT TURN SIGNAL
6 16BR GROUND
TCS SWITCH (ASR) - BLACK
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
3 18BK/BL TCS SWITCH (ASR) SENSE
7 16BK/BL/DG S201 COMMON CIRCUIT
10 16BR GROUND
8W - 80 - 60 8W-80 CONNECTOR PIN-OUTS VA
