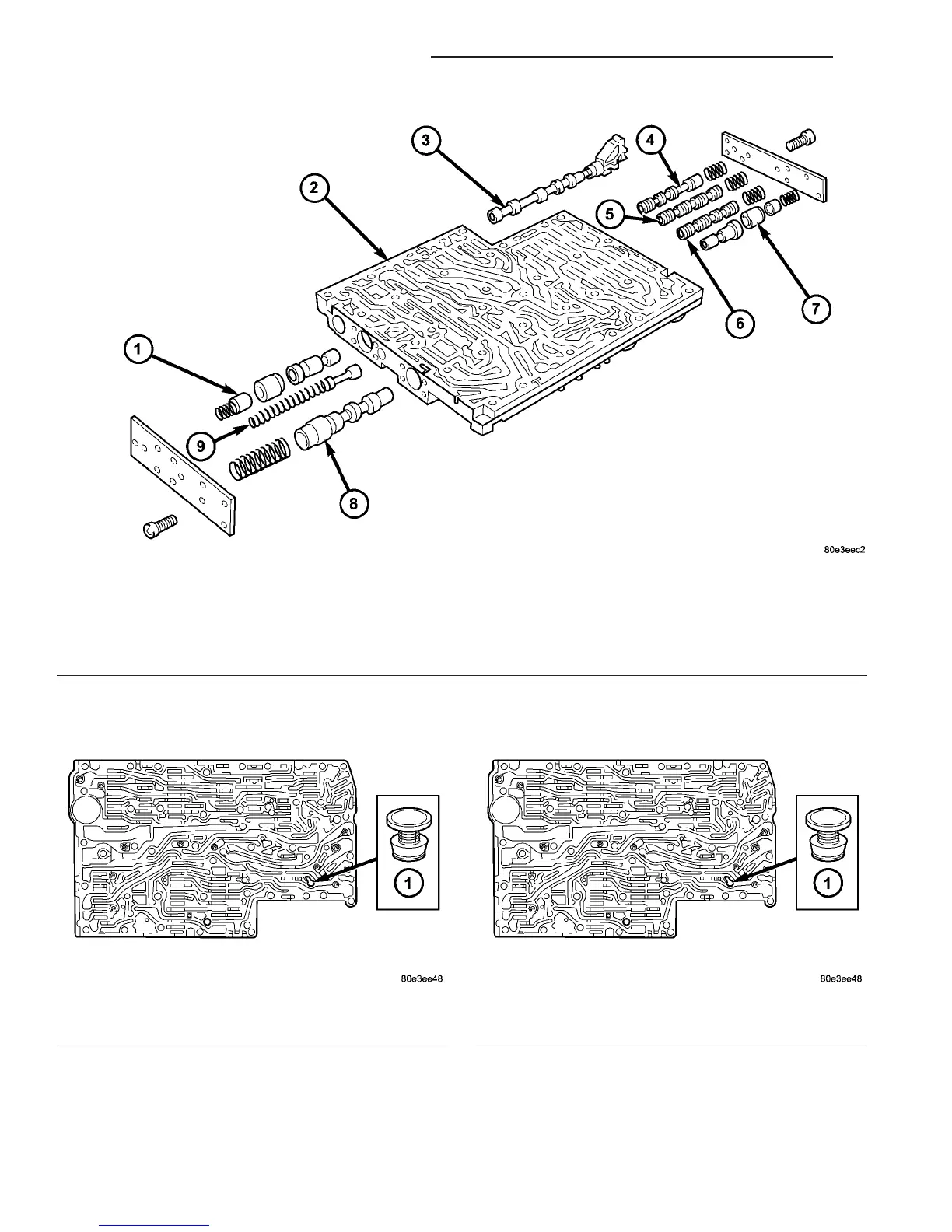

Fig. 120 Valve Housing Components
1 - 2-3 OVERLAP REGULATING VALVE, SLEEVE, AND PISTON 6 - 3-4 SHIFT PRESSURE SHIFT VALVE
2 - VALVE HOUSING 7 - 3-4 OVERLAP REGULATING VALVE, SLEEVE, AND PISTON
3 - SELECTOR VALVE 8 - OPERATING PRESSURE REGULATING VALVE
4 - 3-4 HOLDING PRESSURE SHIFT VALVE 9 - LUBRICATING PRESSURE REGULATING VALVE
5 - 3-4 COMMAND VALVE
Fig. 121 Pressure Feed Valve Location
1 - PRESSURE FEED VALVE
Fig. 122 Pressure Feed Valve Location
1 - PRESSURE FEED VALVE
21 - 96 AUTOMATIC TRANSMISSION - NAG1 VA
ELECTROHYDRAULIC UNIT (Continued)
