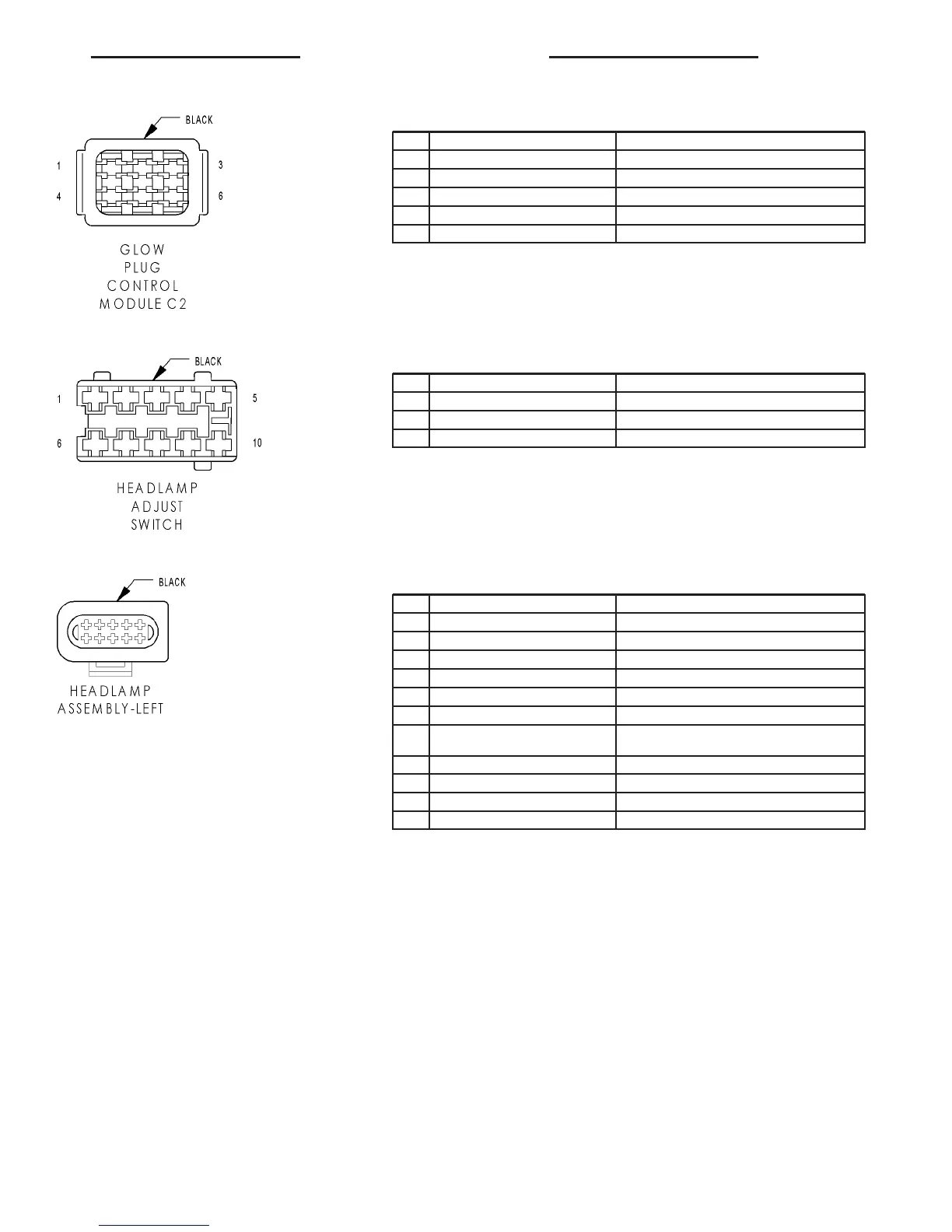

GLOW PLUG CONTROL MODULE C2 - BLACK
CAV CIRCUIT FUNCTION
1 14BK/DG GLOW PLUG NO. 1 SUPPLY VOLTAGE
2 14BK/YL GLOW PLUG NO. 2 SUPPLY VOLTAGE
3 14BK/RD GLOW PLUG NO. 3 SUPPLY VOLTAGE
4 14BK/VT GLOW PLUG NO. 4 SUPPLY VOLTAGE
5 14BK/BL GLOW PLUG NO. 5 SUPPLY VOLTAGE
HEADLAMP ADJUST SWITCH - BLACK
CAV CIRCUIT FUNCTION
3 16BR GROUND
5 16VT/WT HEADLAMP ADJUST SWITCH OUTPUT
9 16GY/DG/RD LAMP DRIVER
HEADLAMP ASSEMBLY-LEFT - BLACK
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16YL/WT FOG LAMP RELAY OUTPUT
3 16BR GROUND
4 16BR GROUND
5 16VT/WT HEADLAMP ADJUST SWITCH OUTPUT
6 16BK/WT LEFT TURN SIGNAL
7 18YL/DG (DRL) DAYTIME RUNNING LAMPS RELAY-LEFT SIDE OUT-
PUT
7 18YL (EXCEPT DRL) HEADLAMP SWITCH OUTPUT
8 16BR GROUND
9 16WT FUSED HIGH BEAM SWITCH OUTPUT
10 16GY/BK LEFT LAMP RELAY OUTPUT
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 39
