(32) Install oil filter (4) (Fig. 56).
(33) Install oil pan (5) (Fig. 56). Tighten the bolts
to 8 N·m (71 in.lbs.).
(34) Install guide bushing (12) (Fig. 56).
(35) Install the torque converter (Fig. 57).
INSTALLATION
(1) Coat outside of the torque converter hub with
long-term grease, install the torque converter into
the transmission.
(2) Measure distance 9A9 (Fig. 58) from torque con-
verter to transmission housing. If the torque con-
verter is properly installed, distance “A” will be 55
mm (2.17 in.).

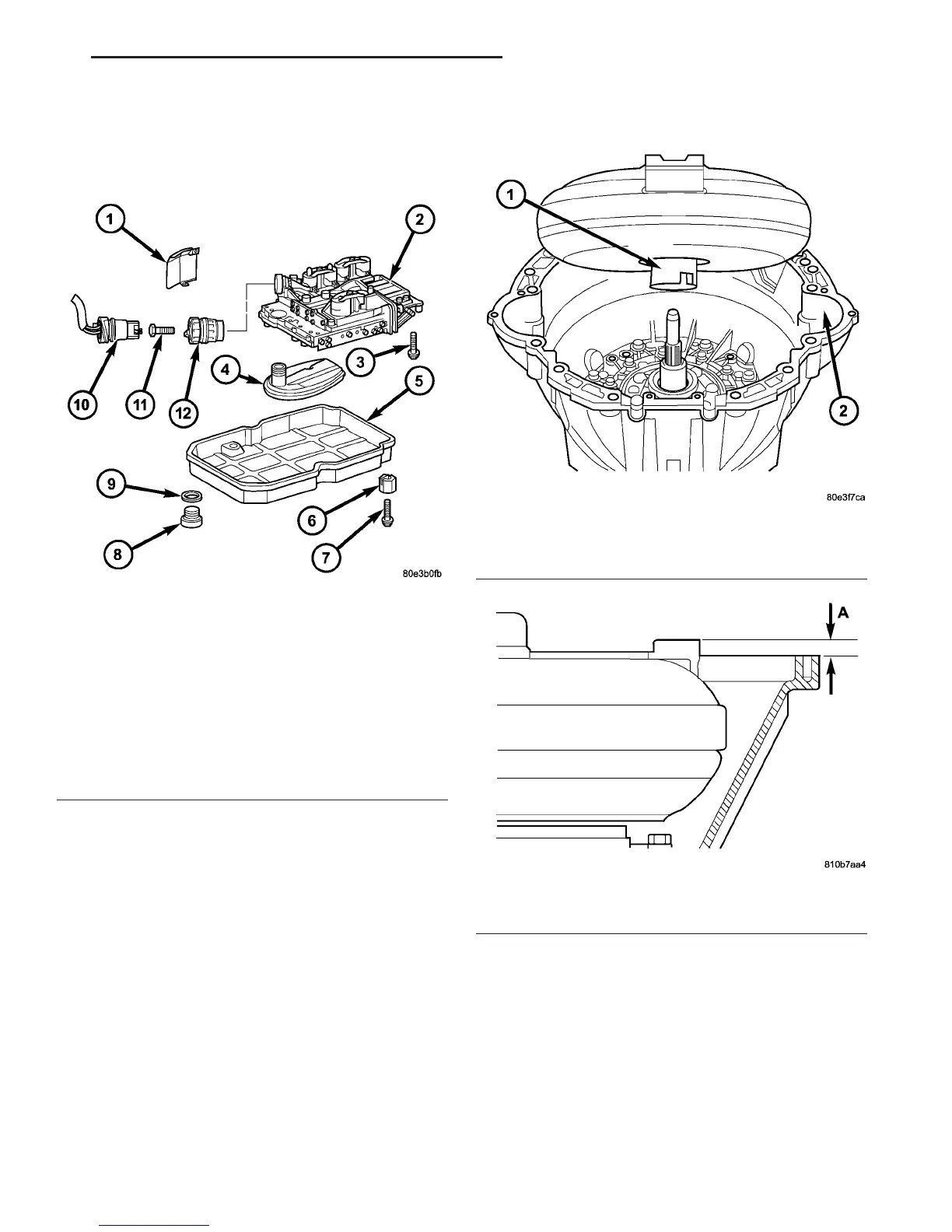

Fig. 56 Install Electrohydraulic Unit
1 - HEAT SHIELD
2 - ELECTROHYDRAULIC UNIT
3 - BOLT
4 - OIL FILTER
5 - OIL PAN
6 - CLAMPING ELEMENT
7 - BOLT
8 - DRAIN PLUG
9 - DRAIN PLUG GASKET
10 - 13-PIN PLUG CONNECTOR
11 - BOLT
12 - GUIDE BUSHING
Fig. 57 Install Torque Converter
1 - TORQUE CONVERTER
2 - CONVERTER HOUSING
Fig. 58 Torque Converter Installation Depth
A - TORQUE CONVERTER INSTALLED DISTANCE
VA AUTOMATIC TRANSMISSION - NAG1 21 - 41
AUTOMATIC TRANSMISSION - NAG1 (Continued)
