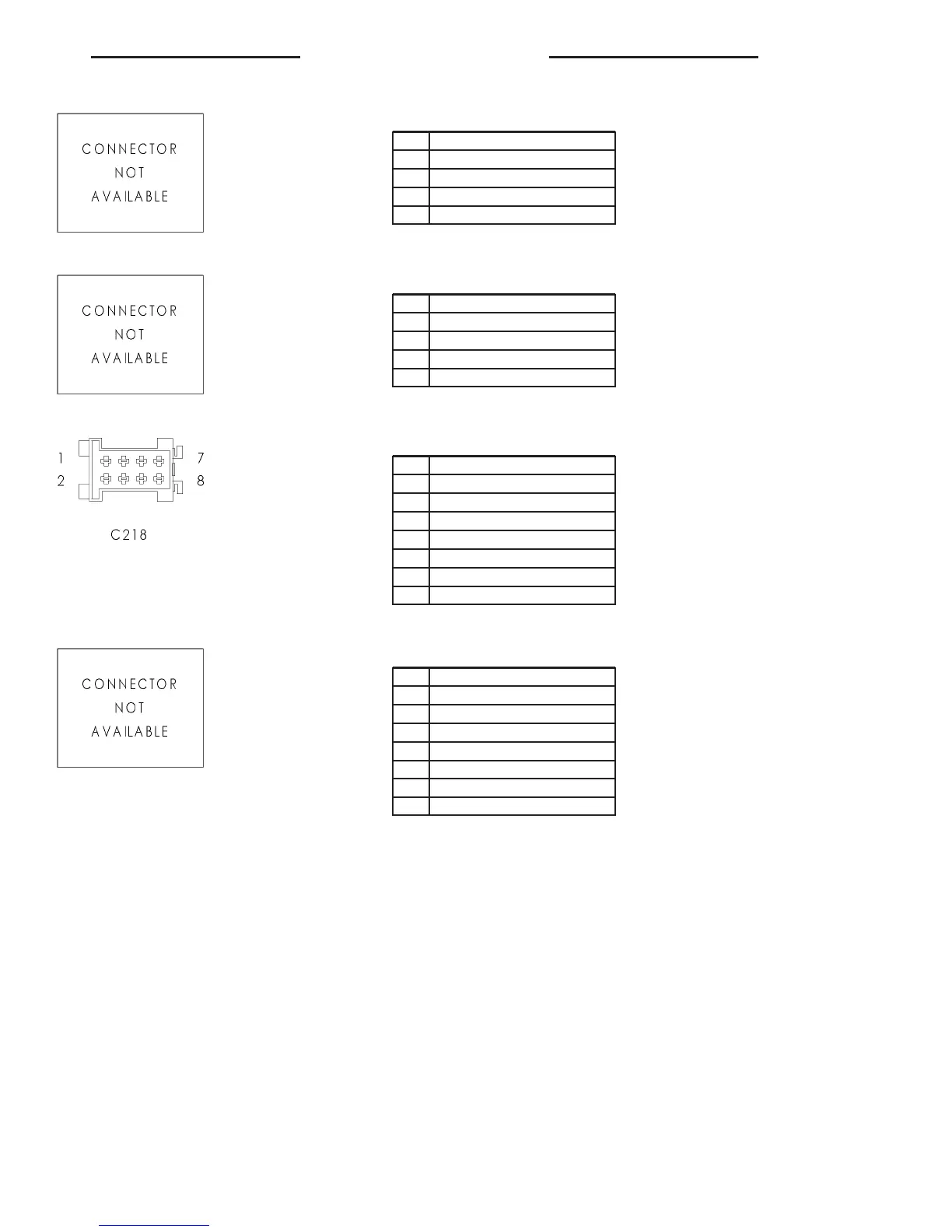

C217 - (CABIN SIDE)

CAV CIRCUIT

1 16RD/YL

2 16YL

3 16DG

4 16YL

C217 - (MAIN BODY SIDE)

CAV CIRCUIT

1 16RD/YL

2 16YL

3 16DG

4 16YL

C218 - (CABIN SIDE)

CAV CIRCUIT

1 16BR/WT

2 16BR/YL

3 16RD/DG

4 16DG/YL

5 20DG/BK

6 20GY/BK

7 20DG/WT/BL

C218 - (MAIN BODY SIDE)

CAV CIRCUIT

1 16BR/WT

2 16BR/YL

3 16RD/DG

4 16DG/YL

5 20DG/BK

6 20GY/BK

7 20DG/WT/BL

VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 21
