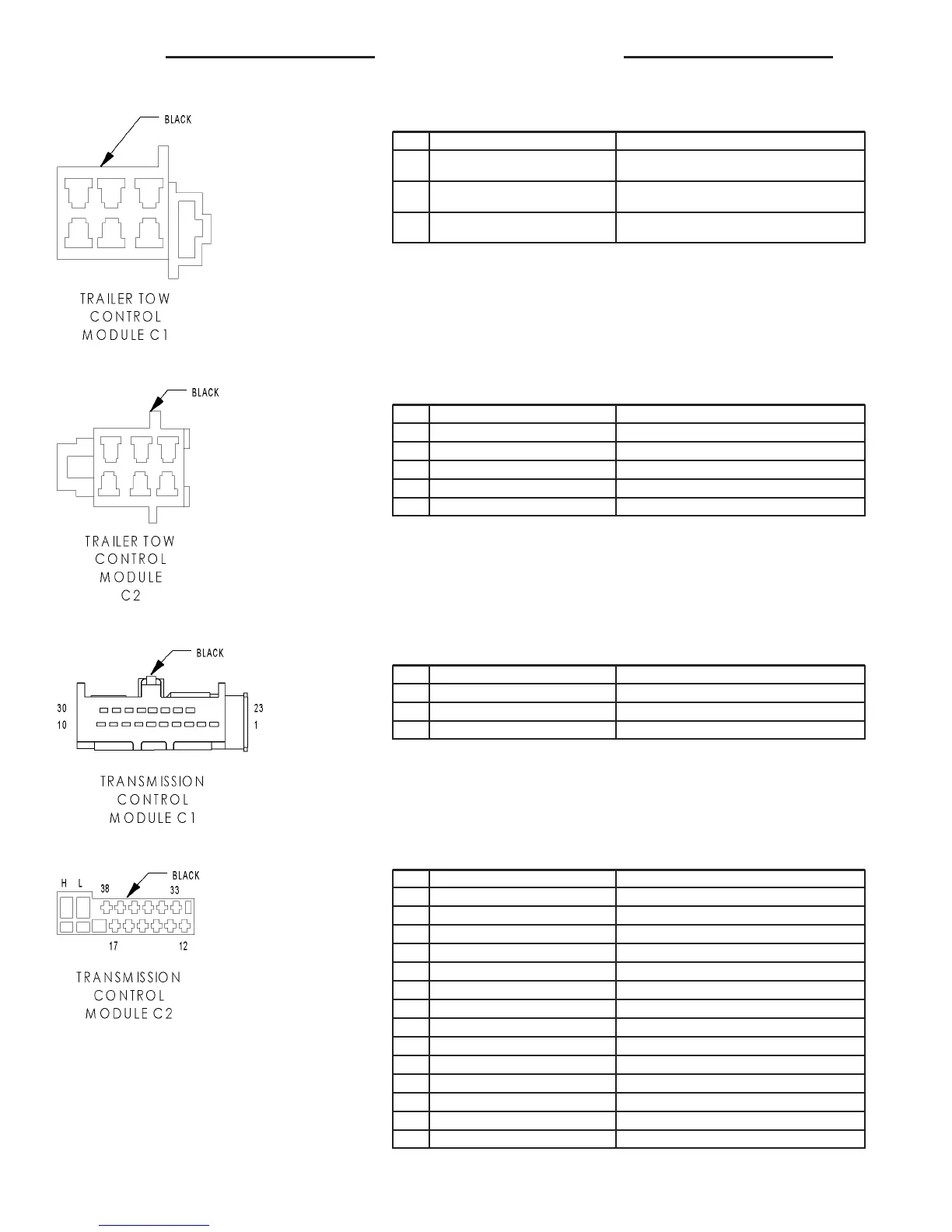

TRAILER TOW CONTROL MODULE C1 - BLACK
CAV CIRCUIT FUNCTION
C 16BK/RD/WT TT CONTROL MODULE C1 CAV C TO TT CONNEC-
TOR CAV 10
D 16BK/DG/GY TT CONTROL MODULE C1 CAV D TO TT CONNEC-
TOR CAV 2
F 14RD/BK TT CONTROL MODULE C1 CAV F TO TT CONNECOTR
CAV 7
TRAILER TOW CONTROL MODULE C2 - BLACK
CAV CIRCUIT FUNCTION
A 16BK/RD BRAKE LAMP SWITCH OUTPUT
B 16BK/DG RIGHT TURN SIGNAL
C 16BR GROUND
D 14RD FUSED B(+)
E 16BK/WT LEFT TURN SIGNAL
TRANSMISSION CONTROL MODULE C1 - BLACK
CAV CIRCUIT FUNCTION
1 20BL K-TCM
29 16BK/DG TRANSMISSION RELAY OUTPUT
30 18BR GROUND
TRANSMISSION CONTROL MODULE C2 - BLACK
CAV CIRCUIT FUNCTION
12 20BL/GY N2 INPUT SPEED SENSOR
13 20BK/BL SENSOR SUPPLY VOLTAGE
14 16WT 1-2/4-5 SOLENOID CONTROL
15 16YL 3-4 SOLENOID CONTROL
16 16WT/BL 2-3 SOLENOID CONTROL
17 16YL/BL TCC SOLENOID CONTROL
33 20PK SENSOR GROUND
34 20GY/BL TEMPERATURE SENSOR-P/N SWITCH
35 20BL/DG N3 INPUT SPEED SENOR
36 16BR/GY MODULATION PRESSURE SOLENOID CONTROL
37 16BK/RD SHIFT PRESSURE SOLENOID CONTROL
38 16BK SOLENOID SUPPLY VOLTAGE
H 20DG/WT CAN C BUS (+)
L 20DG CAN C BUS (-)
8W - 80 - 62 8W-80 CONNECTOR PIN-OUTS VA
