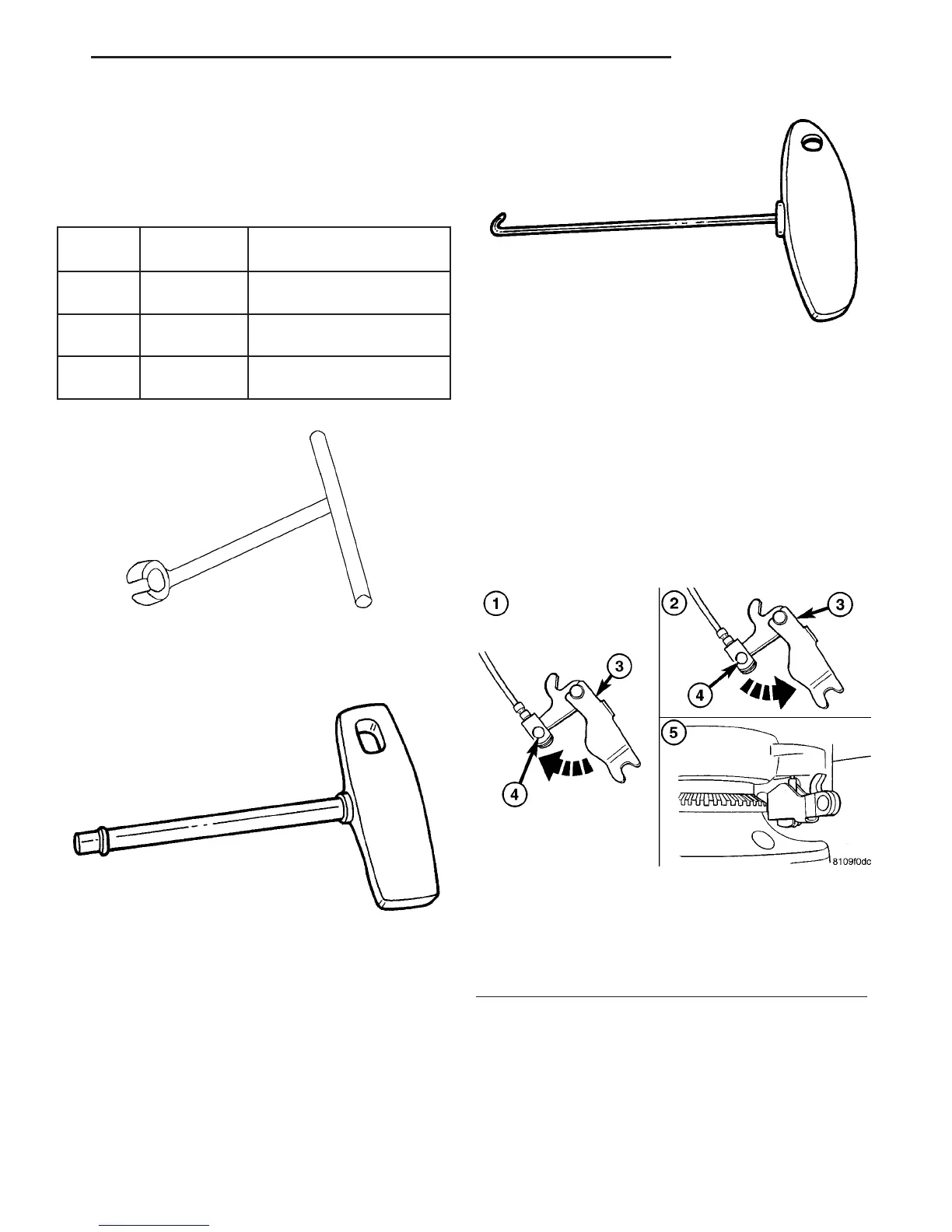

SPECIAL TOOLS
PARK BRAKE
SPECIAL TOOL CROSS REFERENCE CHART
MB
TOOL #
MILLER
TOOL #
DESCRIPTION
116 589
01 62 00
9280 RETURN SPRING
PULLING HOOK
112 589
09 61 00
9281 RETAINING SPRING
TOOL
901 589
00 63 00
9289 RETAINING CLIP
RELEASE TOOL
CABLE TENSIONER
REMOVAL
NOTE: Observe the installation position of the
brake control cable lock, for a reference on instal-
lation.
(1) Open the brake control cable lock (Fig. 28).
(2) Press out the safety bolt and remove the brake
control cable lock (Fig. 28).
INSTALLATION
(1) Push the brake control cable lock onto the
brake cable (Fig. 28).
(2) Insert the safety bolt and snap shut the brake
control cable lock.Observe the installation posi-
tion of the brake control cable lock (Fig. 28).
RETAINING CLIP RELEASE TOOL - 9289
RETAINING SPRING TOOL - 9281
RETURN SPRING PULLING HOOK - 9280
Fig. 28 CONTROL CABLE LOCK
1 - BRAKE CABLE CONTROL LOCK OPEN
2 - BRAKE CABLE CONTROL LOCK CLOSED
3 - BRAKE CONTROL CABLE LOCK
4 - SAFETY BOLT
5 - INSTALLATION POSITION OF BRAKE CONTROL CABLE
LOCK
VA BRAKES - BASE 5 - 23
PARKING BRAKE (Continued)
