DOORS - SLIDING
TABLE OF CONTENTS
page page
EXTERIOR HANDLE
REMOVAL .............................36
INSTALLATION .........................36
INSIDE HANDLE ACTUATOR
REMOVAL .............................37
INSTALLATION .........................37
UPPER ROLLER ARM
REMOVAL .............................37
INSTALLATION .........................37
CENTER ROLLER ARM
REMOVAL .............................37
INSTALLATION .........................38
LOWER ROLLER ARM
REMOVAL .............................38
INSTALLATION .........................38
CENTER TRACK
REMOVAL .............................38
INSTALLATION .........................39
LATCH / LOCK CONTROL
REMOVAL .............................39
INSTALLATION .........................40
REAR LATCH
REMOVAL .............................40
INSTALLATION .........................40
REAR LATCH STRIKER
REMOVAL .............................41
INSTALLATION .........................41
SLIDING DOOR
REMOVAL .............................41
DISASSEMBLY .........................42
ASSEMBLY ............................43
INSTALLATION .........................44
ADJUSTMENTS
ADJUSTMENT ........................44
STABILIZER
REMOVAL .............................45
INSTALLATION .........................45
TRIM PANEL
REMOVAL .............................46
INSTALLATION .........................46
DOOR GLASS
REMOVAL .............................46
INSTALLATION .........................46
EXTERIOR HANDLE
REMOVAL
(1) Remove trim cap. (Fig. 1)
(2) Remove bolt.
(3) Push handle back and remove.
INSTALLATION
(1) Install handle into door opening and push back
so the three catch points lock in place on both sides.
(Fig. 1)
(2) Install bolt and tighten to 10 N·m (89 in. lbs.).
(3) Install trim cap.

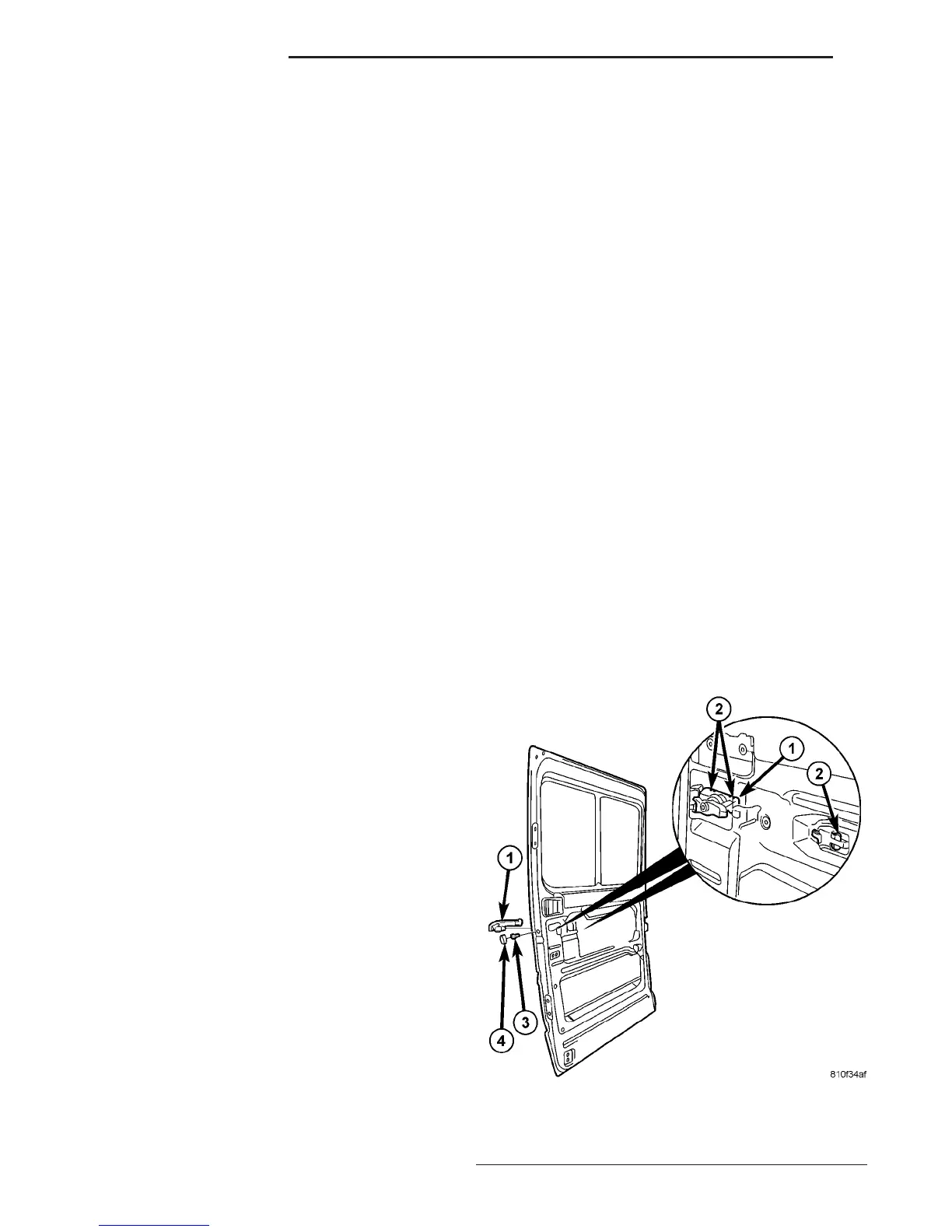

Fig. 1 EXTERIOR HANDLE
1 - EXTERIOR HANDLE
2 - CATCH POINTS
3 - BOLT
4 - TRIM CAP
23 - 36 DOORS - SLIDING VA
