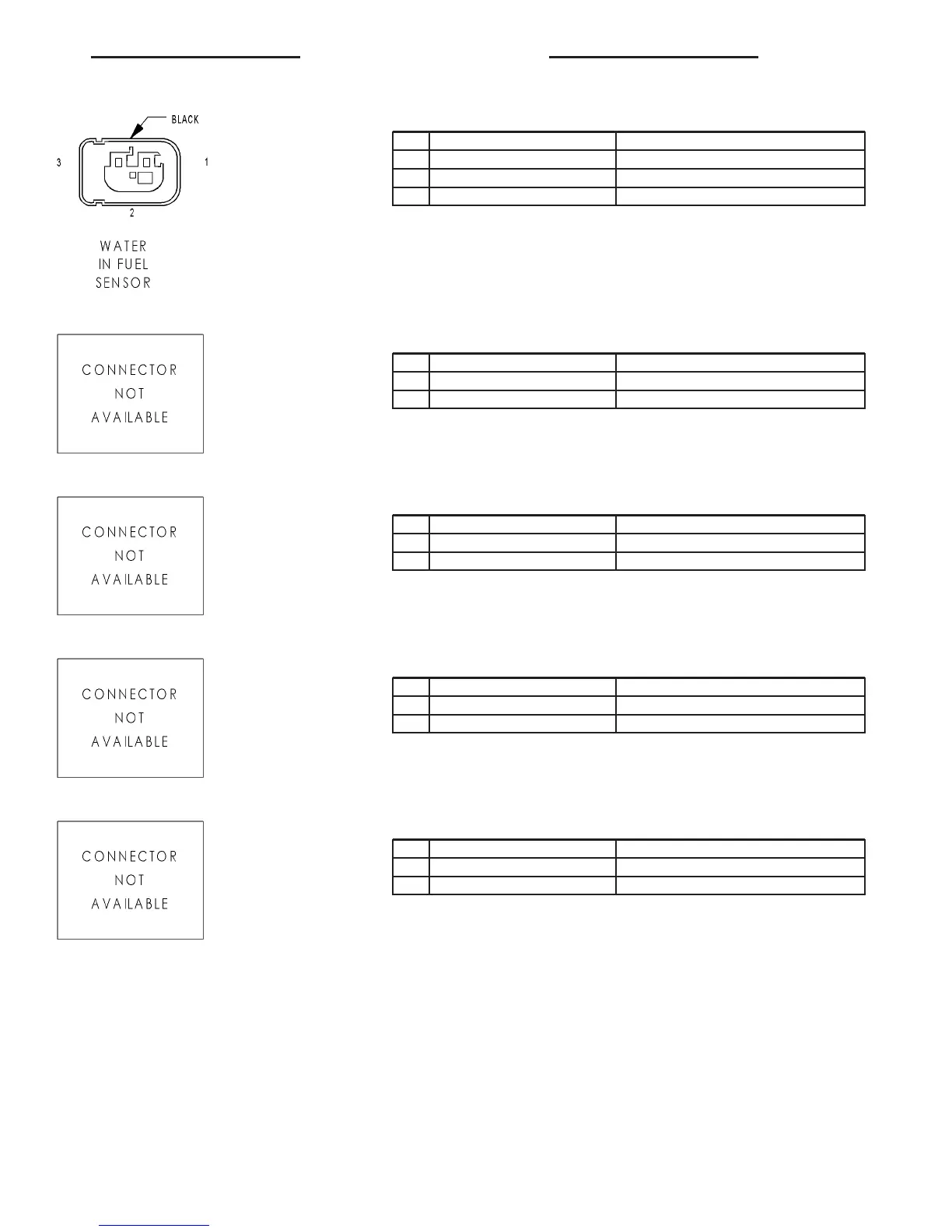

WATER IN FUEL SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 18BR SENSOR GROUND
2 18BR/RD WATER IN FUEL SENSOR 12 VOLT SUPPLY
3 18BK/YL WATER IN FUEL SENSOR SIGNAL
WHEEL SPEED SENSOR-LEFT FRONT
CAV CIRCUIT FUNCTION
1 18BK LEFT FRONT WHEEL SPEED SENSOR (+)
2 18BR LEFT FRONT WHEEL SPEED SENSOR (-)
WHEEL SPEED SENSOR-LEFT REAR
CAV CIRCUIT FUNCTION
1 18WT LEFT REAR WHEEL SPEED SENSOR (+)
2 18BR LEFT REAR WHEEL SPEED SENSOR (-)
WHEEL SPEED SENSOR-RIGHT FRONT
CAV CIRCUIT FUNCTION
1 18BK RIGHT FRONT WHEEL SPEED SENSOR (+)
2 18BR RIGHT FRONT WHEEL SPEED SENSOR (-)
WHEEL SPEED SENSOR-RIGHT REAR
CAV CIRCUIT FUNCTION
1 18YL RIGHT REAR WHEEL SPEED SENSOR (+)
2 18BR RIGHT REAR WHEEL SPEED SENSOR (-)
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 65
