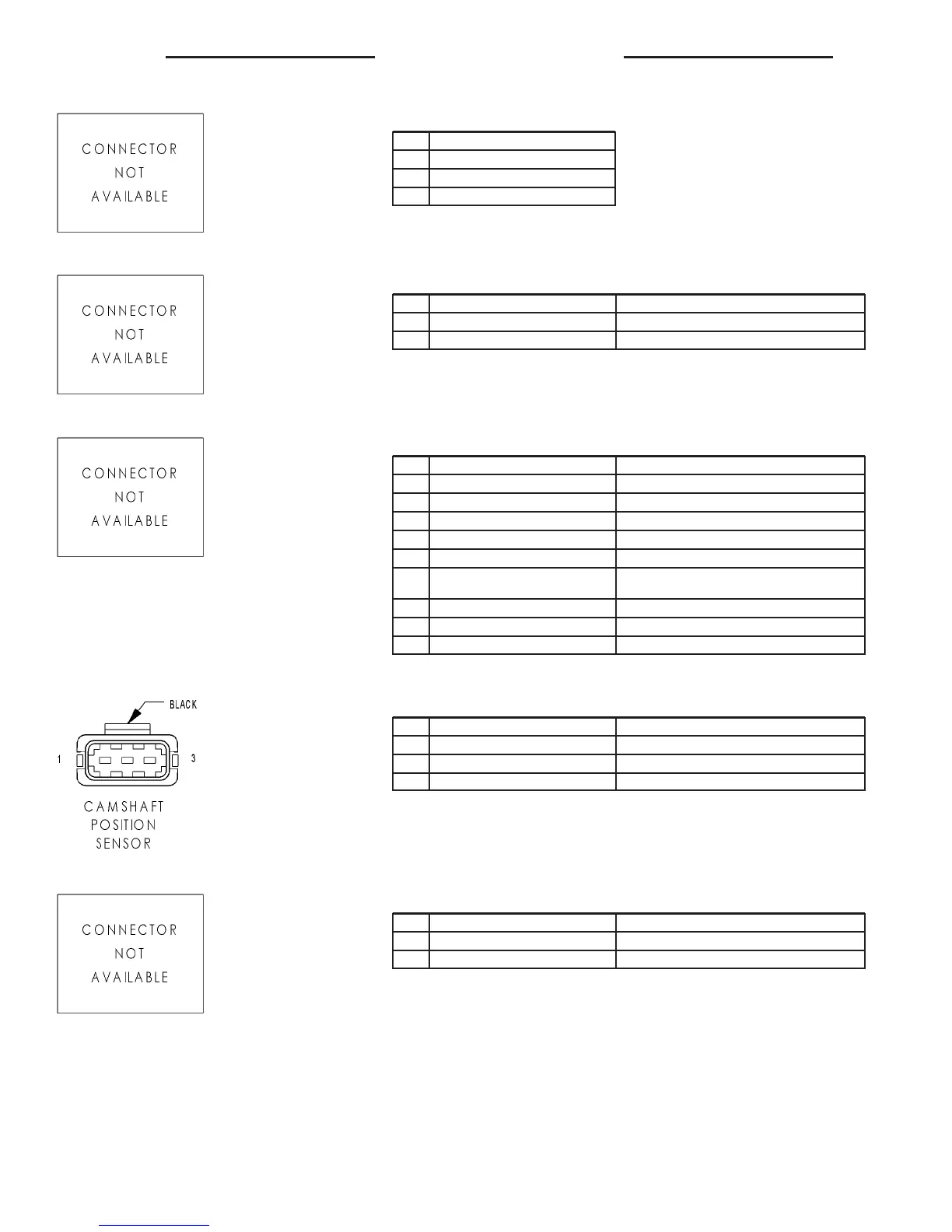

C225 - (DASH SIDE)
CAV CIRCUIT
1 12RD/BL
2 12BL
3 16RD
CABIN HEATER ASSEMBLY C1
CAV CIRCUIT FUNCTION
B 16BL/YL (CABIN HEATER MODULE) CIRCULATION PUMP RELAY HIGH SIDE CONTROL
B 16BL/YL (REST SYSTEM) AUXILIARY HEATER CONTROL
CABIN HEATER ASSEMBLY C2
CAV CIRCUIT FUNCTION
1 14RD FUSED B(+)
2 14BR GROUND
3 16BL/YL (PROGRAM TIMER) FAN STAGE 1 RELAY HIGH SIDE CONTROL
4 16DG DOSING PUMP CONTROL
5 16BL/RD K-IC/ATC/HBM/CHM
6 16BK/BL/DG (EXCEPT PROGRAM
TIMER)
FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
6 16BK (PROGRAM TIMER) HEATER BOOSTER MODE
7 16BL (EXCEPT PROGRAM TIMER) CABIN HEATER CONTROL
7 16YL (PROGRAM TIMER) CABIN HEATER CONTROL
CAMSHAFT POSITION SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 20BR/DG SENSOR GROUND
2 20YL/GY CAMSHAFT POSITION SENSOR SIGNAL
3 18RD/BL CAMSHAFT POSITION SENSOR 12 VOLT SUPPLY
CENTER HIGH MOUNTED STOP LAMP
CAV CIRCUIT FUNCTION
1 16BK/RD BRAKE LAMP SWITCH OUTPUT
2 16BR GROUND
8W - 80 - 24 8W-80 CONNECTOR PIN-OUTS VA
