NOTE: Check O-rings on solenoid valves for dam-
age and replace if necessary.
(6) Bend away retaining lug on stiffening rib on
transmission oil temperature sensor.
(7) Remove electrohydraulic control module (12)
from the shift plate (13).
(8) Note the locations of the major shift valve
group components for assembly reference (Fig. 114).
NOTE: Pay great attention to cleanliness for all
work on the shift plate. Fluffy cloths must not be
used. Leather cloths are particularly good. After dis-
mantling, all parts must be washed and blown out
with compressed-air, noting that parts may be
blown away.
(9) Unbolt leaf spring (5) (Fig. 115).
(10) Unscrew Torx bolts (1) (Fig. 115).
(11) Remove valve housing (2) from valve body (4)
(Fig. 115).

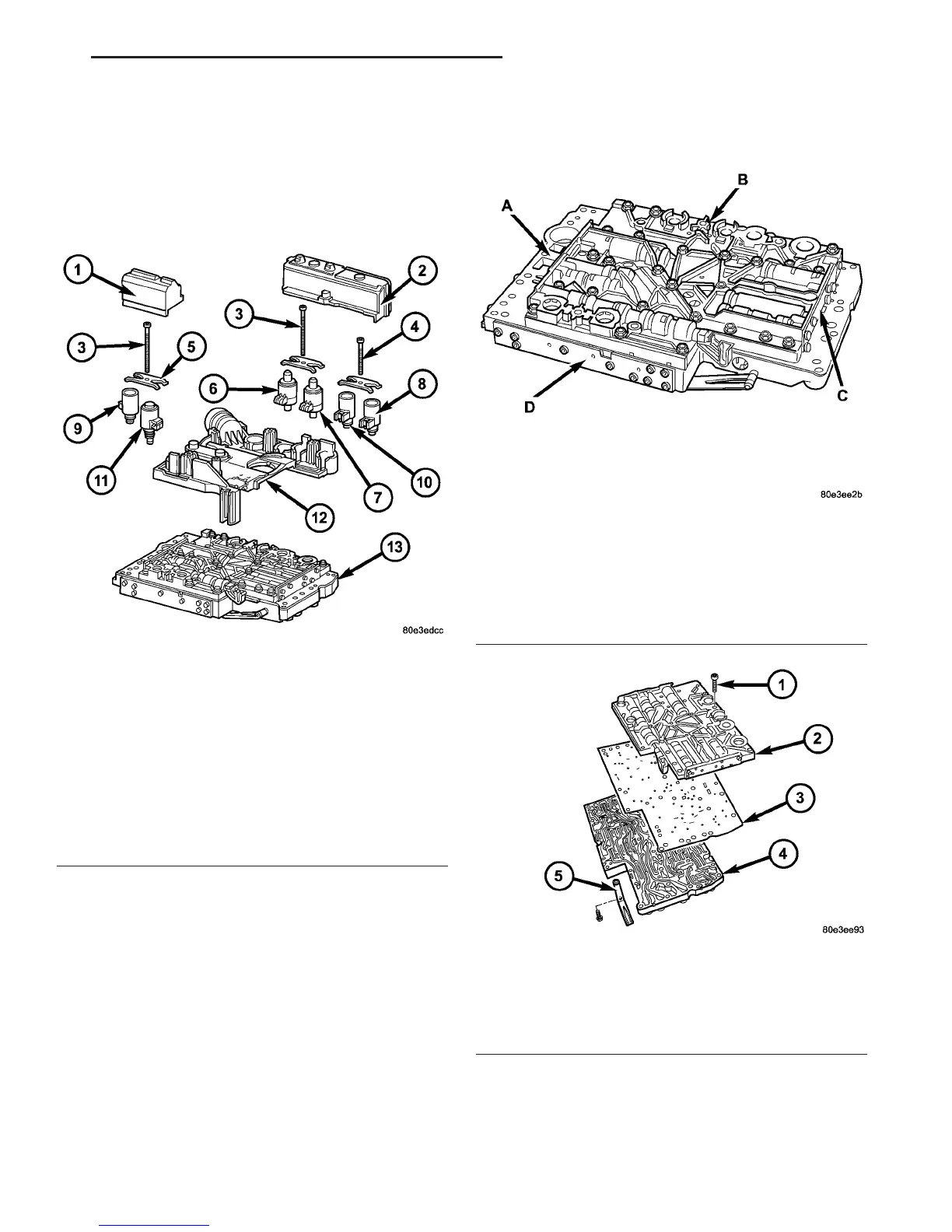

Fig. 113 Electrical Unit Components
1 - SOLENOID CAP
2 - SOLENOID CAP
3 - BOLT - M6X32
4 - BOLT - M6X30
5 - LEAF SPRING
6 - MODULATING PRESSURE REGULATING SOLENOID VALVE
7 - SHIFT PRESSURE REGULATING SOLENOID
8 - 3-4 SHIFT SOLENOID
9 - TORQUE CONVERTER LOCK-UP SOLENOID
10 - 1-2/4-5 SHIFT SOLENOID
11 - 2-3 SHIFT SOLENOID
12 - ELECTRICHYDRAULIC CONTROL MODULE
13 - SHIFT PLATE
Fig. 114 Shift Valve Group Locations
A - OPERATING AND LUBRICATING PRESSURE REGULATING
VALVES AND 2-3 OVERLAP VALVE
B - 1-2/4-5 SHIFT GROUP AND SHIFT, SHIFT VALVE, AND
REGULATING VALVE PRESSURE REGULATING VALVES
C - 3-4 SHIFT GROUP
D - 2-3 SHIFT GROUP, TCC LOCK-UP AND B2 REGULATING
VALVES
Fig. 115 Shift Plate Components
1-BOLTS-29
2 - VALVE HOUSING
3 - SEALING PLATE
4 - VALVE BODY
5 - LEAF SPRING
VA AUTOMATIC TRANSMISSION - NAG1 21 - 93
ELECTROHYDRAULIC UNIT (Continued)
