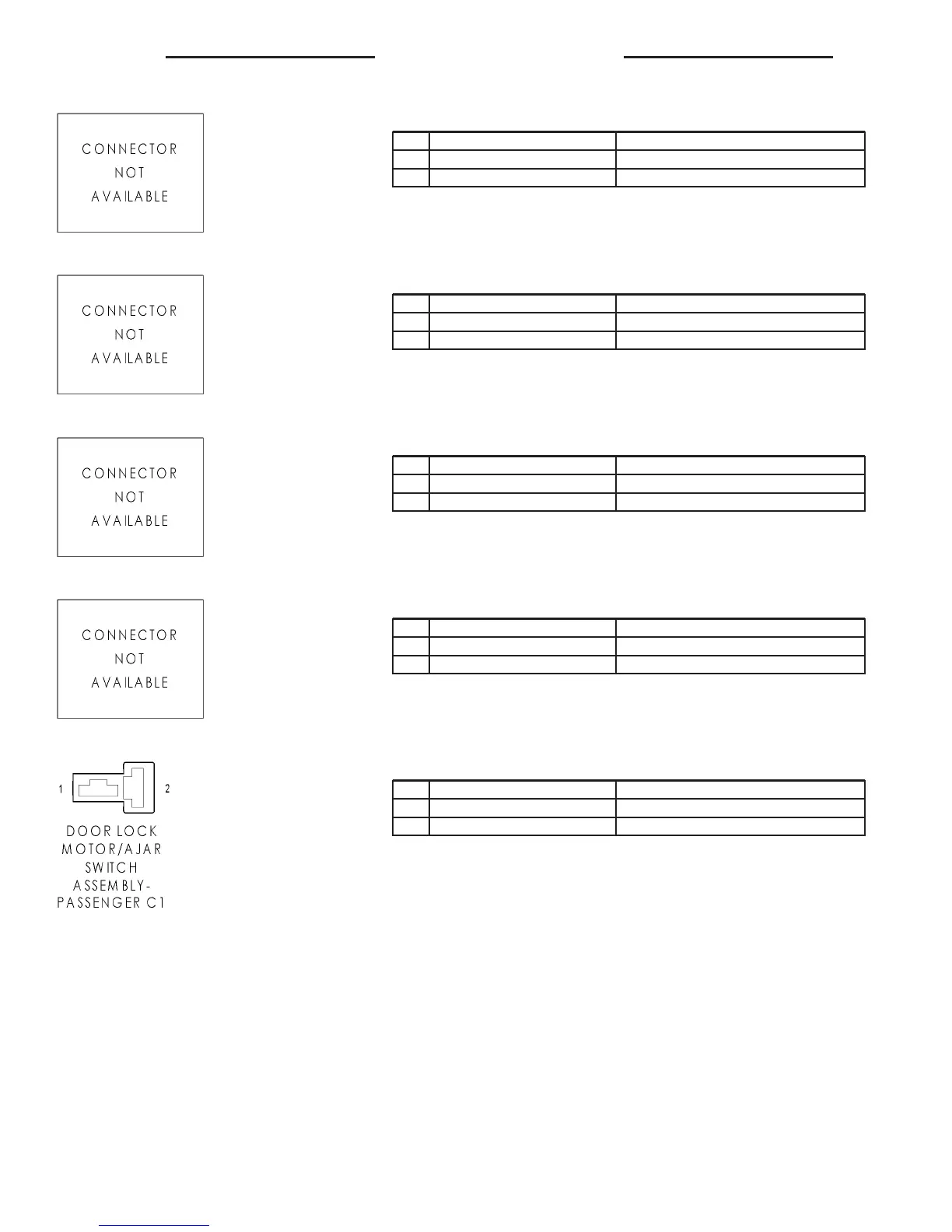

DOOR LOCK MOTOR/AJAR SWITCH ASSEMBLY-DRIVER C1
CAV CIRCUIT FUNCTION
1 16YL/BK DRIVER DOOR LOCK SENSE
2 16DG/BK DRIVER DOOR UNLOCK SENSE
DOOR LOCK MOTOR/AJAR SWITCH ASSEMBLY-DRIVER C2
CAV CIRCUIT FUNCTION
1 16BK/RD DRIVER DOOR UNLOCK DRIVER
2 16BL/RD DRIVER DOOR LOCK DRIVER
DOOR LOCK MOTOR/AJAR SWITCH ASSEMBLY-LEFT SLIDING C1
CAV CIRCUIT FUNCTION
1 16BK/RD PASSENGER DOORS UNLOCK DRIVER (+)
2 16BL/RD PASSENGER DOORS LOCK DRIVER (+)
DOOR LOCK MOTOR/AJAR SWITCH ASSEMBLY-LEFT SLIDING C2
CAV CIRCUIT FUNCTION
3 16YL/WT LEFT SLIDING DOOR LOCK SENSE
4 16DG/BK LEFT SLIDING DOOR UNLOCK SENSE
DOOR LOCK MOTOR/AJAR SWITCH ASSEMBLY-PASSENGER C1
CAV CIRCUIT FUNCTION
1 20YL/BL PASSENGER FRONT DOOR LOCK SENSE
2 20DG/BL/WT PASSENGER FRONT DOOR UNLOCK SENSE
8W - 80 - 30 8W-80 CONNECTOR PIN-OUTS VA
