NOTE: When turning spindle of riveting tool, be
sure that pins of riveted link are inserted into holes
of outer plate (Fig. 82).
(16) Screw in spindle of riveting tool until firm
resistance is felt (Fig. 82).
(17) Remove riveting tool.
(18) Turn over moving assembly insert (D8) to the
riveting profile.
(19) Position riveting tool exactly over middle of
pin.
(20) Tighten riveting tool spindle to end of travel.
(21) Repeat procedure for both riveting pins (Fig.
83).
(22) Inspect riveting, re-rivet if required (Fig. 84).
(23) Install camshaft sprocket with timing chain
retained onto camshaft. Tighten camshaft bolts to
18N·m (159 lbs.in.).

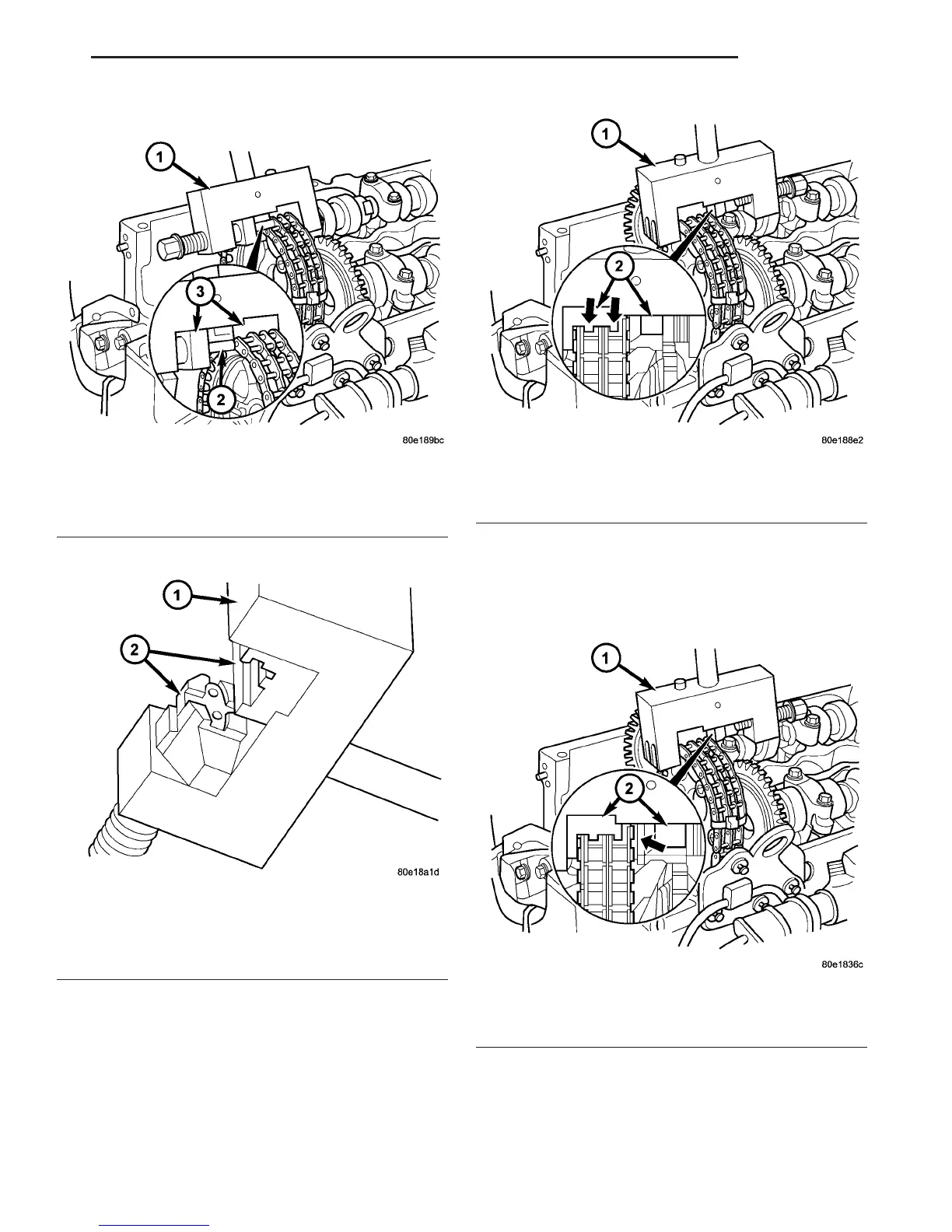

Fig. 80 PRESSING IN NEW RIVETED LINK
1 - SPECIAL TOOL #8947
2 - NEW RIVETED LINK
3 - SPECIAL TOOL #8952
Fig. 81 INSTALLING RIVETING INSERTS INTO
RIVETING TOOL
1 - SPECIAL TOOL #8947
2 - SPECIAL TOOL #8949
Fig. 82 INSTALLING LINK OUTER PLATE
1 - SPECIAL TOOL #8947
2 - SPECIAL TOOL #8949
Fig. 83 RIVETING LINKS OF THE RIVETED LINK
1 - SPECIAL TOOL #8947
2 - SPECIAL TOOL #8949
VA ENGINE 9 - 69
TIMING BELT/CHAIN AND SPROCKETS (Continued)
