INSTALLATION
(1) Grasp the license plate lamp housing firmly in
one hand, then engage the bulb between the bulb
holders with the other hand (Fig. 33).
(2) Reinstall the license plate lamp unit to its
mounting location. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING - EXTERIOR/LICENSE PLATE
LAMP UNIT - INSTALLATION).
(3) Reconnect the battery negative cable.
LICENSE PLATE LAMP UNIT
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Using hand pressure, press the right side of
the license plate lamp housing toward the left
against the spring pressure of the retaining clip, then
pull the right side of the lamp downward to disen-
gage it from the mounting hole (Fig. 34).
(3) Pull the license plate lamp housing slightly to
the right to disengage the left side of the unit from
the mounting hole.
(4) Disconnect the one or two vehicle wire harness
connections from the terminals on the back of the
license plate lamp unit.
(5) Remove the license plate lamp unit from the
vehicle.
INSTALLATION
(1) Position the license plate lamp unit to the
mounting hole on the vehicle (Fig. 34).
(2) Reconnect the one or two vehicle wire harness
connections to the terminals on the back of the
license plate lamp unit.
(3) Engage the left side of the license plate lamp
unit into the left side of the mounting hole.
(4) Using hand pressure, press the right side of
the license plate lamp housing toward the left
against the spring pressure of the retaining clip, then
push the right side of the lamp upward to engage it
into the right side of the mounting hole.
(5) Reconnect the battery negative cable.
LOW BEAM HEADLAMP BULB
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Disengage and swing the retainers that secure
the front lamp unit rear cover to each side of the
lamp housing and remove the cover (Fig. 35).

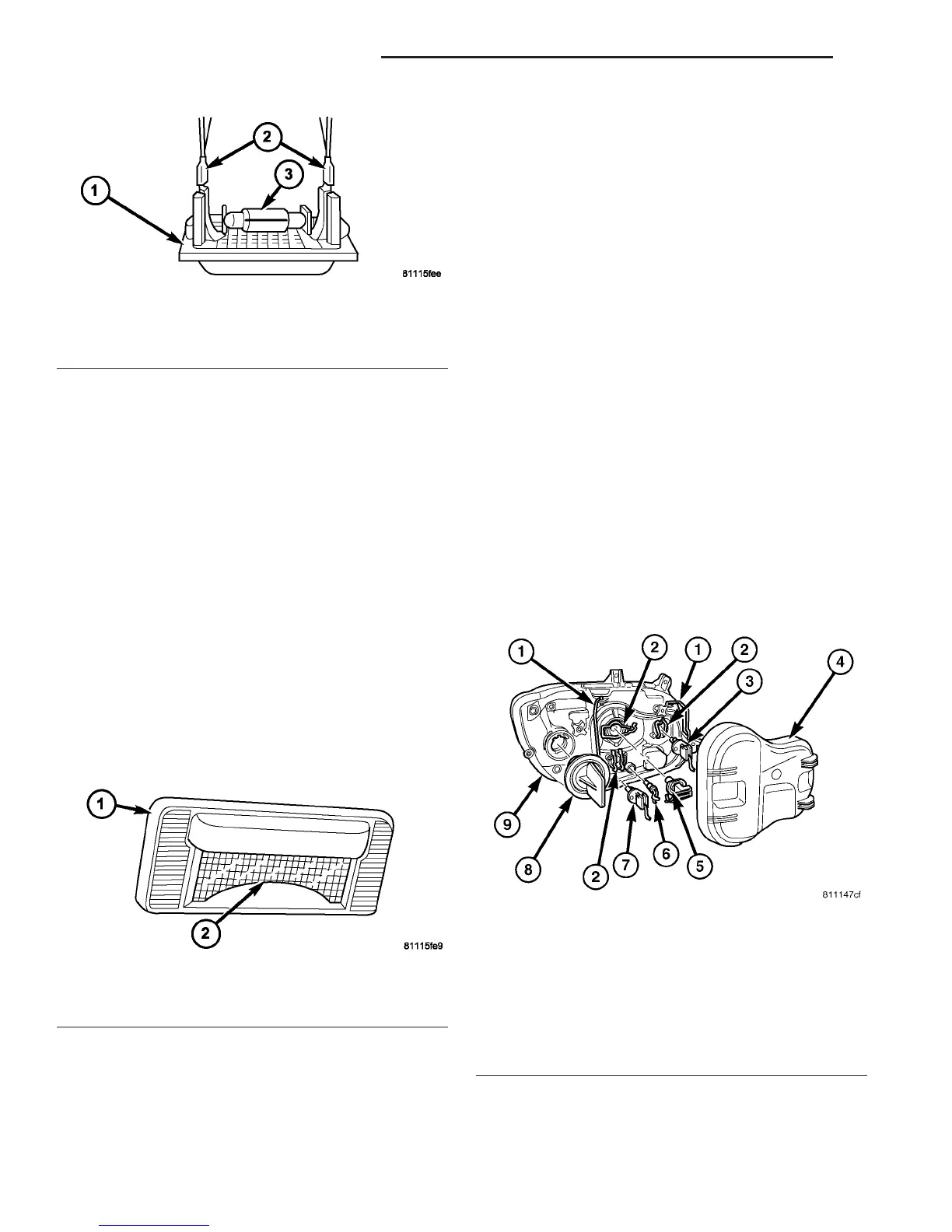

Fig. 33 License Plate Lamp Bulb Remove/Install
1 - LAMP HOUSING
2 - WIRE HARNESS CONNECTOR (1 or 2)
3 - BULB
Fig. 34 License Plate Lamp Unit Remove/Install
1 - LAMP HOUSING
2 - LENS
Fig. 35 Front Lamp Unit Bulbs Remove/Install
1 - COVER RETAINER (2)
2 - BULB RETAINER (3)
3 - FOG LAMP BULB (OPTIONAL)
4 - COVER
5 - LOW BEAM BULB
6 - POSITION BULB
7 - HIGH BEAM BULB
8 - TURN/PARK/SIDE MARKER BULB
9 - FRONT LAMP UNIT
8L - 18 LAMPS/LIGHTING - EXTERIOR VA
LICENSE PLATE LAMP BULB (Continued)
