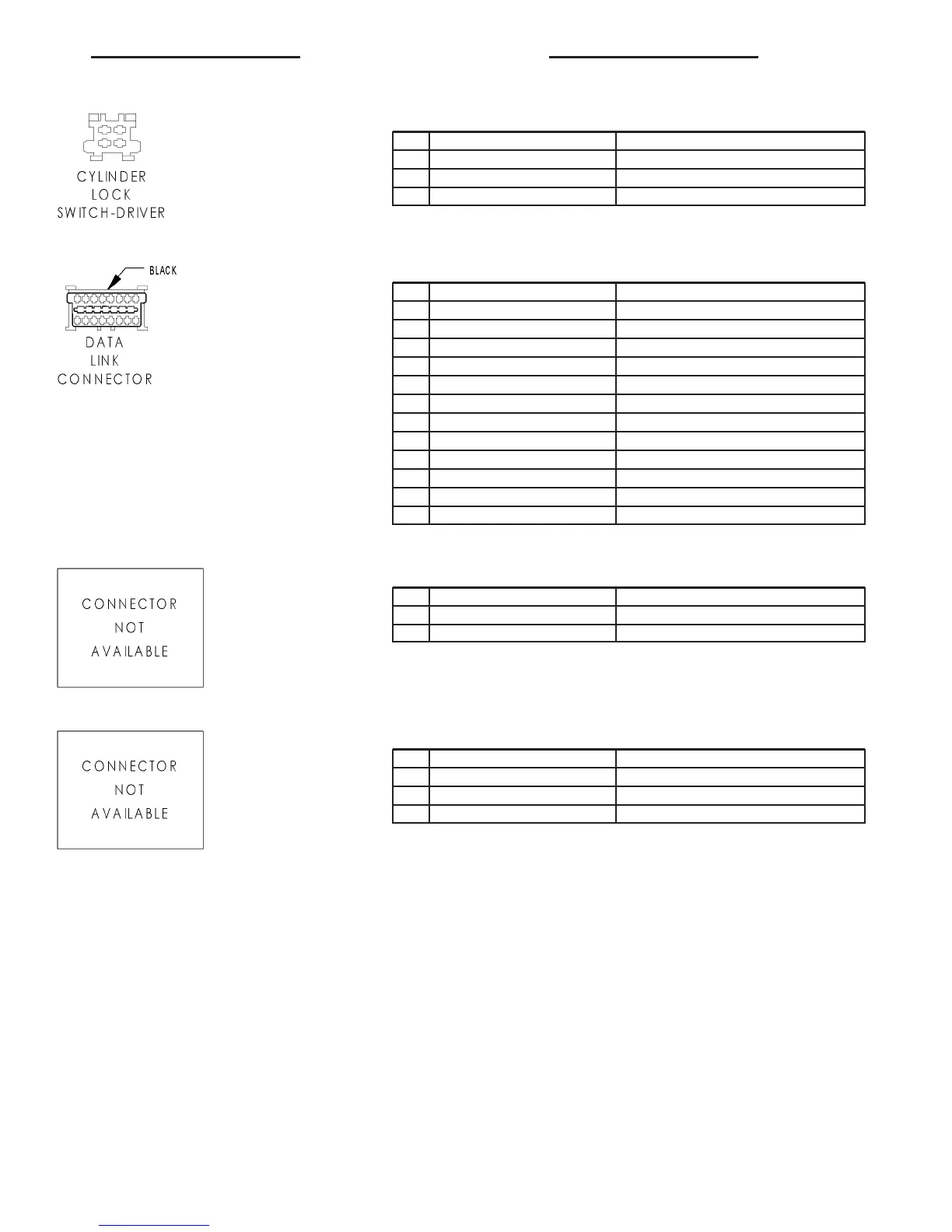

CYLINDER LOCK SWITCH-DRIVER
CAV CIRCUIT FUNCTION
1 16BK DRIVER CYLINDER UNLOCK SENSE
3 16BR GROUND
4 16RD DRIVER CYLINDER LOCK SENSE
DATA LINK CONNECTOR - BLACK
CAV CIRCUIT FUNCTION
1 20WT/DG K-SKREEM
3 20DG/GY ENGINE RPM
4 20BR GROUND
5 20BR GROUND
7 18BL/YL K-ECM
8 20BK/BL/DG FUSED IGNITION SWITCH OUTPUT (RUN-START)
9 20BL/BK K-ABS/SHIFTER ASSEMBLY
11 20BL K-TCM
12 20GY/DG/RD K-CTM/SSM
13 20BK/RD K-ACM
15 20WT/GY K-IC/ATC/HBM/CHM
16 20RD/YL FUSED B(+)
DIFFERENTIAL LOCK SOLENOID VALVE
CAV CIRCUIT FUNCTION
1 18VT/YL DIFFERENTIAL LOCK SOLENOID CONTROL
2 18BR GROUND
DOME LAMP
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD/YL FUSED B(+)
3 16BR/WT FRONT COURTESY LAMPS CONTROL
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 29
