INSIDE HANDLE ACTUATOR
REMOVAL
(1) Remove the trim plug. (Fig. 2)
(2) Remove screw and remove handle.
INSTALLATION
(1) Install the handle and screw.
(2) Tighten screw to 10 N·m (89 in. lbs.).
(3) Install trim plug.
UPPER ROLLER ARM
REMOVAL
(1) Using a grease pencil or equivalent, mark posi-
tion of roller arm to aid installation.
(2) Support door with suitable device.
(3) Remove the bolts. (Fig. 3)
(4) Slide roller arm towards rear of vehicle and
remove from back of track.
INSTALLATION
(1) Install roller arm into upper track from back.
(2) Position roller arm on door and install the
bolts.
(3) Tighten bolts to 25 N·m (18 ft. lbs.).
(4) Adjust door as necessary. (Refer to 23 - BODY/
DOORS - SLIDING/SLIDING DOOR - ADJUST-
MENTS)
CENTER ROLLER ARM
REMOVAL
(1) Remove trim cover. (Fig. 4)
(2) Remove trim panel if necessary. (Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL -
REMOVAL)
(3) Remove rubber cover.
(4) Using a grease pencil or equivalent, mark the
horizontal position of the arm at the arrow.
(5) Support door with suitable lifting device.
(6) Remove bolt and remove roller arm from door.
(7) Remove roller arm from center guide track.

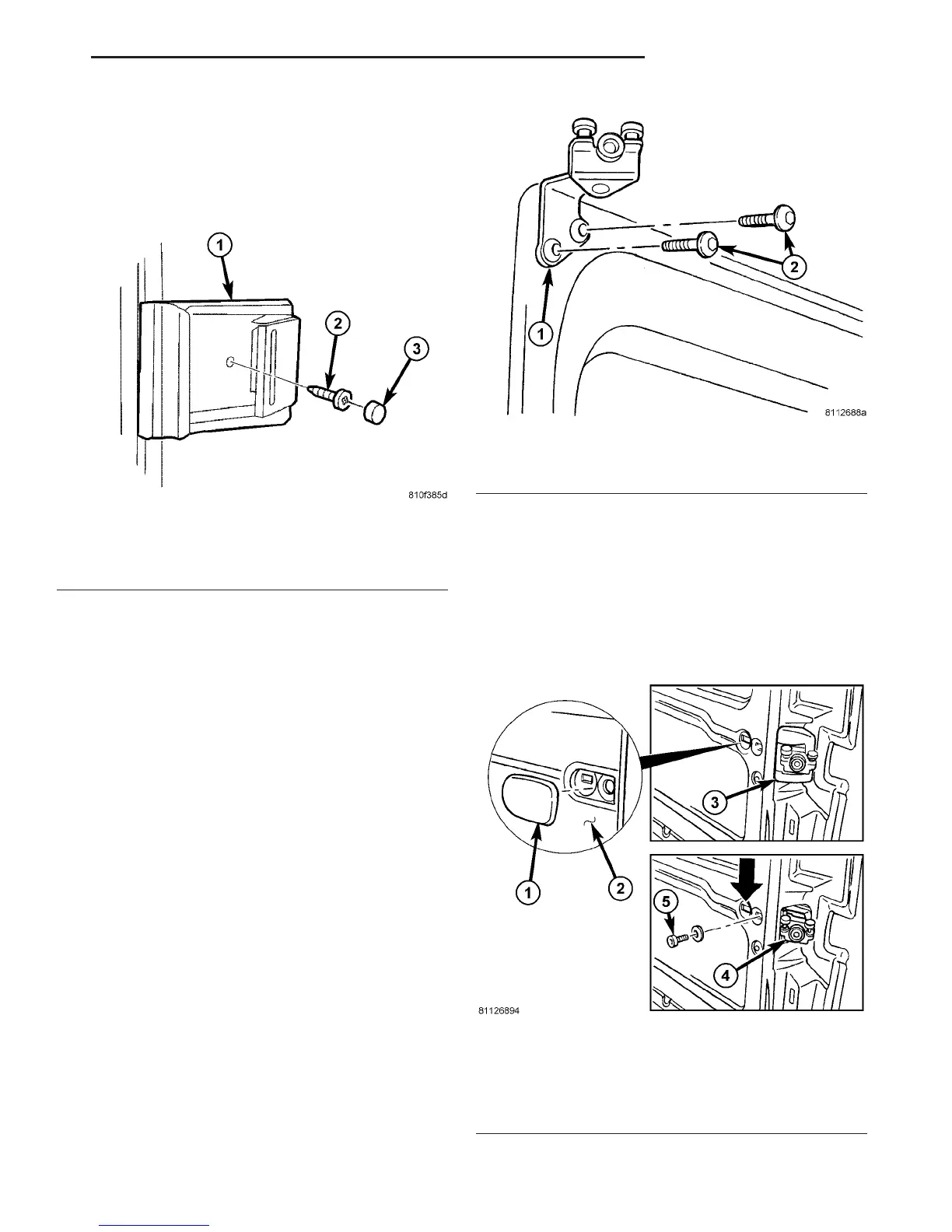

Fig. 2 INTERIOR HANDLE
1 - HANDLE
2 - SCREW
3 - TRIM PLUG
Fig. 3 UPPER ROLLER ARM
1 - ROLLER ARM
2 - BOLTS
Fig. 4 CENTER ROLLER ARM
1 - TRIM COVER
2 - SLIDING DOOR
3 - CENTER ROLLER ARM RUBBER COVER
4 - CENTER ROLLER ARM
5 - BOLT
VA DOORS - SLIDING 23 - 37
