CHARGING SYSTEM
SPECIFICATIONS
TORQUE – 2.7L DIESEL ................17
SPECIAL TOOLS .......................17
GENERATOR
DESCRIPTION .........................18
OPERATION ...........................18
REMOVAL .............................18
INSTALLATION .........................18
GENERATOR DECOUPLER PULLEY
DESCRIPTION .........................19
OPERATION ...........................19
DIAGNOSIS AND TESTING - GENERATOR
DECOUPLER .........................19
REMOVAL .............................20
INSTALLATION .........................21
VOLTAGE REGULATOR
DESCRIPTION .........................23
CHARGING SYSTEM
SPECIFICATIONS
TORQUE – 2.7L DIESEL
DESCRIPTION N-m Ft. Lbs. In. Lbs.
B+ Terminal Nut at Top of Generator 13 - 115
Generator Mounting Bolts/Nut 54 40 -
Rear Generator Support Bracket Bolts (to engine) 28 - 250
Generator Decoupler 110 81 -

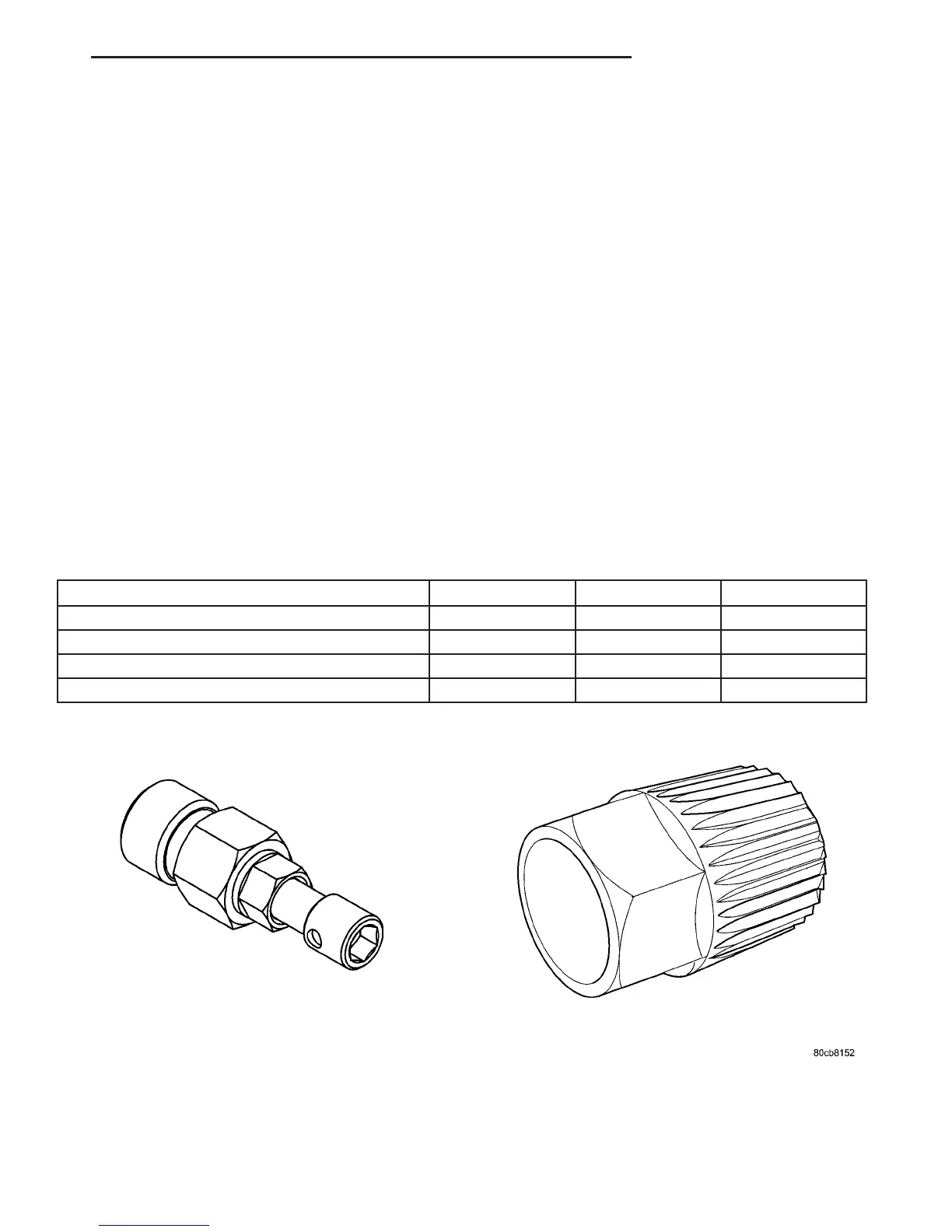

SPECIAL TOOLS
GENERATOR DECOUPLER TOOL #8433
GENERATOR DECOUPLER TOOL #8823
VA CHARGING SYSTEM 8F - 17
