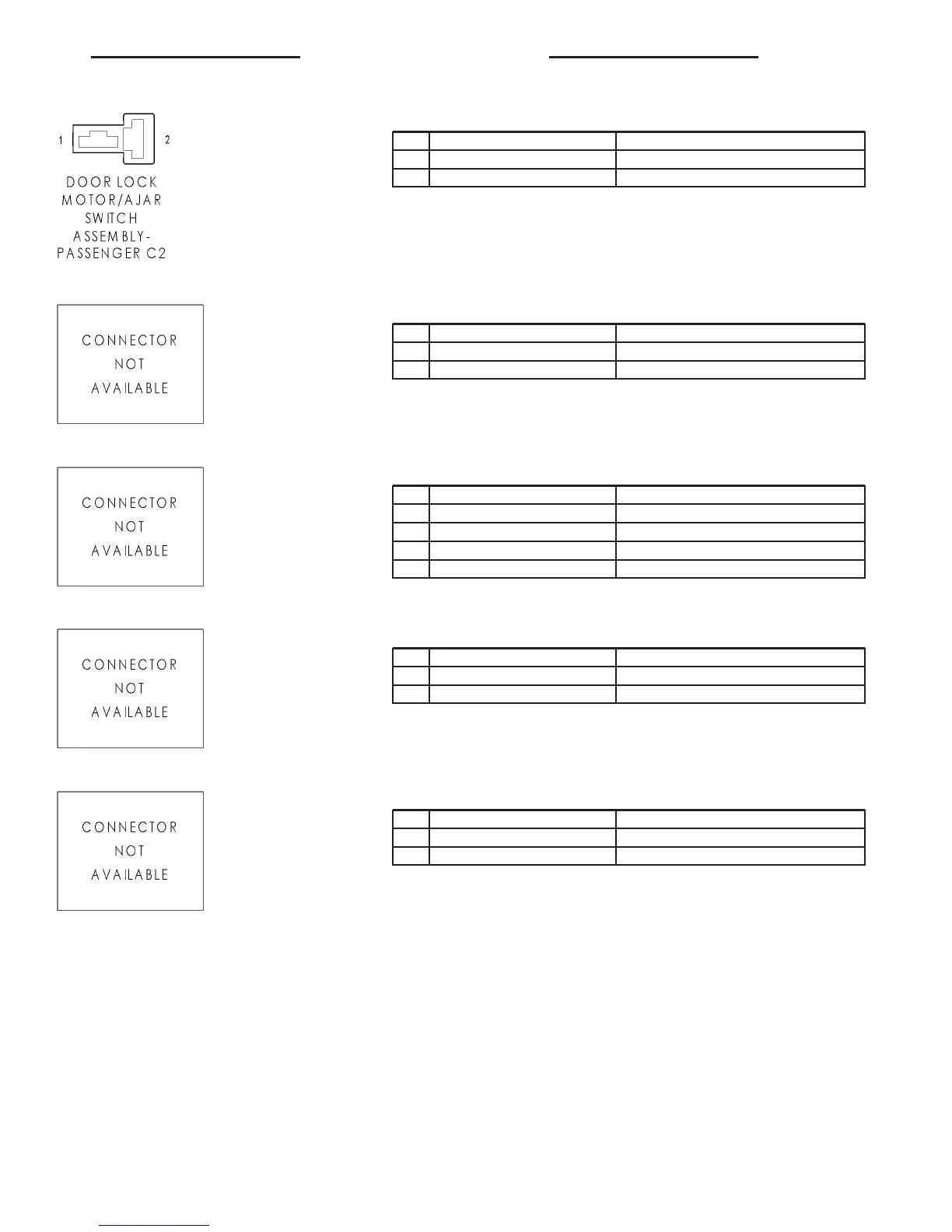

DOOR LOCK MOTOR/AJAR SWITCH ASSEMBLY-PASSENGER C2
CAV CIRCUIT FUNCTION
1 16BK/RD PASSENGER DOORS UNLOCK DRIVER (+)
2 16BL/RD PASSENGER DOORS LOCK DRIVER (+)
DOOR LOCK MOTOR/AJAR SWITCH ASSEMBLY-REAR C1
CAV CIRCUIT FUNCTION
1 16BK/RD PASSENGER DOORS UNLOCK DRIVER (+)
2 16BL/RD PASSENGER DOORS LOCK DRIVER (+)
DOOR LOCK MOTOR/AJAR SWITCH ASSEMBLY-REAR C2
CAV CIRCUIT FUNCTION
3 16YL/BK (CARGO VAN) REAR DOOR LOCK SENSE
4 16DG/RD (CARGO VAN) REAR DOOR UNLOCK SENSE
4 16YLBK (PASSENGER VAN) REAR DOOR LOCK SENSE
5 16DG/RD (PASSENGER VAN) REAR DOOR UNLOCK SENSE
DOOR LOCK MOTOR/AJAR SWITCH ASSEMBLY-RIGHT SLIDING C1
CAV CIRCUIT FUNCTION
1 16BK/RD PASSENGER DOORS UNLOCK DRIVER (+)
2 16BL/RD PASSENGER DOORS LOCK DRIVER (+)
DOOR LOCK MOTOR/AJAR SWITCH ASSEMBLY-RIGHT SLIDING C2
CAV CIRCUIT FUNCTION
3 16YL/RD RIGHT SLIDING DOOR LOCK SENSE
4 16DG/YL RIGHT SLIDING DOOR UNLOCK SENSE
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 31
