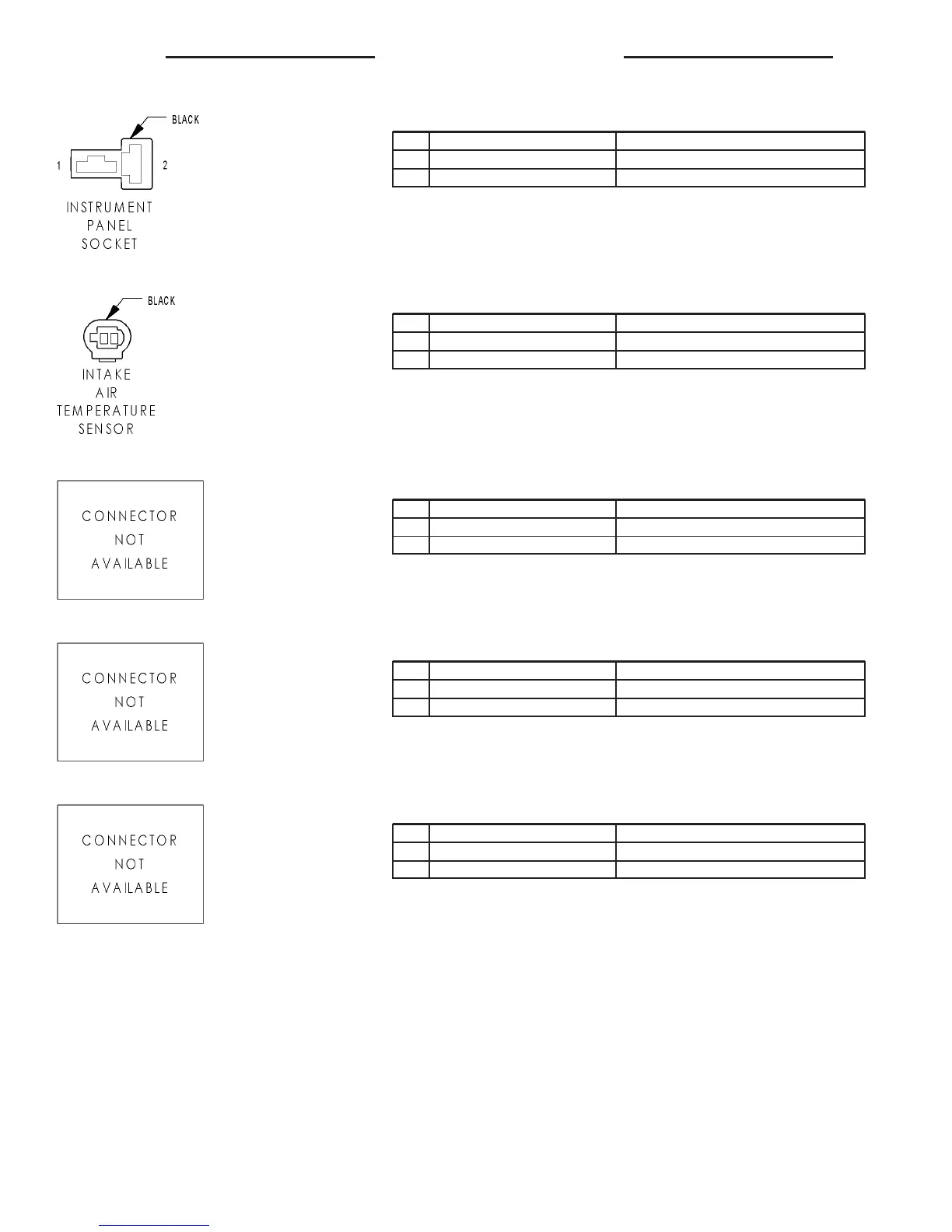

INSTRUMENT PANEL SOCKET - BLACK

CAV CIRCUIT FUNCTION

1 16BR GROUND

2 16RD FUSED B(+)

INTAKE AIR TEMPERATURE SENSOR - BLACK

CAV CIRCUIT FUNCTION

1 18BR/DG SENSOR GROUND

2 18DG/WT INTAKE AIR TEMPERATURE SENSOR SIGNAL

INTERIOR LAMP NO. 1

CAV CIRCUIT FUNCTION

1 16DG INTERIOR LAMPS DRIVER

2 16BR GROUND

INTERIOR LAMP NO. 2

CAV CIRCUIT FUNCTION

1 16DG INTERIOR LAMPS DRIVER

2 16BR GROUND

INTERIOR LAMP NO. 3

CAV CIRCUIT FUNCTION

1 16DG INTERIOR LAMPS DRIVER

2 16BR GROUND

8W - 80 - 44 8W-80 CONNECTOR PIN-OUTS VA
