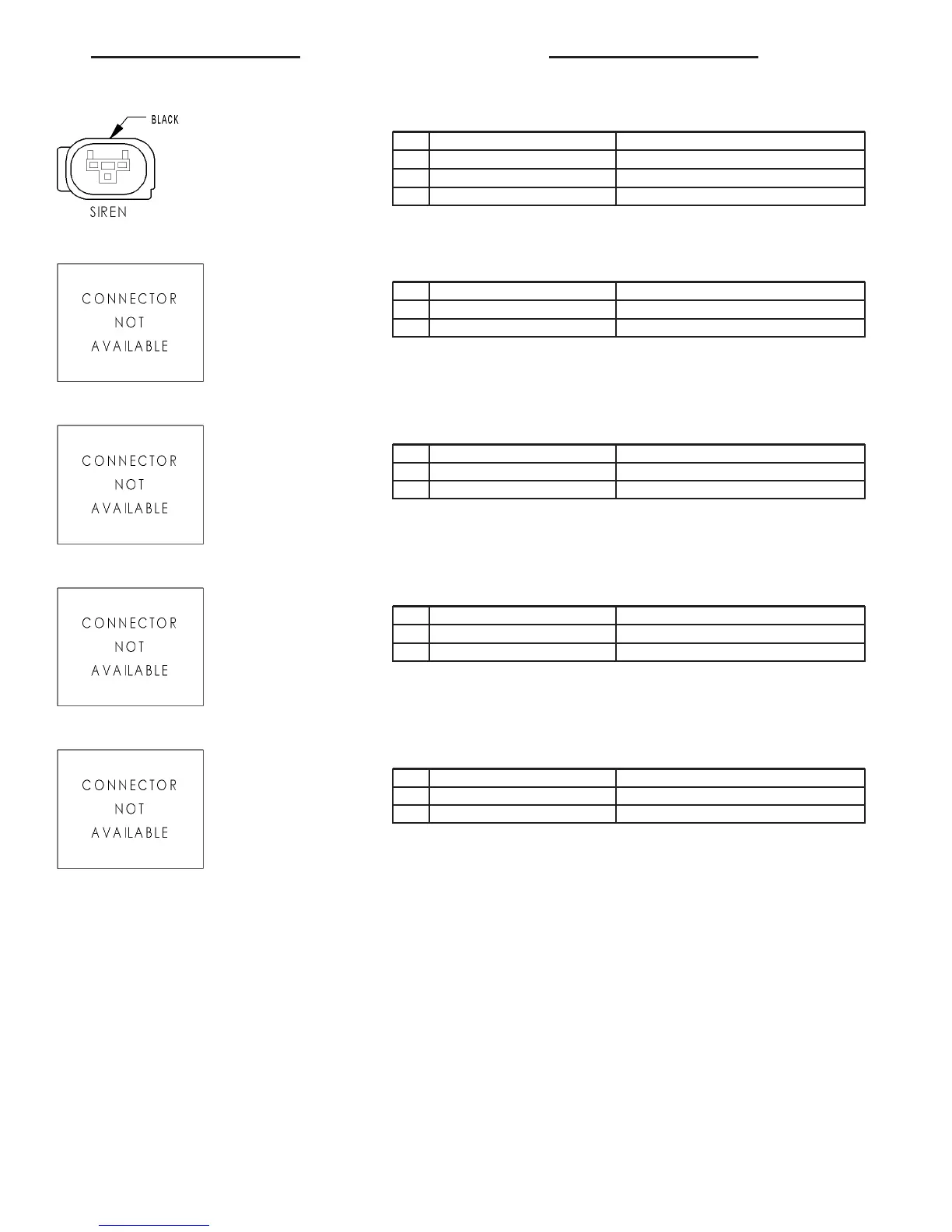

SIREN - BLACK
CAV CIRCUIT FUNCTION
1 18RD/DG FUSED B(+)
2 18BR GROUND
3 18BK/BL SIREN SIGNAL CONTROL
SPEAKER-LEFT FRONT DOOR ASSEMBLY C1
CAV CIRCUIT FUNCTION
1 18BL/YL SPEAKER-LEFT FRONT DOOR ASSEMBLY C1 (+)
2 18BL/DG SPEAKER-LEFT FRONT DOOR ASSEMBLY C1 (-)
SPEAKER-LEFT FRONT DOOR ASSEMBLY C2
CAV CIRCUIT FUNCTION
1 18BR/DG SPEAKER-LEFT FRONT DOOR ASSEMBLY (+)
2 18BR SPEAKER-LEFT FRONT DOOR ASSEMBLY (-)
SPEAKER-LEFT REAR
CAV CIRCUIT FUNCTION
1 16BR/BL SPEAKER-LEFT REAR (+)
2 16WT/BL SPEAKER-LEFT REAR (-)
SPEAKER-RIGHT FRONT DOOR
CAV CIRCUIT FUNCTION
1 18BR/RD SPEAKER-RIGHT FRONT DOOR (+)
2 18BK SPEAKER-RIGHT FRONT DOOR (-)
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 59
