(3) Remove the four screws and remove the foam
trim support. (Fig. 2)
INSTALLATION
(1) Install the foam support and install the screws.
(2) Install the a-pillar trim bottom and push the
top in toward a-pillar.
(3) Seat the retaining clips fully.
ASSIST HANDLE
REMOVAL
(1) Hold the handle in the down position and
remove the screws. (Fig. 3)
INSTALLATION
(1) Install the handle and install the screws.
B-PILLAR TRIM
REMOVAL
(1) Remove the lower seat belt anchor bolt. (Fig. 4)
(2) Pull door opening weatherstrip away from
flange along the b-pillar. (Fig. 5)
(3) Using a trim stick C-4755 or equivalent,
release the trim clips and remove the trim. (Fig. 6)

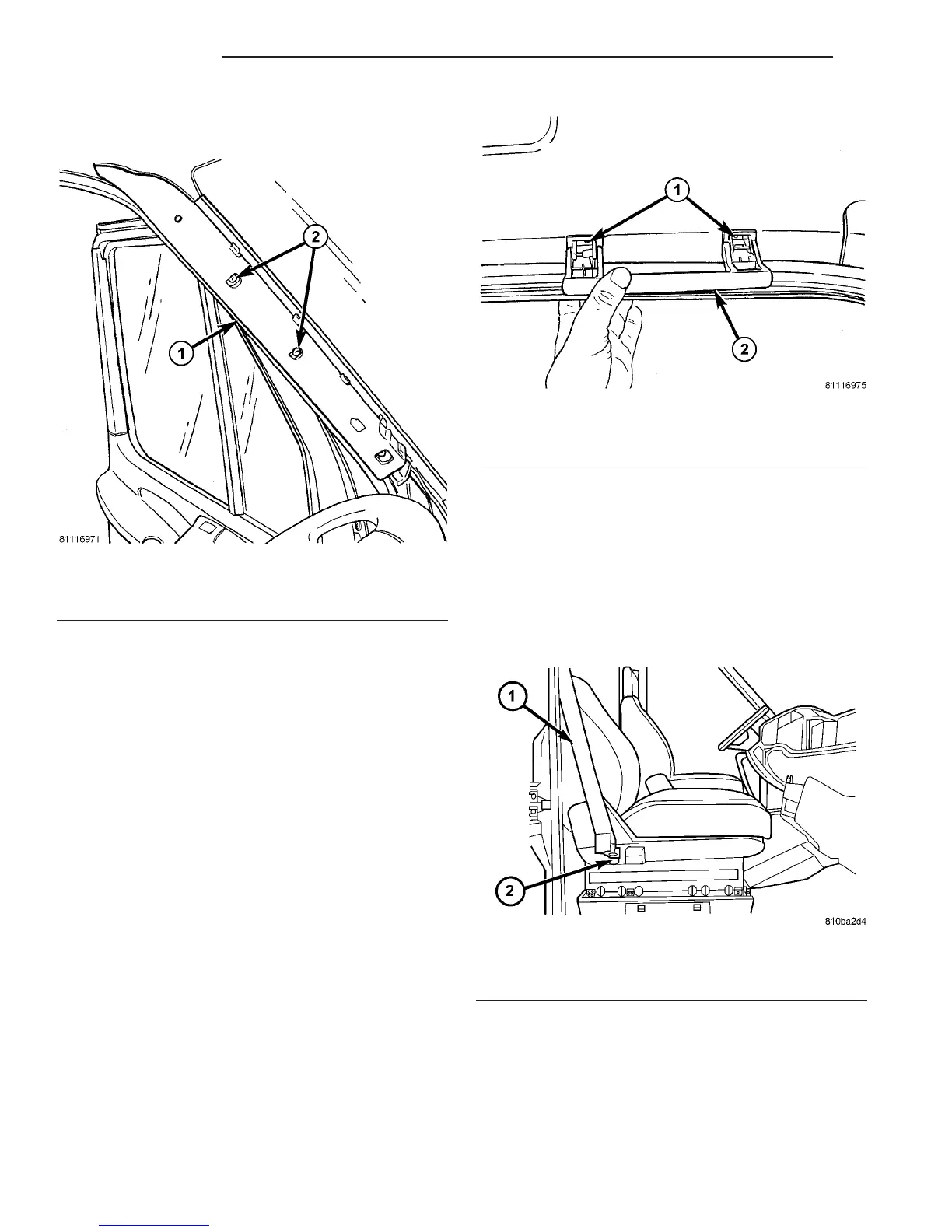

Fig. 2 A-PILLAR SUPPORT FOAM
1 - SUPPORT FOAM
2 - SCREWS (4)
Fig. 3 ASSIST HANDLE
1 - SCREWS (2)
2 - ASSIST HANDLE
Fig. 4 Front Seat Belt Lower Anchor
1 - FRONT SEAT BELT
2 - COVER AND/OR SCREW
23 - 68 INTERIOR VA
A-PILLAR TRIM (Continued)
