ASH RECEIVER/CIGAR
LIGHTER LAMP UNIT
REMOVAL
An ash receiver/cigar lighter lamp unit is optional
equipment on this model (Fig. 1). The bulb and bulb
holder are secured by an integral mount to the out-
side of the cigar lighter halo ring, and serves to illu-
minate both the translucent halo ring and the ash
receiver. A small lens that is snap-fit into the inboard
side of the ash receiver bin allows light from the
lamp on the halo ring to also illuminate the ash
receiver. The ash receiver/cigar lighter lamp is ser-
viced only as a unit with the ash receiver housing
and cigar lighter receptacle. If the lamp is faulty or
damaged, the entire ash receiver housing and cigar
lighter receptacle unit must be replaced. (Refer to 23
- BODY/INSTRUMENT PANEL/ASH RECEIVER -
REMOVAL).
INSTALLATION
An ash receiver/cigar lighter lamp unit is optional
equipment on this model (Fig. 1). The bulb and bulb
holder are secured by an integral mount to the out-
side of the cigar lighter halo ring, and serves to illu-
minate both the translucent halo ring and the ash
receiver. A small lens that is snap-fit into the inboard
side of the ash receiver bin allows light from the
lamp on the halo ring to also illuminate the ash
receiver. The ash receiver/cigar lighter lamp is ser-
viced only as a unit with the ash receiver housing
and cigar lighter receptacle. If the lamp is faulty or
damaged, the entire ash receiver housing and cigar
lighter receptacle unit must be replaced. (Refer to 23
- BODY/INSTRUMENT PANEL/ASH RECEIVER -
INSTALLATION).
CARGO/DOME LAMP BULB
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the cargo/dome lamp unit from its
mounting location, but do not disconnect the vehicle
wire harness from the lamp connector receptacle.
(Refer to 8 - ELECTRICAL/LAMPS/LIGHTING -
INTERIOR/CARGO/DOME LAMP UNIT - REMOV-
AL).
(3) Grasp the lamp housing in one hand and care-
fully pull the bulb out of the bulb holder with the
other hand (Fig. 2).
INSTALLATION
(1) Grasp the cargo/dome lamp housing in one
hand and carefully insert the bulb into the bulb
holder with the other hand (Fig. 2).
(2) Reinstall the cargo/dome lamp unit into its
mounting location. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING - INTERIOR/CARGO/DOME
LAMP UNIT - INSTALLATION).
(3) Reconnect the battery negative cable.

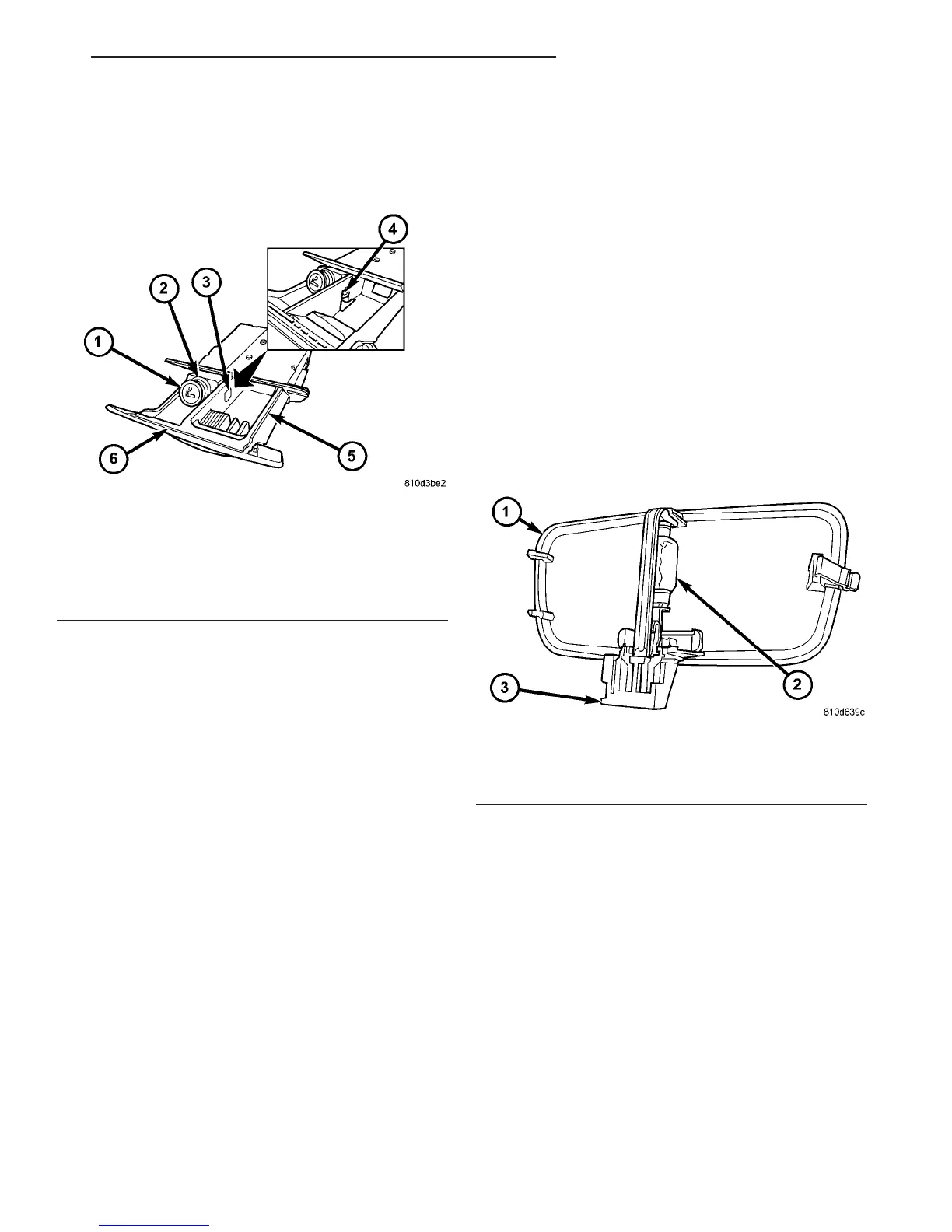

Fig. 1 Ash Receiver/Cigar Lighter Lamp Unit
1 - CIGAR LIGHTER
2 - HALO RING
3 - LENS
4 - LAMP UNIT (BIN REMOVED)
5 - ASH RECEIVER BIN
6 - ASH RECEIVER
Fig. 2 Cargo/Dome Lamp Bulb Remove/Install
1 - LAMP HOUSING
2 - BULB
3 - CONNECTOR RECEPTACLE
