BODY STRUCTURE
TABLE OF CONTENTS
page page
GAP AND FLUSH
SPECIFICATIONS .......................88
OPENING DIMENSIONS
SPECIFICATIONS .......................90
GAP AND FLUSH
SPECIFICATIONS
GAP & FLUSH DIMENSIONS INDEX
DESCRIPTION FIGURE
FRONT DOORS 1
SLIDING DOORS 2
REAR DOORS 3
NOTE:
All measurements are in mm.
LOCATION GAP FLUSH
1 Door at top. 7 ±
0.5
FLUSH
2 Door at upper b-pillar. 7 ±
0.5
Up to max 1 mm
recessed, at
rear with 1 mm
overlap (wind
noise)
3 Door at bottom. 8 ±
0.5
FLUSH
4 Door at wheelhouse. 7 ±
0.5
FLUSH
5 Door ridge at
wheelhouse and
b-pillar.
— FLUSH
6 Door at a-pillar. 8 ±
0.5
FLUSH

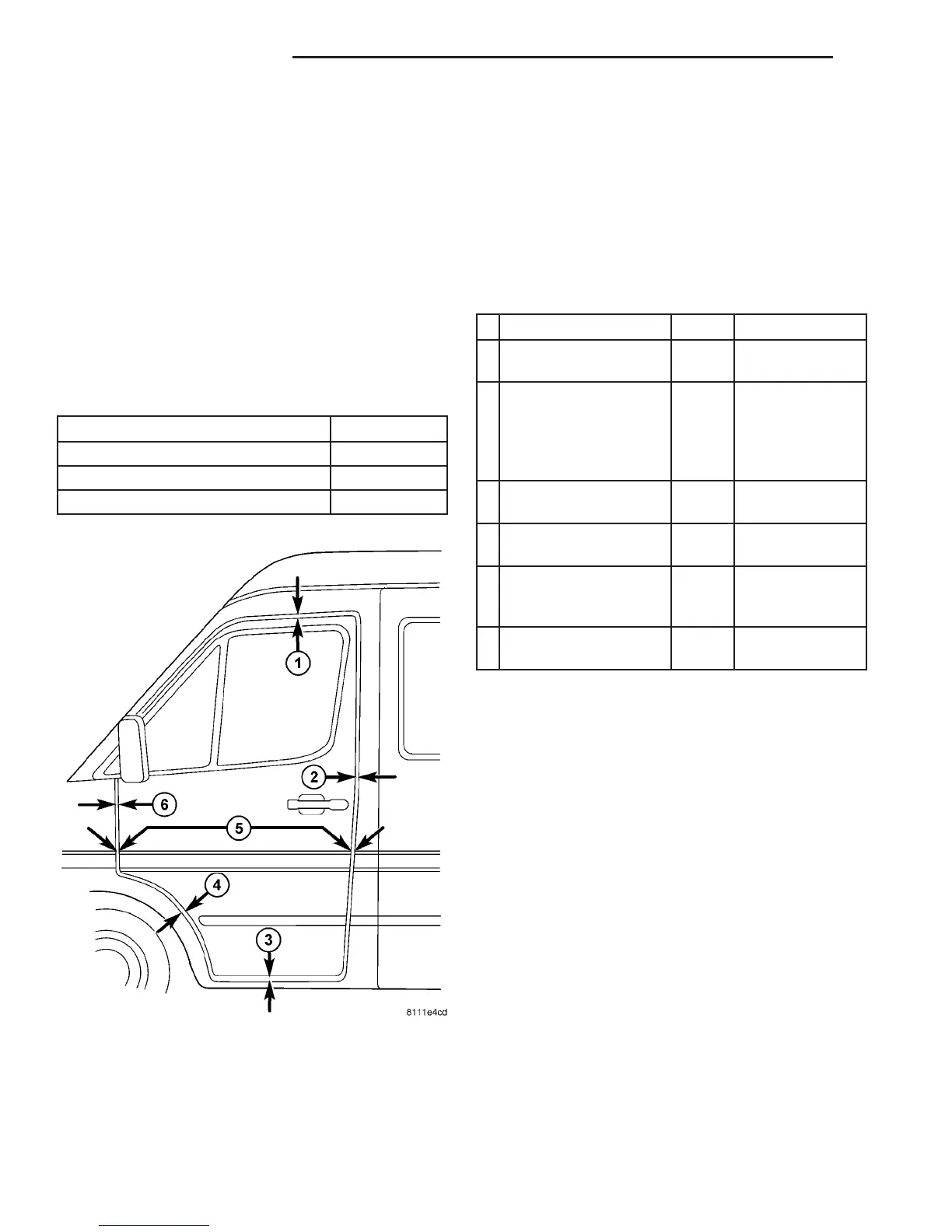

Fig. 1 FRONT DOOR
23 - 88 BODY STRUCTURE VA
